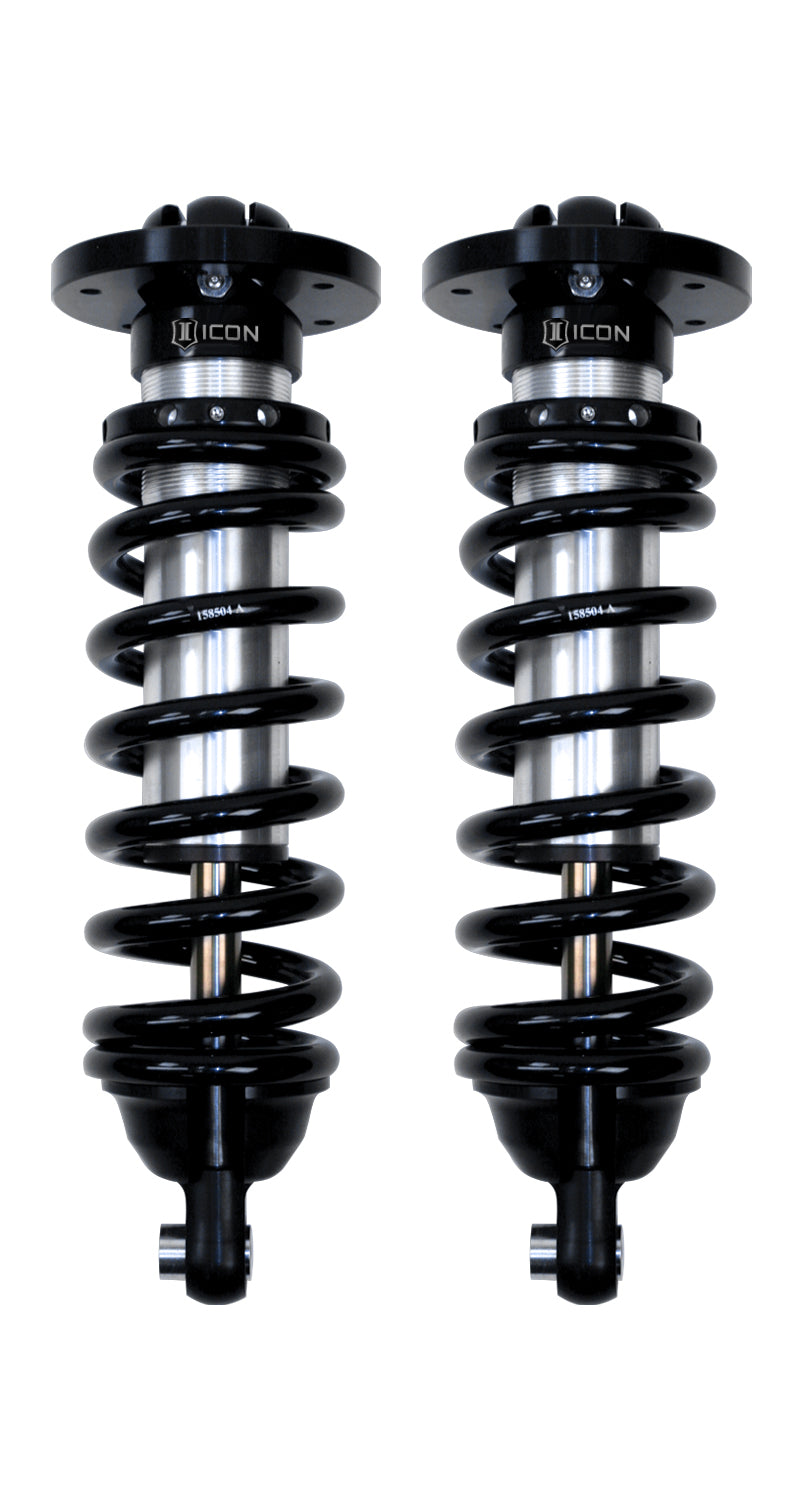

These 0 - 3 Inch Adjustable Coil-over shocks will increase the handling and ride quality of your Nissan Titan or Armada. They are preset with 2 inches of lift out of the box to level out your vehicle and give clearance of 33 Inch Tall Tires.
- Adjustable ride height from 0" - 3"
- Race shock piston with flutter stack compression valving
- Cad-plated threaded body / Optional Extreme Weather Plating
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable and re-valvable shock
- 2.5" shock diameter to prevent overheating
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103406657
-
306: Yes
-
2064: Steel
-
2329: Steel
-
3085: Single Tube
-
3096: Black
-
3390: Performance
-
7233: No
-
8703: No
-
9783: No
-
10107: 650
-
10527: No
-
10528: Yes
-
10530: Passive
-
10535: 3
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
-
Adjustable Damping: NO
-
Body Diameter: 2.5
-
California Prop 65 Warning: Yes
-
Coil Over Springs Included: Yes
-
Compressed Length: 12.15
-
Cylinder Color: Silver
-
Cylinder Finish: Cadmium Plated
-
Damping Type: Oil
-
Extended Length: 16.71
-
Gas Charged: yes
-
Lower Mount Type: Eyelet
-
Material: Aluminum
-
Maximum Lift: 3
-
Minimum Lift: 0
-
OEM Wheels & Tires Fitment: Yes
-
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
-
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
-
Remote Reservoir: NO
-
Reservoir Style: Internal
-
Self-Leveling: No
-
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
-
Shaft Diameter: 0.875
-
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
-
Shock Absorber Rod End Measuring Point: Center of Eylet
-
Spring Rate Type: Linear
-
Travel Length: 4.56
-
Upper Mount Type: Mounting Plate
-
Valving Type: Digressive
Extended Information:
-
Country of Origin: US
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 26.0000 x 13.0000 x 7.0000 inches
-
Weight: 41.0000 POUNDS
