05-07 FORD F250/F350 4.5" STAGE 2 SUSPENSION SYSTEM

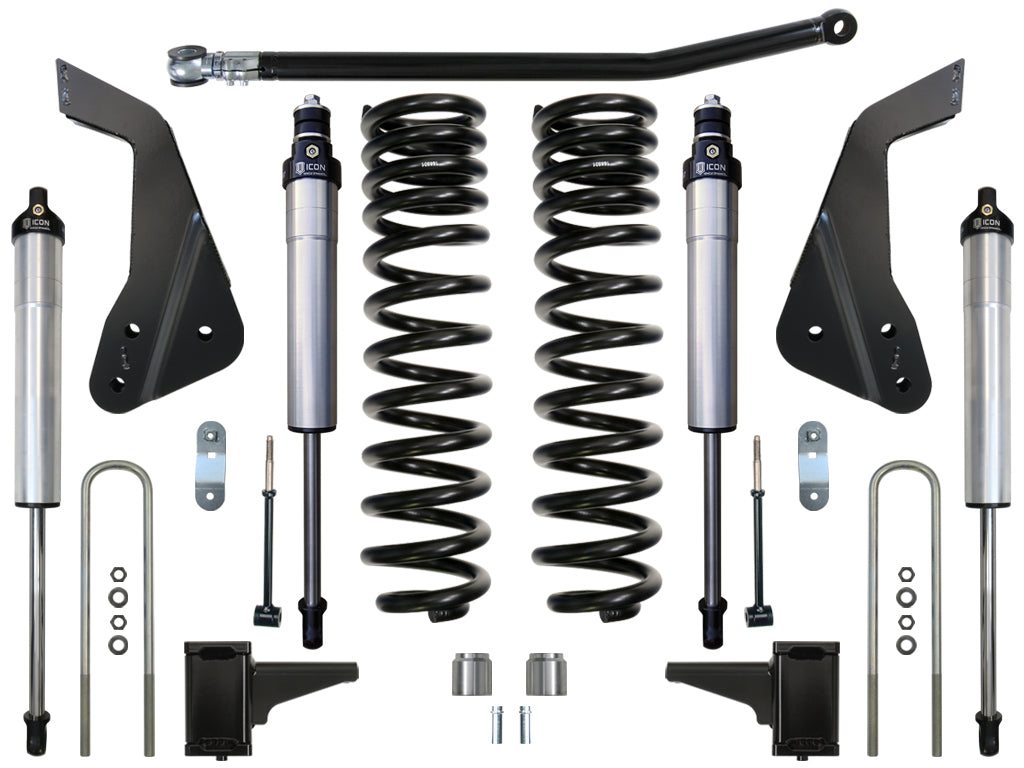

This 4.5" System for the 2005-2007 Super Duty is one the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The Dual-Rate front coil springs combined with our ICON 2.5 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks and U-bolts and our patented Adjustable Track bar giving the front end of these trucks perfect track alignment.

• 50% increase in wheel travel
• 100% bolt-on system - no drilling,cutting or welding necessary for install
• Less body roll than stock truck
• 4.5" more travel from ride height to front bump stops
• State-of-the-art dual-rate coil spring
• Lifetime guarantee that coil springs won’t sag
• Clears 35" Tall Tires & 37" Tall Tires w/ Minor Trimming
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• No change in towing capacity
• No drive shaft modifications needed

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103418568
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 4.5
• 7325: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• California Prop 65 Warning: Yes
• Dual Rate Coil Springs: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 6.0000 inches
• Weight: 200.0000 POUNDS
