05-16 FORD F-250/F-350 2.5-3" STAGE 3 COILOVER CONVERSION SYSTEM

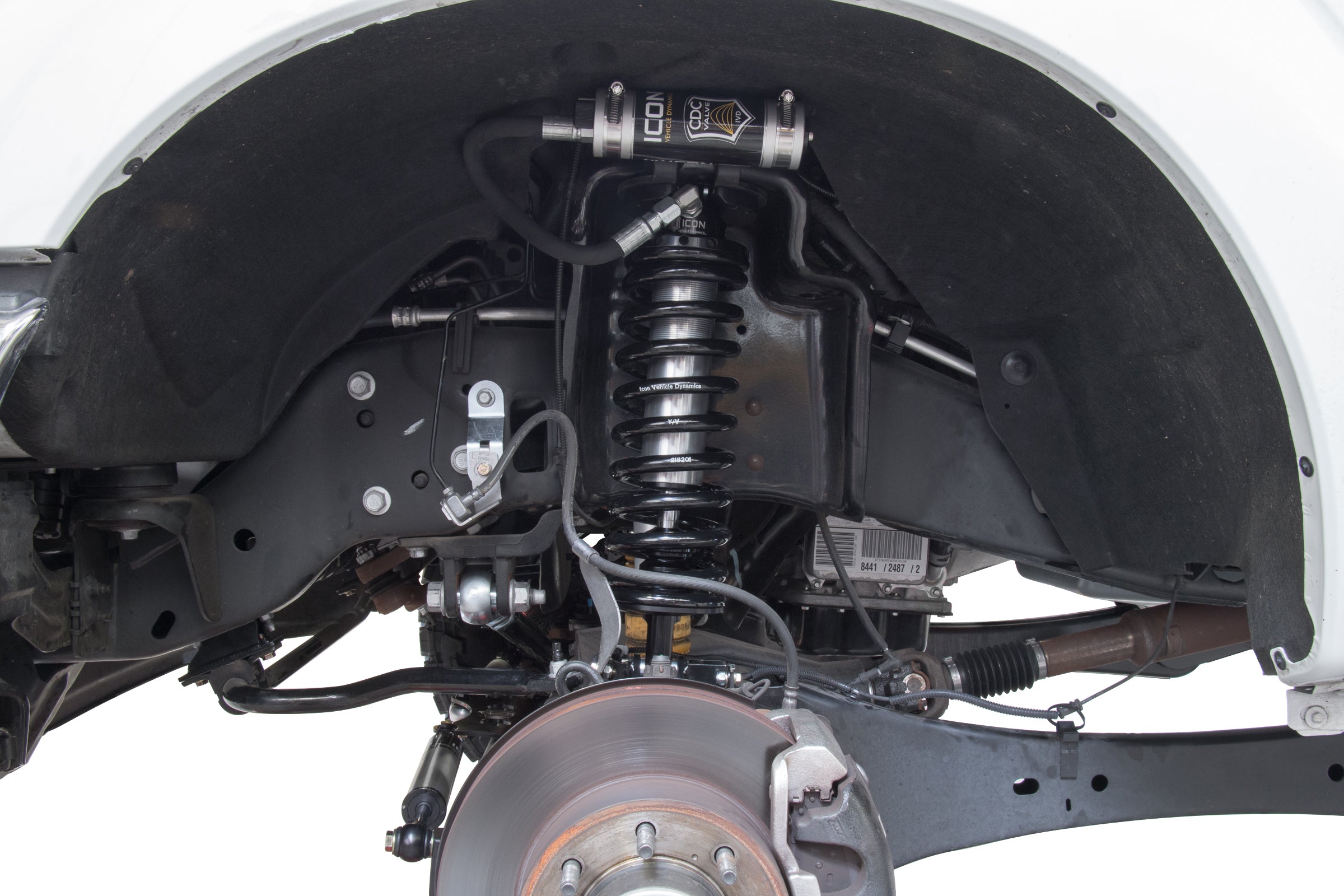

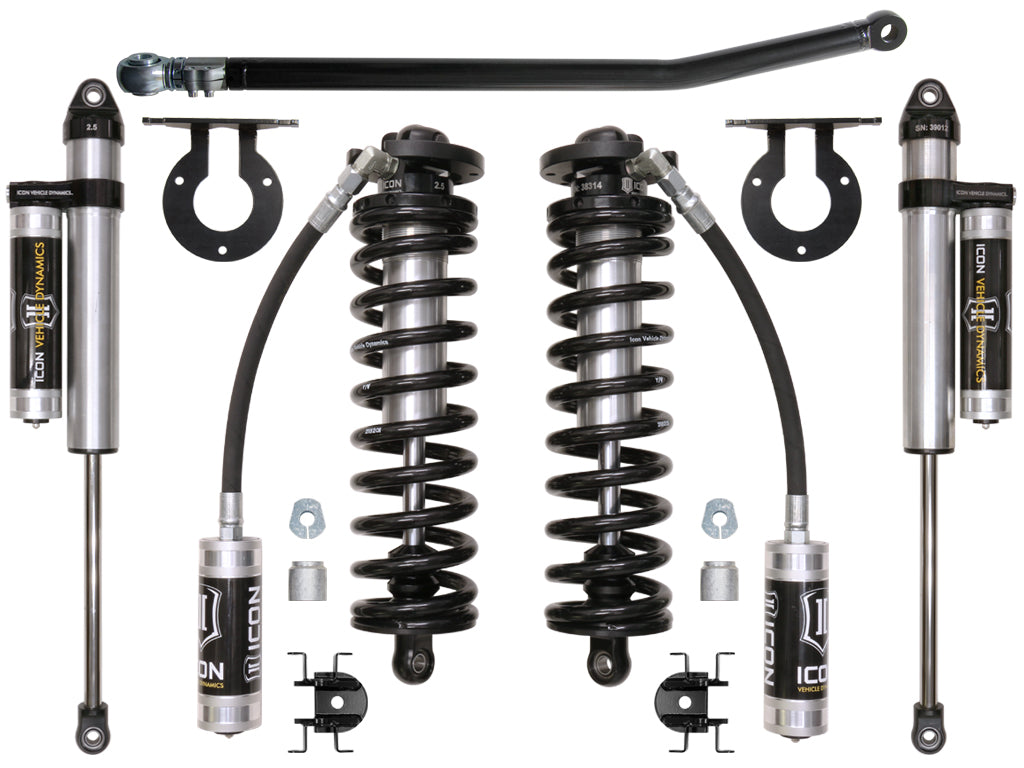

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

• FK Rod End bearings for extended longevity and minimal deflection
• Eibach coil springs guaranteed for life against sagging or breakage
• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers (2.5-3")
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Rear shocks feature anodized, one-piece impact extruded aluminum shock bodies

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103418162
• 30: Yes
• 2064: Steel
• 2371: NO
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3
• 7325: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• California Prop 65 Warning: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 112.0000 POUNDS
