Continue shopping07-21 TUNDRA RXT STAGE 3 SYSTEM
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$4,349.46
-0%
Regular price
$4,349.46
Regular price
$4,349.46
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

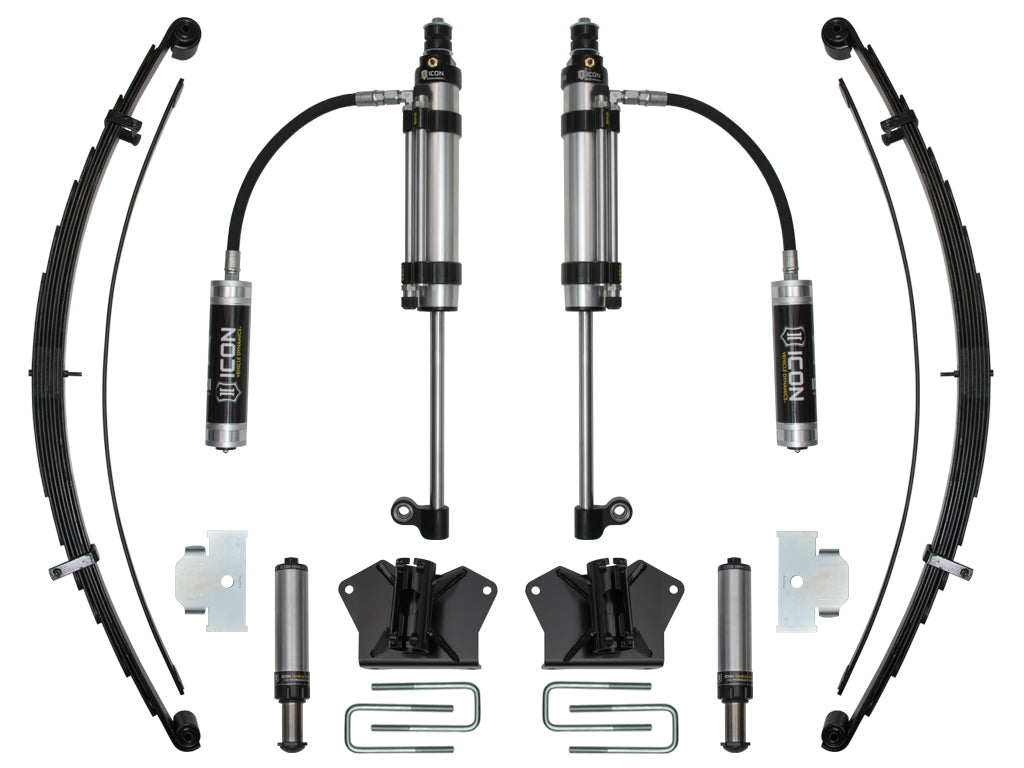

Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has spent over a year pushing the Tundra to off-road extremes to identify limiting factors in OE components and further extrapolate performance out of this vehicle. In a push to provide unparalleled ride quality and vehicle dynamics for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System is a combination of an all-new ICON multi-rate leaf spring, a hydraulic rear bump stop kit, and three RXT-specific 2.5 Aluminum Series rear shock options. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2007-2021 Toyota Tundra with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.
- ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
- ICON RXT Rear Shock: Omega Series two-tube bypass allows for 28 settings of compression and rebound damping adjustment
- ICON RXT Rear Shock: 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
- ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
- ICON RXT Rear Shock: Simple and straightforward installation
- ICON RXT Rear Shock: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
- ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
- ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
- ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
- ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
- ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1.25” CNC machined nitro steel shaft
- ICON Hydraulic Rear Bump Stop Kit: CAD plated body for maximum corrosion resistance
- ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve
- ICON Hydraulic Rear Bump Stop Kit: Operating range of 50-250 PSI
- ICON Hydraulic Rear Bump Stop Kit: Replaceable noise-reducing striker pad
- ICON Hydraulic Rear Bump Stop Kit: Fully serviceable
- ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
- ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
- ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock without sacrificing up-travel (up to 20% over stock)
- ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
- ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
- ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103417585
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 4
- 6111: 8
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- California Prop 65 Warning: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
Extended Information:
- Country of Origin: US
- Emissions : 4
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 55.0000 x 40.0000 x 19.0000 inches
- Weight: 239.0000 POUNDS
