Continue shopping07-UP GM 1500 0-2" REAR 2.0 VS IR
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$200.80
-0%
Regular price
$200.80
Regular price
$200.80
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

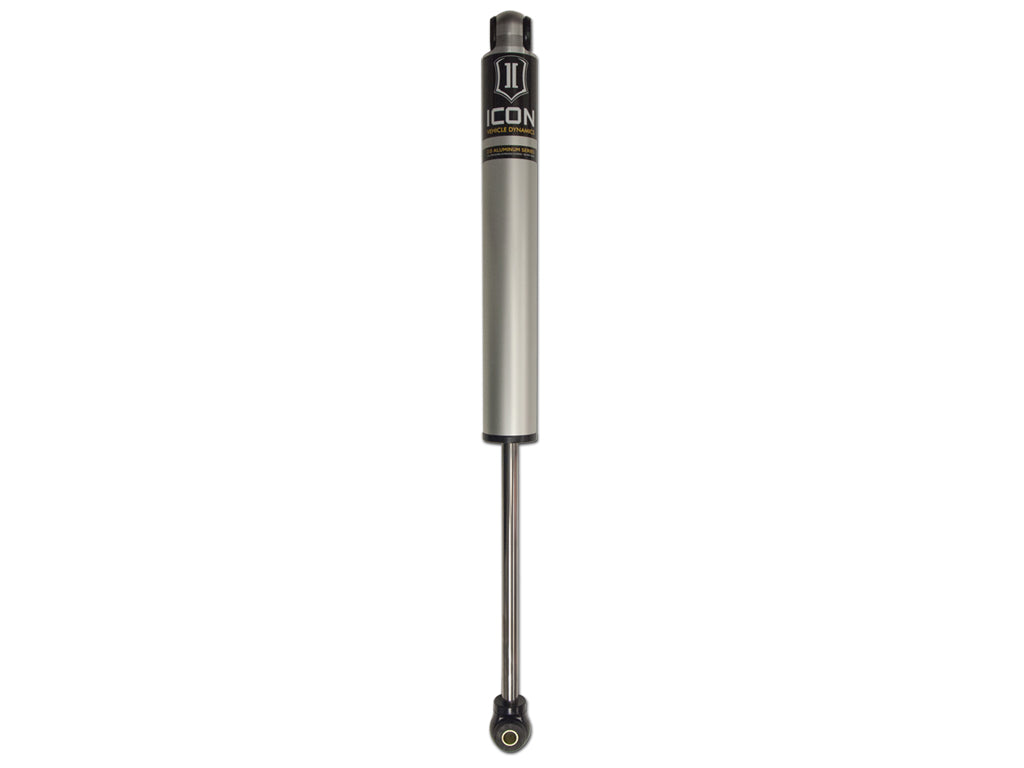

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 100% revalveable
- Nitrogen charged monotube design with internal reservoir3
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- ICON 07-23 GM 1500 0-2" REAR 2.0 VS IR
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103406053
- 17: Black
- 30: No
- 48: EYELET
- 49: EYELET
- 50: NO
- 51: Yes
- 52: 2
- 200: Anodized
- 408: CENTER OF EYELET
- 409: CENTER OF EYELET
- 621: Aluminum
- 1183: .625
- 1385: Gray
- 2329: Aluminum
- 3065: 2
- 3085: Single Tube
- 3390: Performance
- 5126: Gray
- 7233: No
- 8703: No
- 9444: No
- 9621: No
- 9783: No
- 9792: No
- 9801: 1.75
- 9908: Yes
- 10526: Digressive
- 10527: No
- 10528: No
- 10529: No
- 10530: Passive
- 10535: 2
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
- Adjustable Damping: No
- Attributed Description: ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 15.600 IN; Fully Open Length: 25.05 IN; Shock Stroke: 9.45 IN; Travel Length: 9.45 IN
- Bore Diameter: 1.75
- Bushing Color: Black
- Bushing Included: yes
- Bushing Material: Polyurethane
- California Prop 65 Warning: Yes
- Coil Over Springs Included: NO
- Configuration: Performance
- Cylinder Finish: Anodized
- Damping Type: Oil
- Dust Boot Included: No
- Dust Shield: NO
- External Reservoir: No
- Material: Aluminum
- Quantity: 1
- Remote Reservoir: NO
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shaft Diameter: 0.625
- Shaft Material: Chrome
- Suspension Type: Spring
Extended Information:
- Country of Origin: US
- Emissions : 4
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 40.0000 x 3.0000 x 3.0000 inches
- Weight: 4.0000 POUNDS
