Continue shopping08-10 FORD F250/F350 4-5.5" STAGE 4 COILOVER CONVERSION SYSTEM W RADIUS ARM
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$7,650.73
-0%
Regular price
$7,650.73
Regular price
$7,650.73
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

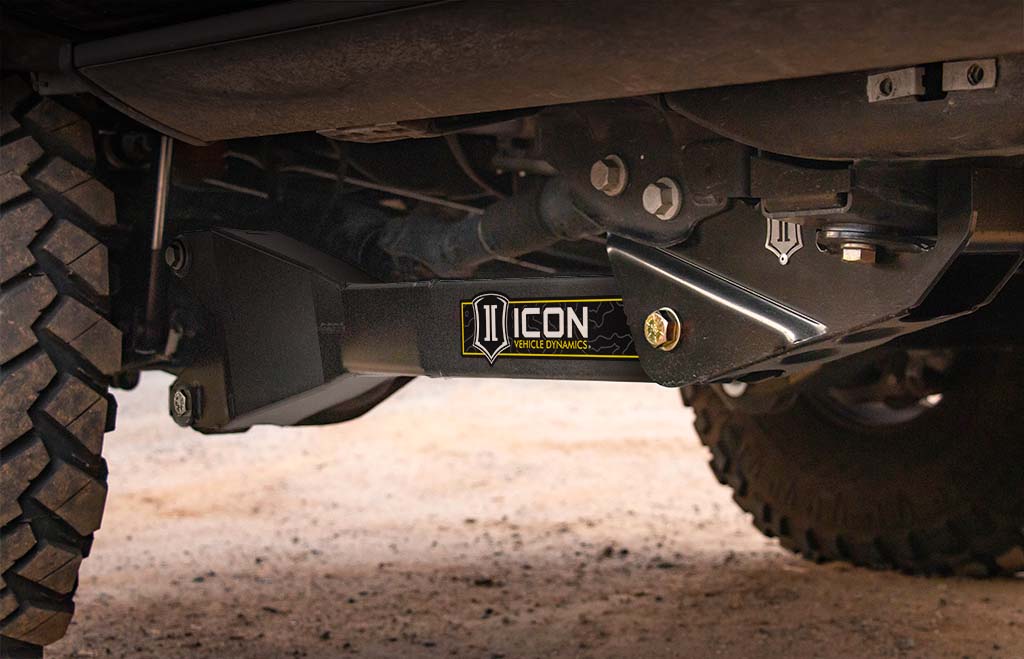

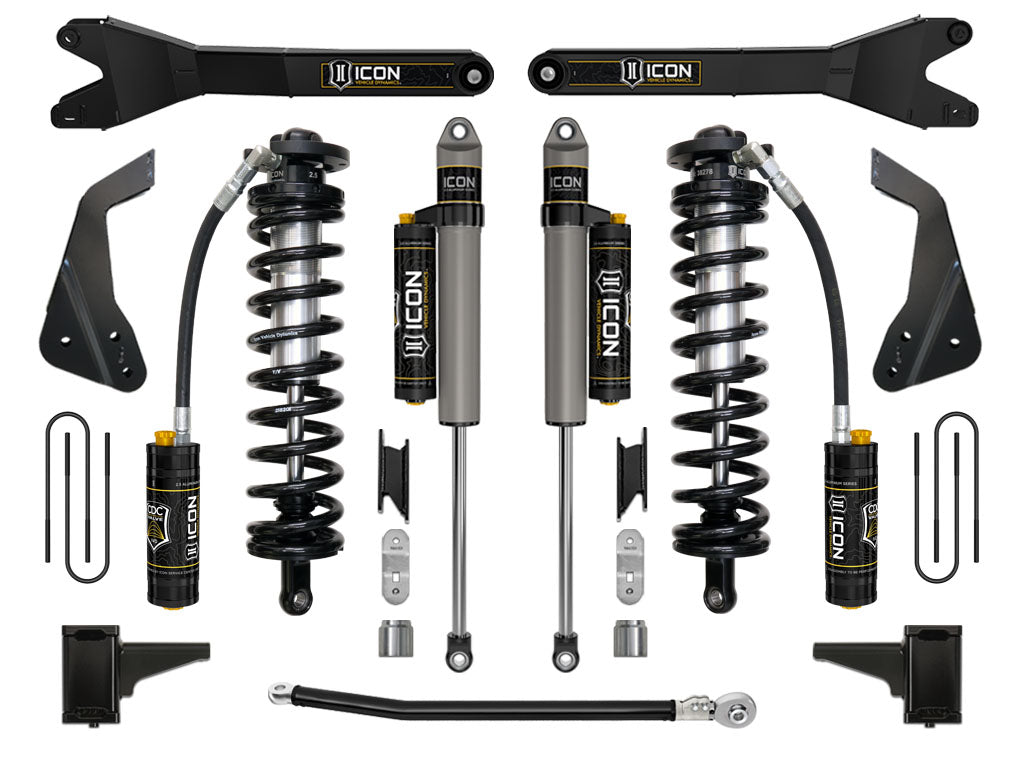

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
- Eibach coil springs guaranteed for life against sagging or breakage
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers (4-5.5")
- Increased wheel travel and ride quality over stock
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103418315
- 30: Yes
- 2064: Steel
- 2371: NO
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 5.5
- 7325: 2
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- California Prop 65 Warning: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 276.0000 POUNDS
