08-10 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM

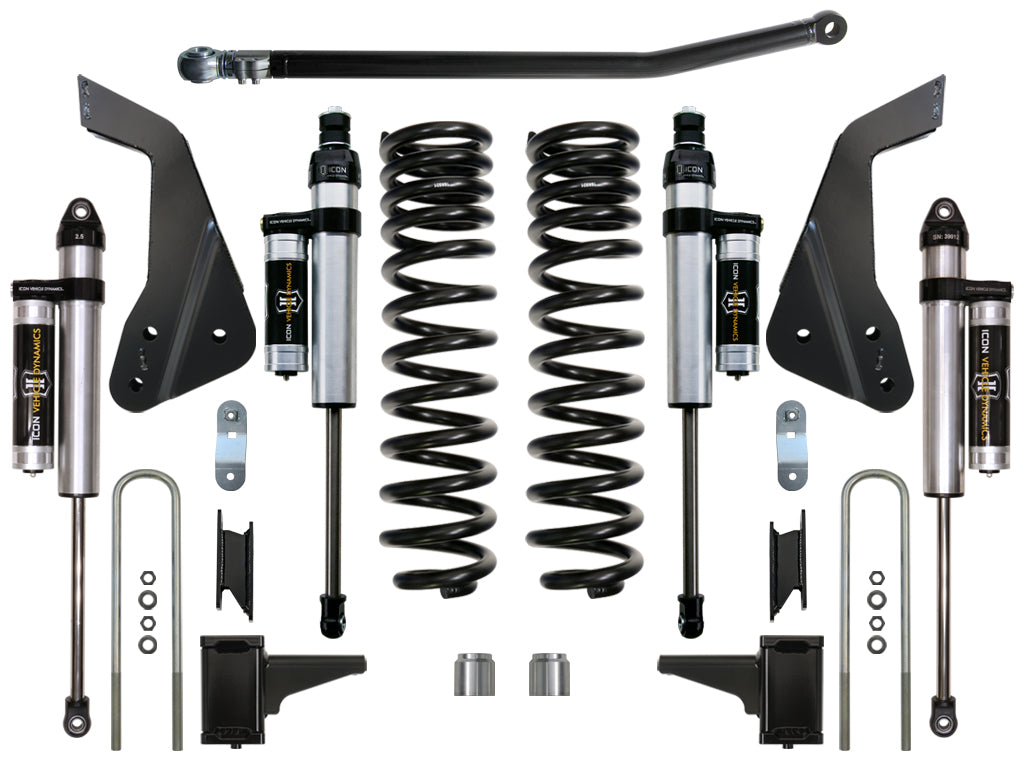

This 4.5" System for the 2008-2010 Super Duty is one of the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The dual rate front coil springs combined with our ICON 2.5 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks, U-bolts, and our patented adjustable track bar with upgraded bearing giving the front end of these trucks perfect track alignment. The Stage 3 system also upgrades the front and rear shocks to our 2.5 Aluminum Series piggyback reservoir shocks for even better ride quality and performance.

• 50% increase in wheel travel
• 100% bolt-on system - no drilling, cutting or welding necessary for install
• Less body-roll than stock truck
• 4.5" more travel from ride height to front bump stops
• Dual rate coil spring
• Lifetime guarantee that coil springs won’t sag
• Clears 35" tall tires & 37" tall tires w/ minor trimming
• No change in towing capacity
• No drive shaft modifications needed
• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103418766
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5520: 4.5
• 5782: Closed
• 5783: Closed
• 7325: 2
• 10107: 460
• 11410: 4.5
• 11411: 5
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Aftermarket Wheels: 8" Wide Wheel with 5" Backspace
• California Prop 65 Warning: Yes
• Dual Rate Coil Springs: Yes
• Front Reservoir Style: Piggyback
• Front Shock Body Diameter: 2.5
• Front Spring Rate Type: Progressive Dual Rate
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Piggyback
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 6.0000 inches
• Weight: 215.0000 POUNDS
