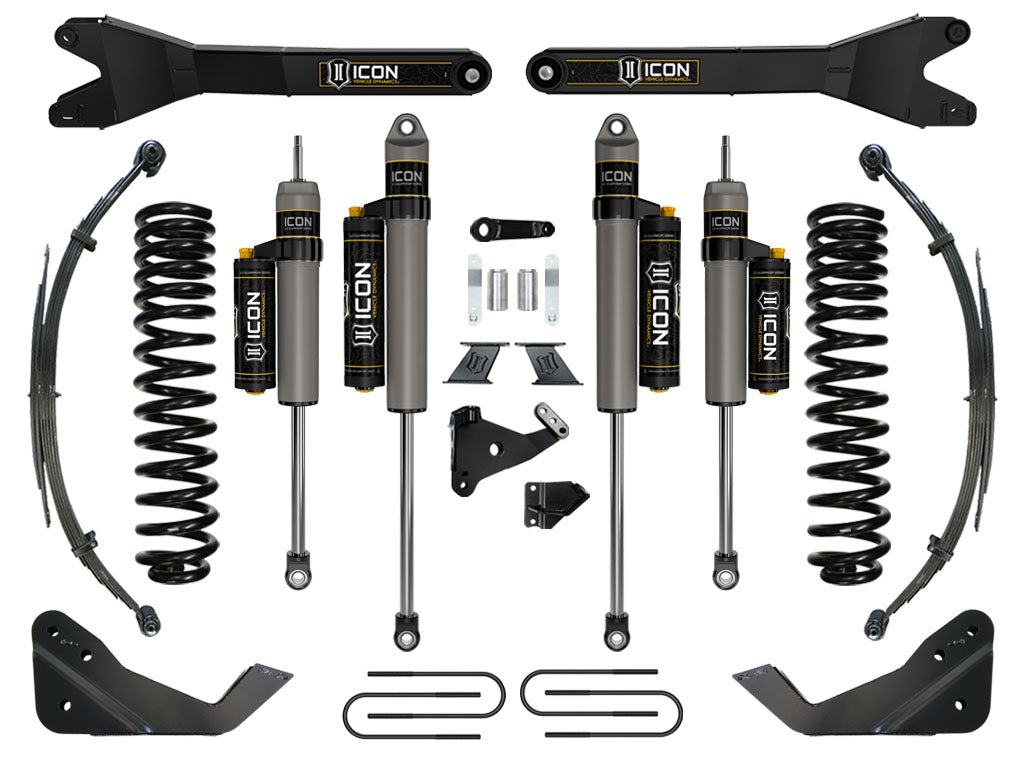

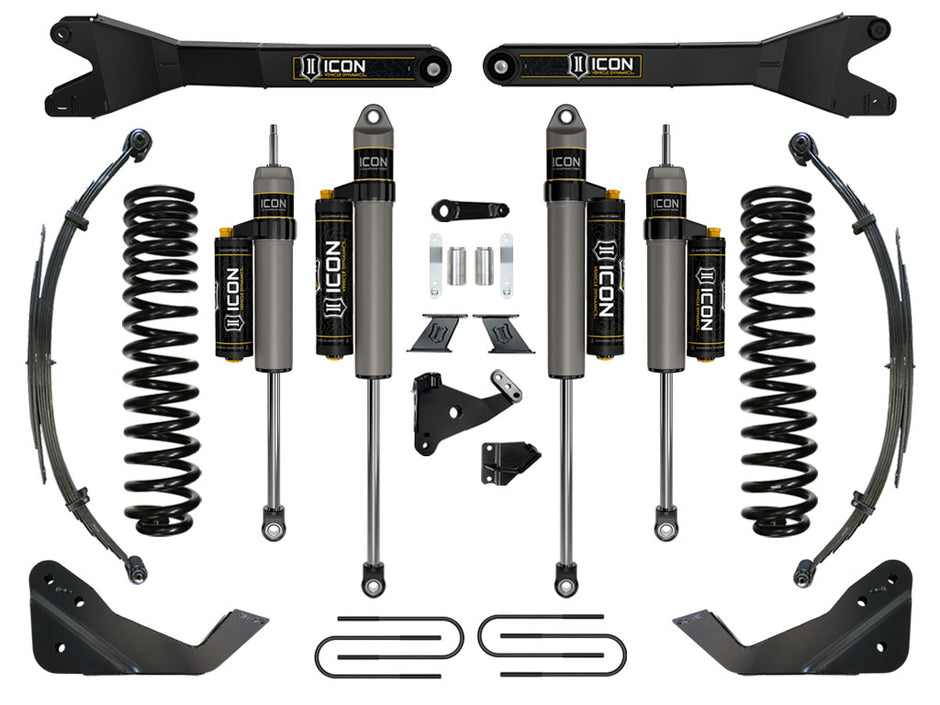

08-10 FORD F250/F350 7" STAGE 5 SUSPENSION SYSTEM W RADIUS ARM

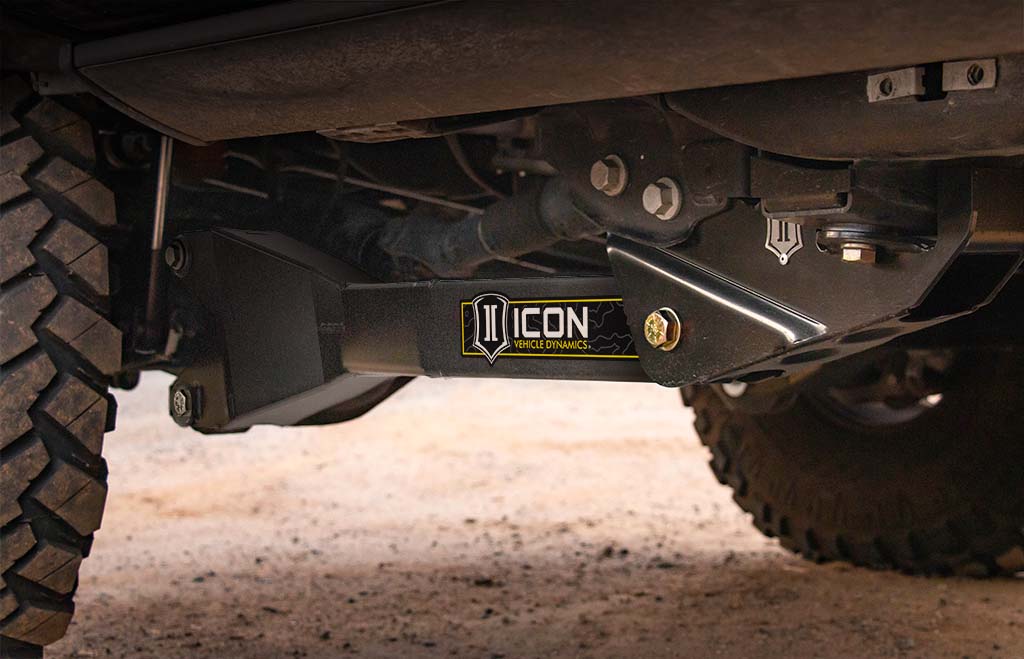

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Decreased body roll
• ICON engineered dual rate coil springs with match tuned 2.5 Series reservoir shocks w/ CDCV
• Shock absorbers feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• Correctly positioned steering and track bar components
• Rear progressive design leaf pack for smooth compliant ride
• No drive shaft modifications needed

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103419022
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 7
• 6111: 7
• 7325: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• California Prop 65 Warning: Yes
• Dual Rate Coil Springs: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 48.0000 x 48.0000 x 10.0000 inches
• Weight: 553.0000 POUNDS
