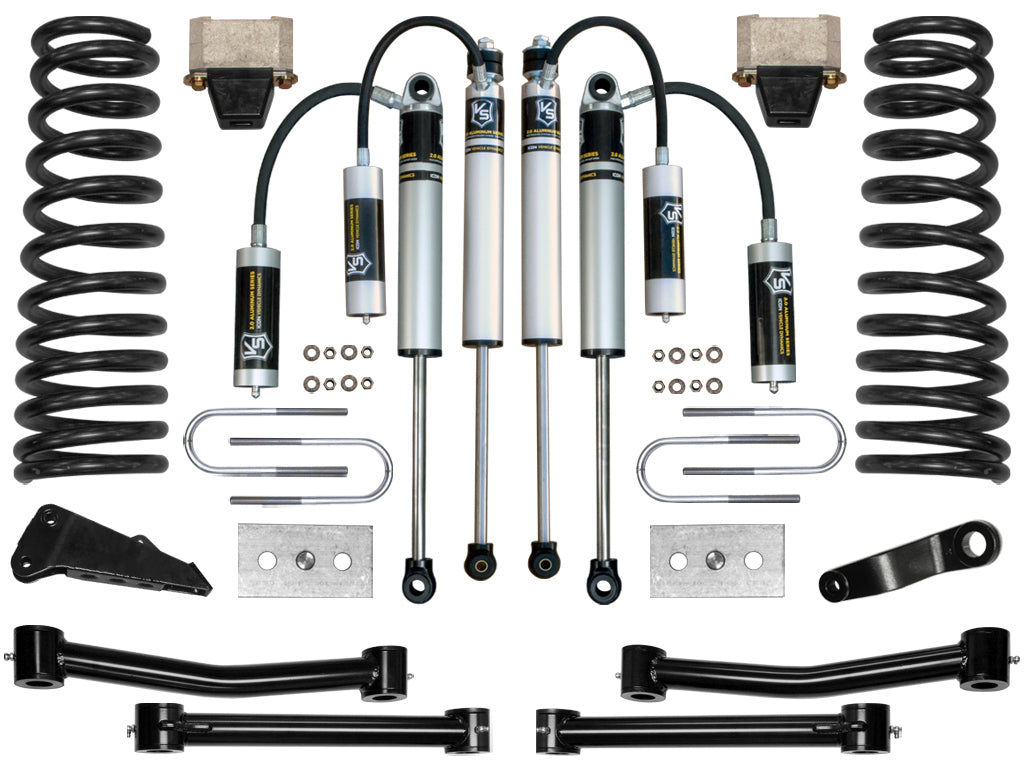

09-12 RAM 2500/3500 4.5" STAGE 2 SUSPENSION SYSTEM

2009-2012 Ram 2500/3500 4.5" Stage 2 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 2 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, rear 2.5" lift blocks with U-bolts, and 2.0 Aluminum Series remote reservoir shocks. Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This performance system with link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

• ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series remote reservoir shocks
• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Correctly positioned steering and track bar components
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103415680
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 4.5
• 7325: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• California Prop 65 Warning: Yes
• Dual Rate Coil Springs: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 19.0000 x 10.0000 inches
• Weight: 238.0000 POUNDS
