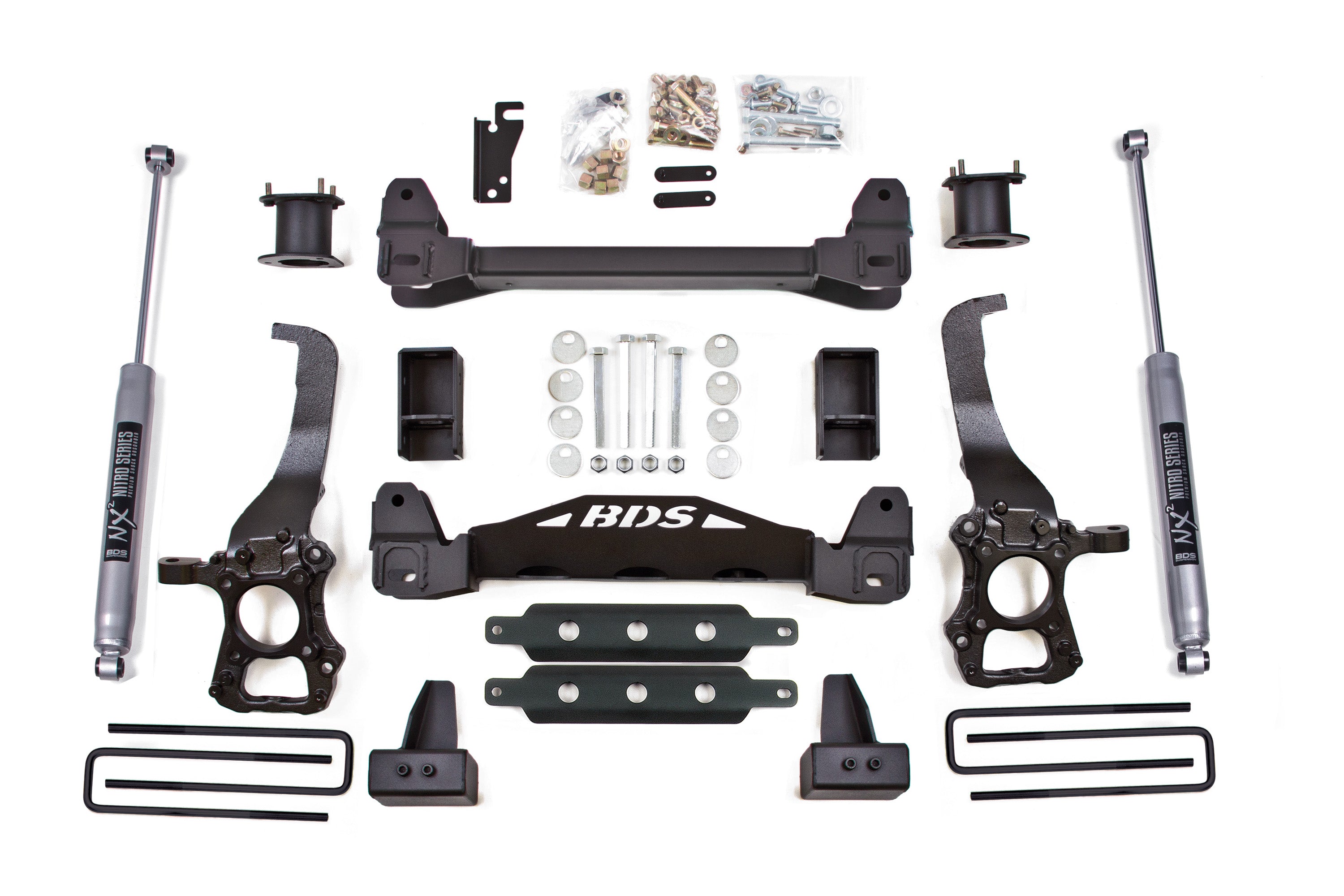

Continue shopping09-13 F150 2WD 4/2 Lift System
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$2,059.70
-0%
Regular price
$2,059.70
Regular price
$2,059.70
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
<p>Update the style and ride of your 2009-2013 Ford F150 2WD truck by installing a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.</p>
<p>This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, steel top mount strut spacer, and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.</p>
<p>In the rear BDS utilizes high strength cast steel lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.</p>
<h2>High Clearance Crossmemebers</h2>
<p>BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.</p>
<h2>Heavy Duty Steering Knuckles</h2>
<p>BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.</p>
-
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and ins
Attributes:
- Brand Name: BDS Suspension
- GTIN: 00840416418446
Extended Information:
- Country of Origin: US
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each:
- Package UOM:
- Weight: 0 POUNDS
