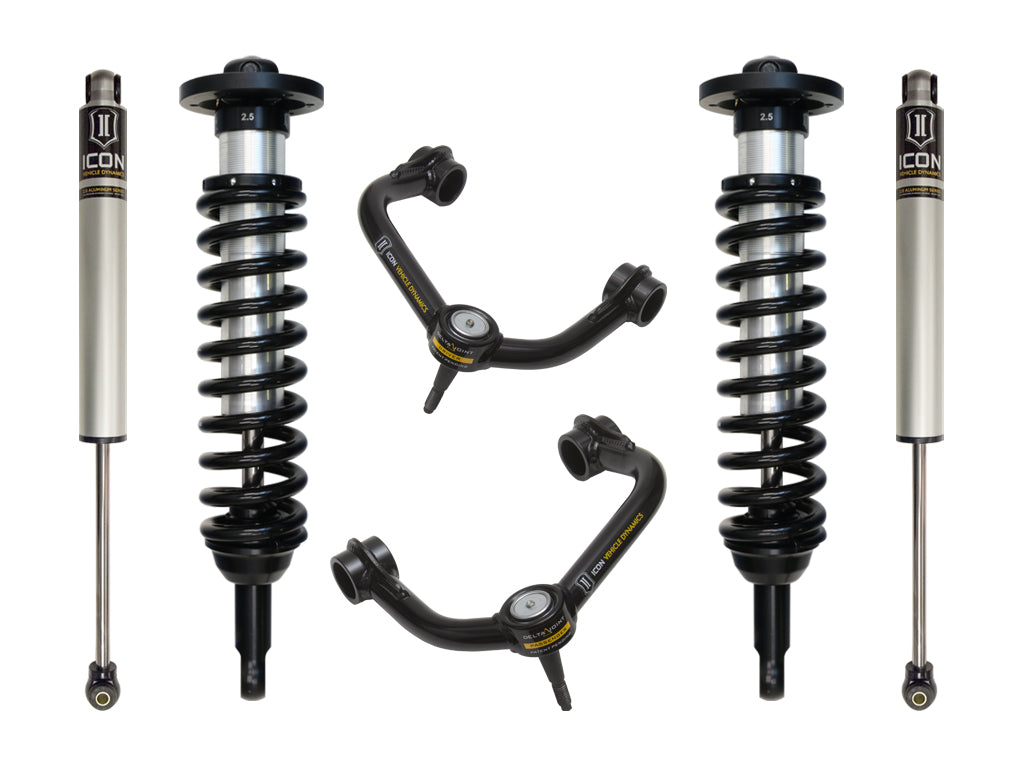

ICON 2009-2013 Ford F-150 2WD 0-2.63" Lift Stage 2 Suspension System Tubular
Increments of 1
Minimum of 1
Maximum of
0Low stock
0
Sale price
$3,039.20
-0%
Regular price
$3,039.20
Regular price
$3,039.20
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- 100% bolt-on system - no drilling, cutting or welding necessary for install
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers provide 0-2.63" of lift height
- Tubular upper control arms for added strength, durability, and improved alignment geometry
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- High strength alloy CNC machined lower bar pin
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 aluminum body IFP rear shock with 5/8" polished shaft
- ICON 09-13 FORD F150 2WD 0-2.63" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103419596
- 30: Yes
- 2064: Steel
- 2371: NO
- 3096: Black
- 3097: Yes
- 3390: Performance
- 4427: Black
- 4428: Steel
- 5520: 2.63
- 5778: 3
- 5782: Closed
- 5783: Closed
- 7325: 2
- 9271: Linear
- 10107: 600
- 11410: 2.63
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Compression: No
- Adjustable Control Arm: No
- Adjustable Damping: No
- Adjustable Rebound: No
- California Prop 65 Warning: Yes
- Coil Quantity Front: 2
- Front Reservoir Style: Internal
- Front Shock Body Diameter: 2.5
- Maximum Lift Front: 2.63
- Minimum Lift Front: 0
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Internal
- Rear Shock Body Diameter: 2
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 86.0000 POUNDS
