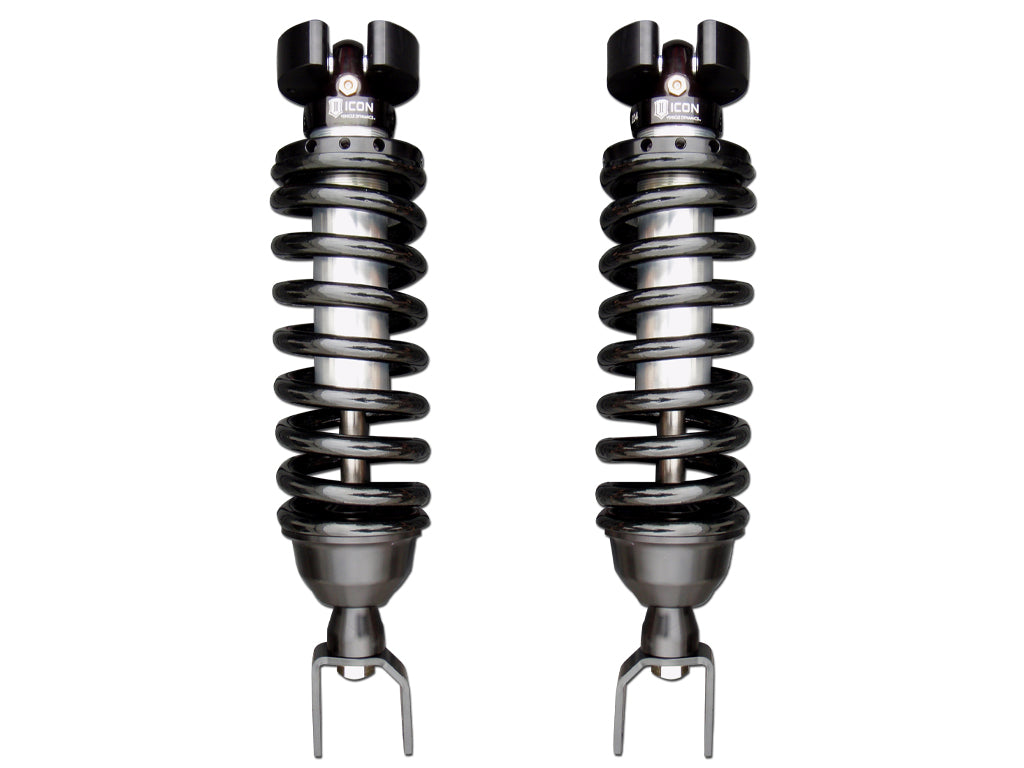

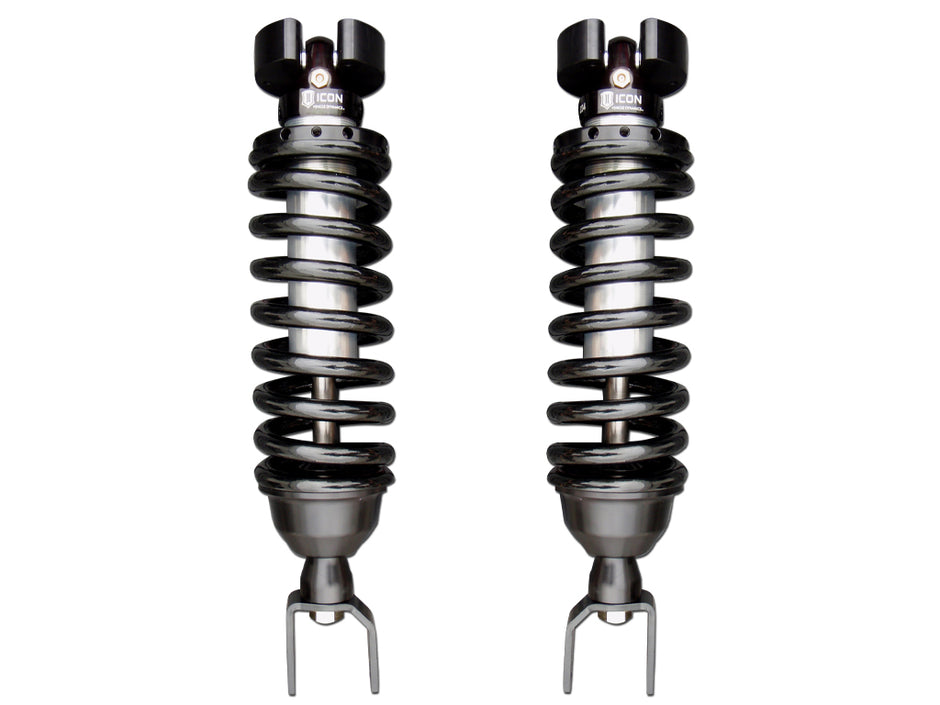

ICON 2009-2018 Ram 1500 4WD W/ ProComp 6” Lift Front V.S. 2.5 Series Coilover Kit Internal Reservoir
Increments of 1
Minimum of 1
Maximum of
0Low stock
0
Sale price
$1,732.59
-0%
Regular price
$1,732.59
Regular price
$1,732.59
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2009-2018 Ram 1500 trucks equipped with a 6" lift suspension system. These full length coilovers are specifically designed for use with the ProComp 6" lift suspension system, but may also be compatible with kits from other manufacturers, and eliminates the top mount spacer commonly paired with the OE coilovers with these types of suspension systems. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while lift height adjustability allows the fine tunings of vehicle stance. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
- Adjustable coilovers designed to fit ProComp 6" suspension systems
- Full length coilover design eliminates top mount spacer used on OE coilovers
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on- and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated shock body with 7/8" shaft
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- ICON 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT W/ PROCOMP 6"
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103400518
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9783: Yes
- 10107: 700
- 10527: No
- 10528: Yes
- 10530: Passive
- 10535: 3
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Adjustable Damping: NO
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 21.59
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Type: Oil
- Extended Length: 27.22
- Gas Charged: Yes
- Lower Mount Type: Clevis
- Material: Steel
- Maximum Lift: 3
- Minimum Lift: 2
- Remote Reservoir: NO
- Reservoir Style: Internal
- Self-Leveling: No
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Clevis Holes
- Spring Rate Type: Linear
- Travel Length: 5.63
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 50.0000 POUNDS
