Continue shopping11-16 FORD F250/F350 4.5" STAGE 3 SUSPENSION SYSTEM
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$4,480.50
-0%
Regular price
$4,480.50
Regular price
$4,480.50
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

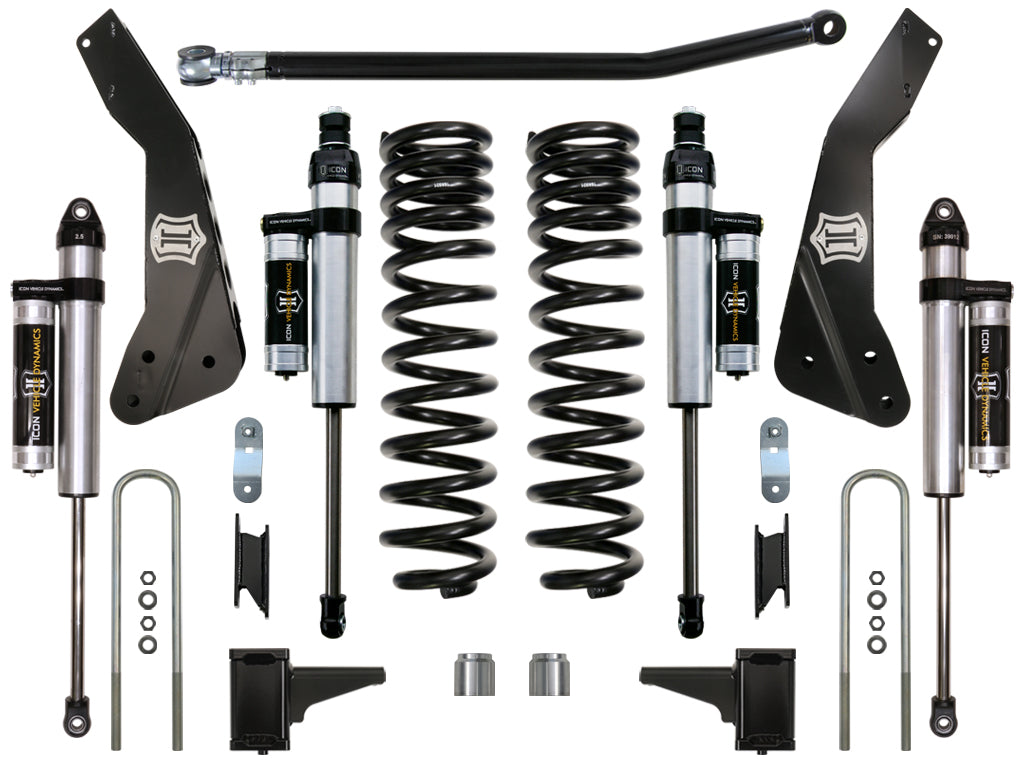

This 4.5" System for the 2011-2016 Super Duty is one of the best riding suspension systems ICON has ever developed. This system has been engineered using the highest quality materials and components. The dual rate front coil springs combined with our ICON 2.5 Aluminum Series shocks give these trucks the performance they so desperately need. This system comes complete with front coils, shocks, radius arm drop down brackets, rear blocks, U-bolts, and our patented adjustable track bar with upgraded bearing giving the front end of these trucks perfect track alignment. The Stage 3 system also upgrades the front and rear shocks to our 2.5" Aluminum Series piggyback reservoir shocks for even better ride quality and performance.
- 50% increase in wheel travel
- 100% bolt-on system - no cutting or welding necessary for install
- Less body-roll than stock truck
- 4.5" more travel from ride height to front bump stops
- Dual rate coil spring
- Lifetime guarantee that coil springs won’t sag
- Clears 35" tall tires & 37" tall tires w/ minor trimming
- No change in towing capacity
- No drive shaft modifications needed
- Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103418810
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 5520: 4.5
- 7325: 2
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- California Prop 65 Warning: Yes
- Dual Rate Coil Springs: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 27.0000 x 12.0000 x 6.0000 inches
- Weight: 229.0000 POUNDS
