ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Serie s shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
100% revalveable
Nitrogen charged monotube design with internal reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable

Attributes:

Brand Name: ICON Vehicle Dynamics
GTIN: 00840103403151
30: No
48: EYELET
49: EYELET
50: NO
51: Yes
52: 2
200: Anodized
408: CENTER OF EYELET
409: CENTER OF EYELET
3390: Performance
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable: NO
Attributed Description: ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 13.550 IN; Fully Open Length: 23.00 IN; Shock Stroke: 9.45 IN; Travel Length: 9.45 IN
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
Coil Over Springs Included: NO
Dust Shield: NO
Remote Reservoir: NO
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)

Extended Information:

Country of Origin: United States
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packing Information:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 40.0000 x 3.0000 x 3.0000 inches
Weight: 4.0000 POUNDS

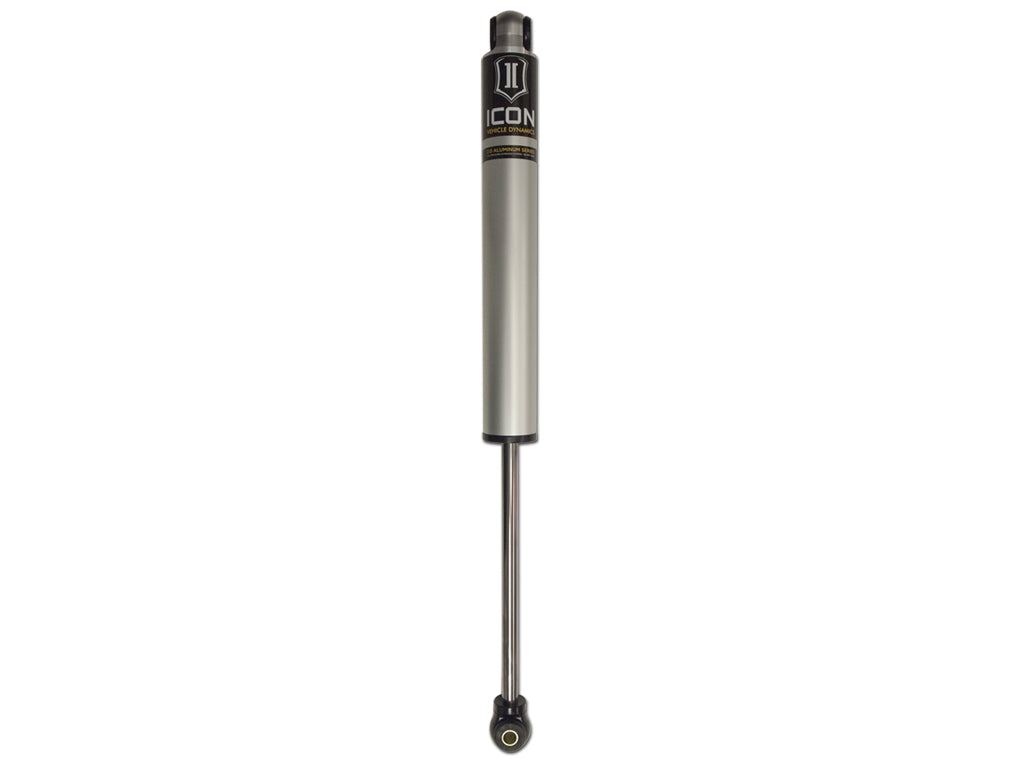

12-15 HILUX REAR 2.0 VS NR
