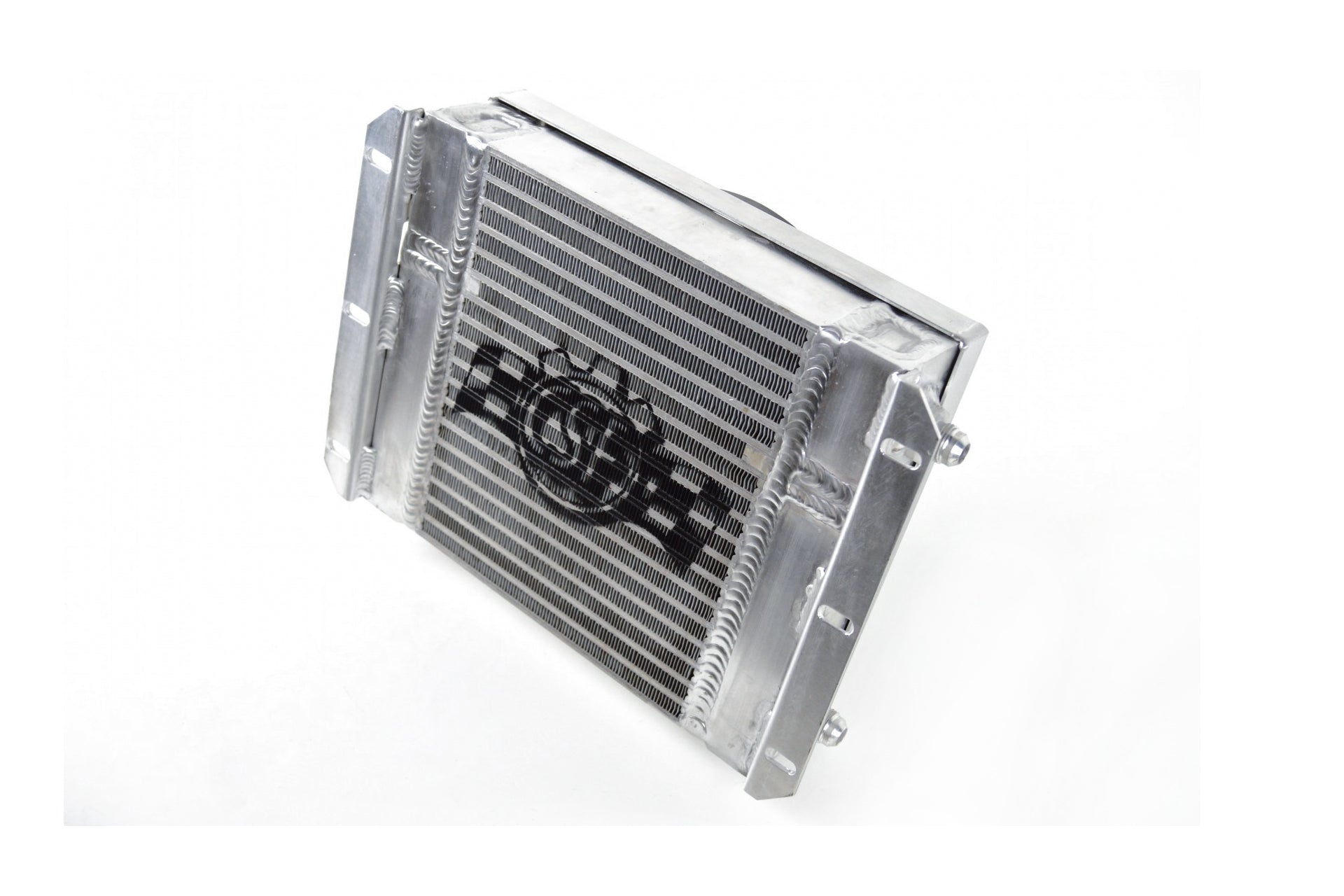

13.8in X 10in Dual Fluid Bar & Plate HD Oil Cooler W/9in SPAL Fan

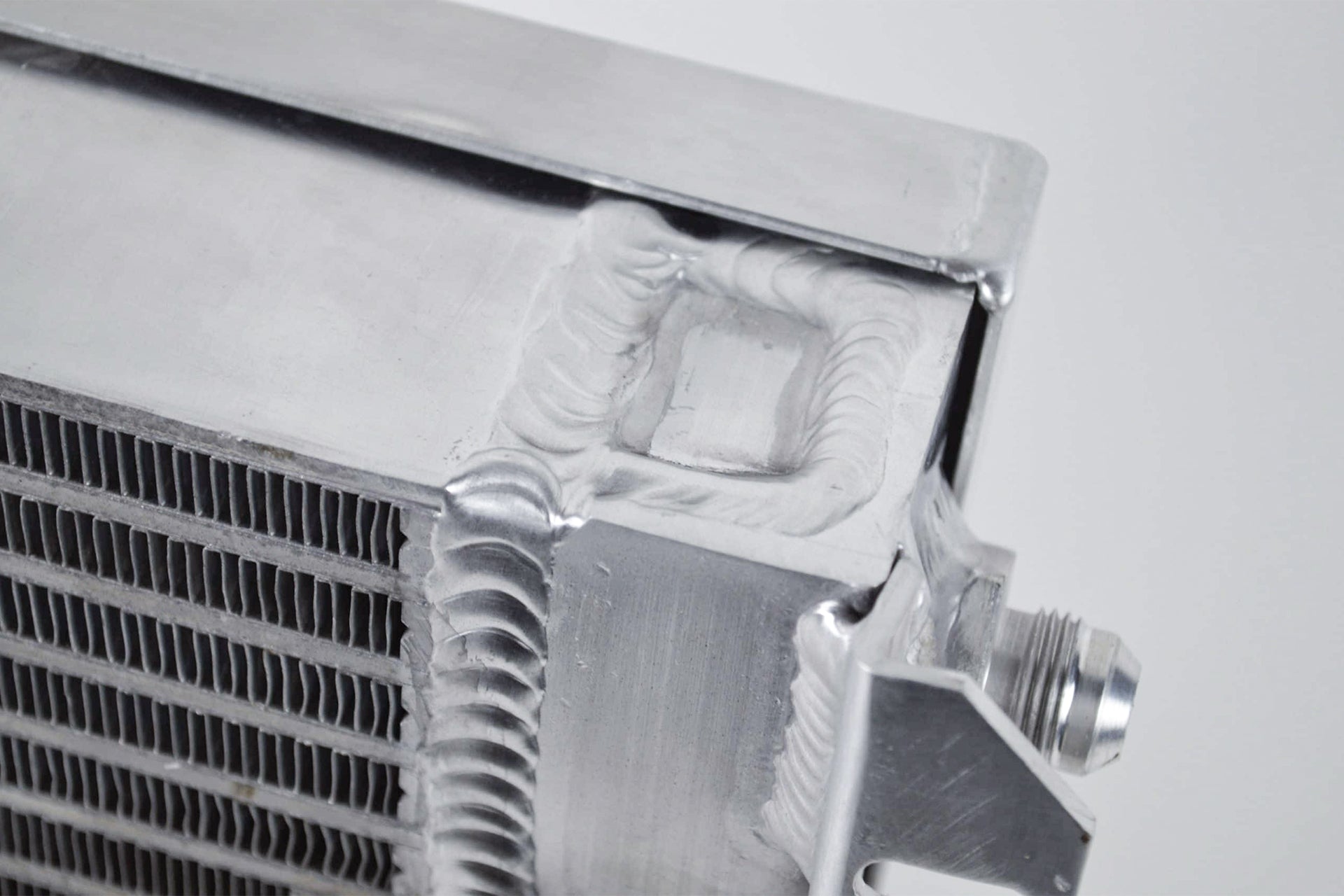

The all-aluminum design was made to withstand even the most extreme conditions - With extruded aluminum end tanks, TIG welds, a heavy-duty bar and plate core, and pressure testing up to 120psi. The core features 17 rows of cooling, split into two sections of 5 and 12 rows, allowing for cooling of two different fluids in one compact design. Virtually any type of oil can be used - including engine oil, power steering fluid, transmission oil, and gearbox fluid. The oil cooler includes a SPAL fan and shroud with isolator mounts (for high vibration) - but this can be removed for a more compact fit or when not needed. -10 AN fittings are built into the end tanks, making it easy to install for aftermarket and race applications.

• 9.7" Tall x 13.8" Wide (With Brackets) 14" x 5.15" Thick (With Fan) (5.65" Thick With Bracket Overhang)
• 17 Rows of Cooling Split-up Into 2 Sections of 5 Rows (30%) and 12 Rows (70%)

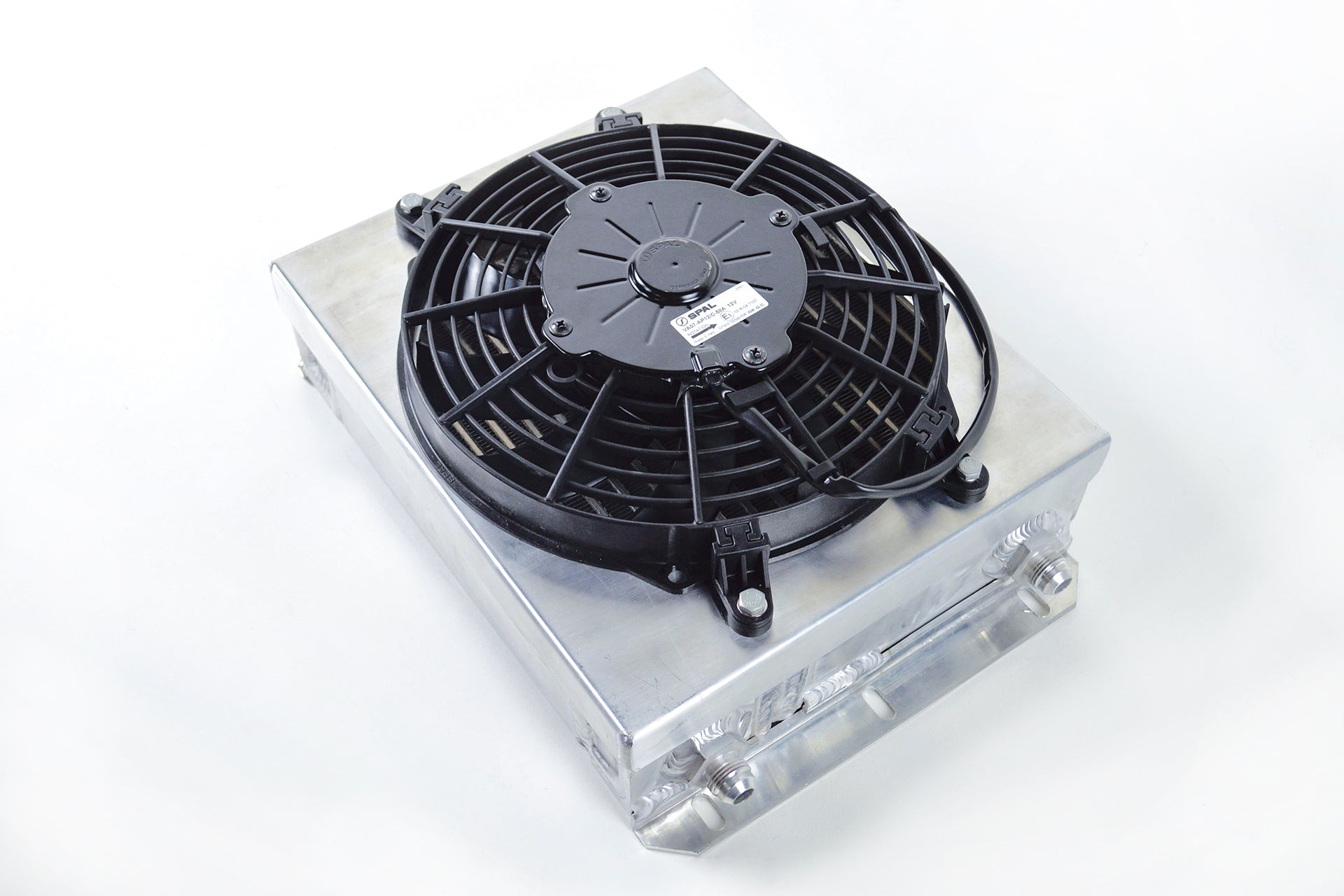

• Includes Removable 9" SPAL Fan & Shroud
• Built-in AN -10 Male Fittings (Plug and Play)
• Pressure Tested at 120psi
• Extruded Aluminum Endtanks
• Heavy-Duty Bar and Plate Core Design
• Can Be Used With Any Type of Oil (i.e. Engine Oil, Power Steering Fluid, Transmission Oil, Gearbox Fluid)

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353080269
• Cable Included: No
• Color: Satin
• Core Charge Applicable: No
• Core Color: Black
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Tube: No
• Core Type: Tube-and-Fin
• Finish: Brushed Aluminum
• Grade Type: Performance
• Inlet Fitting Type: AN Flare
• Inlet Gender: Female
• Installation Type: Universal Cooling Product
• Mounting Hardware Included: No
• Outlet Fitting Gender: Female
• Outlet Fitting Type: AN Flare
• Strap Included: No
• Tube Included: No

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 10 x 12 inches
• Weight: 15 POUNDS
