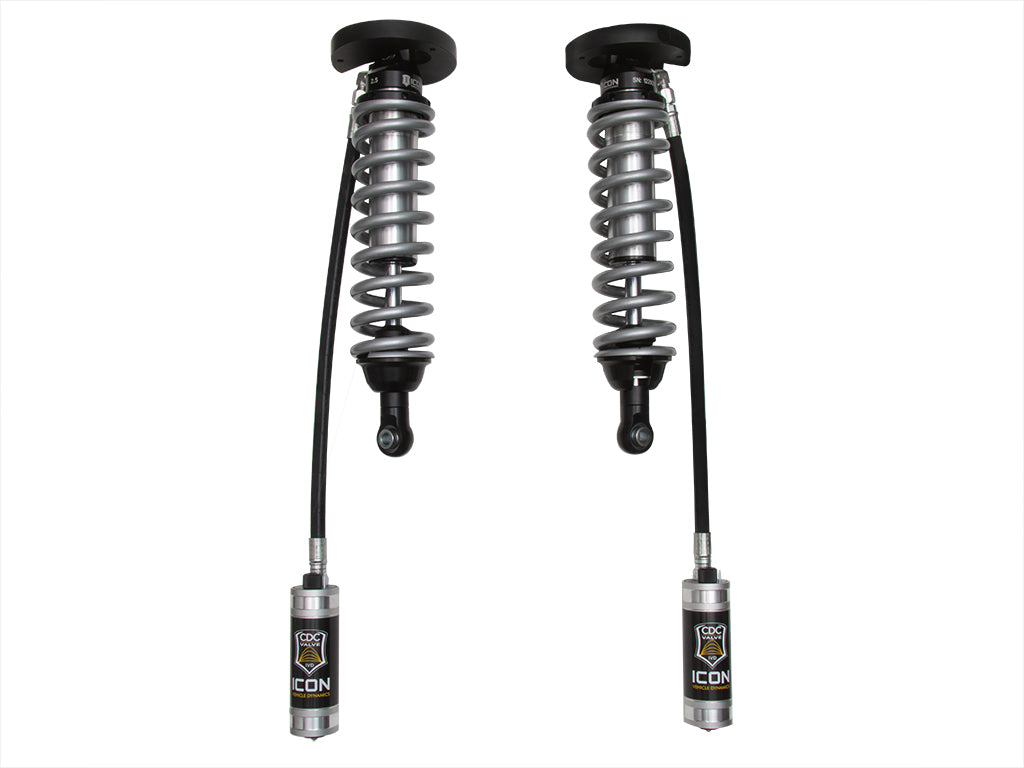

Continue shopping14-20 EXPEDITION 4WD .75-2.25" REAR 2.5 VS RR CDCV COILOVER KIT
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$2,505.48
-0%
Regular price
$2,505.48
Regular price
$2,505.48
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the rear end of the 2014-2020 Ford Expedition. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering .75-2.25” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of adjustment from soft to hard. When paired with ICON front 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford Expedition.
- Increased wheel travel and ride quality over stock
- 100% Bolt-on - cutting or welding necessary for installation
- Unique valving developed specifically for the 2014-2020 Expedition and tuned for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for external compression damping tuneability
- Adjustable for .75" - 2.25" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" diameter shaft
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103407104
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: Yes
- 9783: Yes
- 10108: 600
- 10527: Yes
- 10528: Yes
- 10530: Passive
- 10535: 2.25
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: Yes
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 14.87
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Extended Length: 20.73
- Gas Charged: Yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 2.25
- Minimum Lift: .75
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Reservoir Style: Remote
- Self-Leveling: No
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Rate Type: Linear
- Travel Length: 5.87
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 62.0000 POUNDS
PDF:
