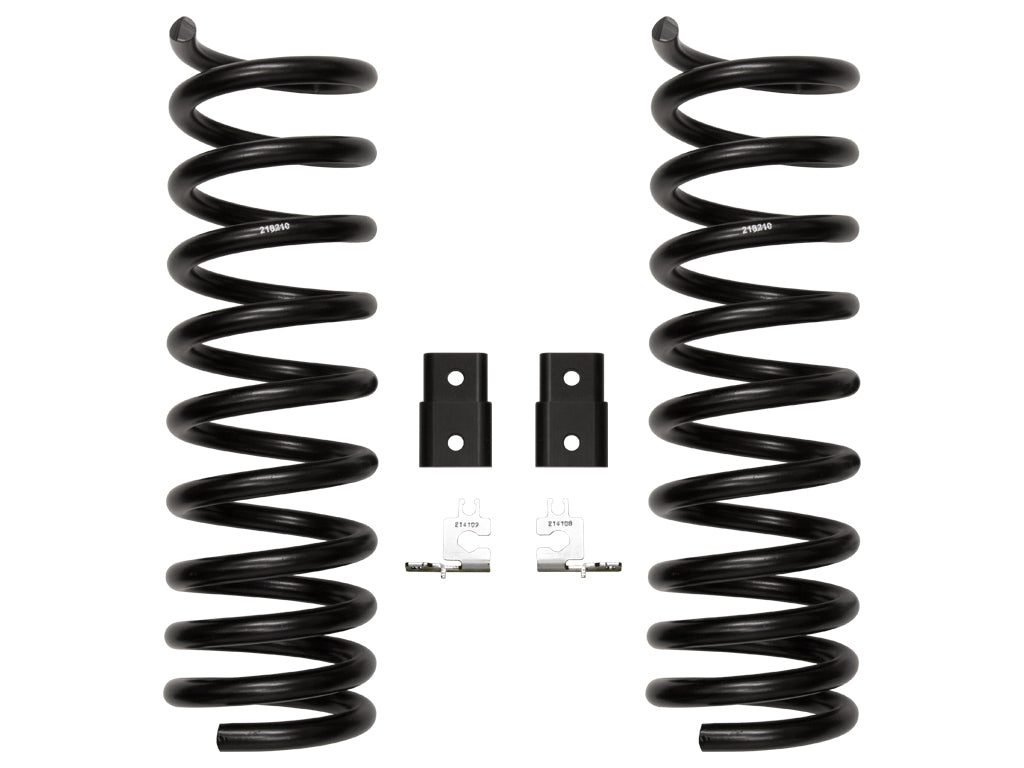

ICON 2014-2026 Ram 2500/2013-2026 Ram 3500 2.5” Lift Front Dual Rate Coil Spring Kit
Increments of 1
Minimum of 1
Maximum of
0Low stock
0
Sale price
$501.35
-0%
Regular price
$501.35
Regular price
$501.35
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
The ICON Vehicle Dynamics 2.5" Dual Rate Spring System for 2014-2026 Ram 2500 / 2013-2026 3500 4WD levels out your truck and offers you both incredible ride quality and performance. This 2.5" dual rate spring system offers an initial soft ride zone with an aggressive second rate to help prevent bottoming out and are optimized for use on trucks equipped with diesel engines. These ICON springs have a dual stage powder coat process to help prevent corrosion and are shot peened and pre-set to prevent sagging. Front extended length shocks are required for complete installation, and we offer 2.0 Aluminum Series smooth body and Remote Reservoir or our 2.5 Series Reservoir shock with or without CDC (Compression Damping Contol) Valve. All ICON shocks are engineered to be the correct length offering maximum droop and compression travel, then tuned to work hand in hand with these springs for the best available on and offroad performance.
- ICON engineered dual rate coil springs
- Increased wheel travel and ride quality over stock
- Less body roll than stock
- Front extended length shocks are required for complete installation
- No drive shaft modifications needed
- No change in towing capacity
- ICON 14-26 RAM 2500 2.5" FRONT DUAL RATE SPRING KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103400631
- 200: Powdercoated
- 2064: Steel
- 2351: .781
- 3096: Black
- 3390: Performance
- 4514: No
- 4516: 4.53
- 4517: 6.1
- 4518: 20.2
- 4519: 8.5
- 9271: Variable
- 10107: 413
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 214214 - 14-26 RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT
- Bump Stops Included: No
- California Prop 65 Warning: Yes
- Maximum Lift Height: 2.5
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 21.0000 x 13.0000 x 7.0000 inches
- Weight: 52.0000 POUNDS
