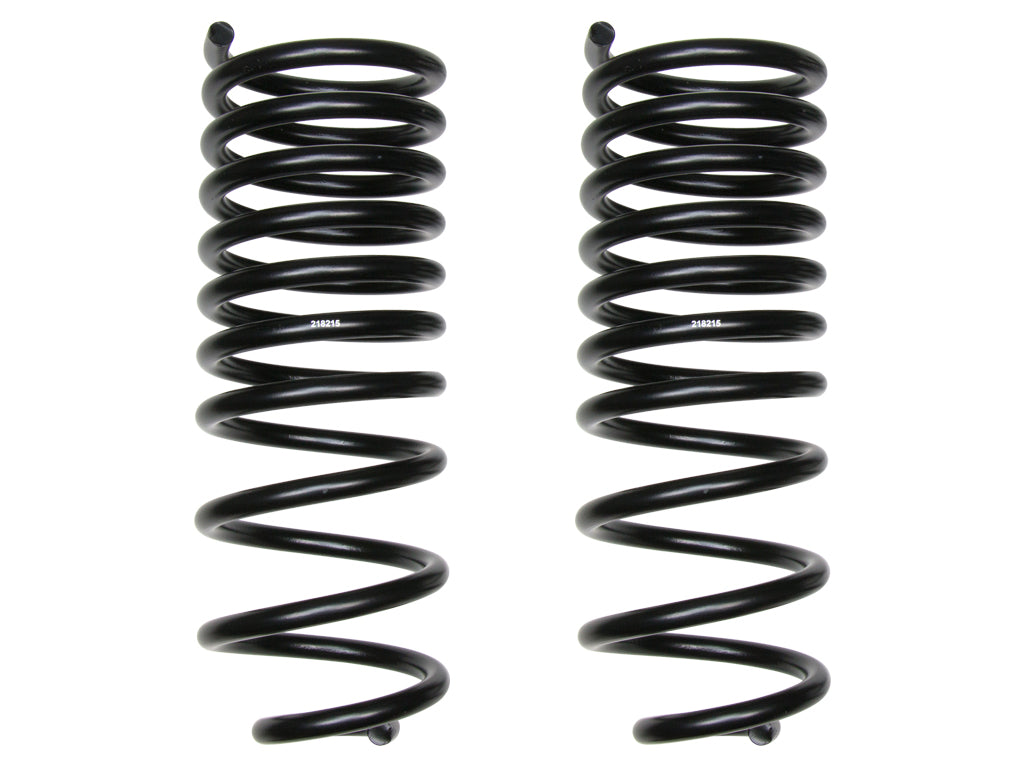

ICON 2014-2026 Ram 2500 2” Lift Rear Performance Coil Spring Kit

ICON engineers have also developed optional "Performance Systems" that include multi-rate rear coil springs in place of the rear spacer. The lighter initial droop rate of these performance rear coil springs helps the truck feel smoother and more controlled over washboard roads, small whoops, or similar terrain. The secondary ride rate allows the truck to maintain exceptional ride quality, while the aggressive third overload rate helps prevent bottom outs and provides payload support. These systems were developed with the chase truck type of application in mind, and will significantly increase the on and off-road performance of the RAM 2500 when driven aggressively.

• Vehicle specific design yields 2" of rear lift on Ram 2500 equipped with rear coil spring
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Significantly improves on- and off-road ride quality and performance over stock
• Rear extended length shocks are recommended for complete installation
• Durable powder coating for corrosion resistance
• Lifetime guarantee against sagging/breakage

Vehicle Specific

• ICON 14-26 RAM 2500 2" REAR PERFORMANCE SPRING KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103400655
• 200: Powdercoated
• 2064: Steel
• 2351: .843
• 3096: Black
• 3390: Performance
• 4515: No
• 4520: 21
• 4521: 9.52
• 4522: 6.19
• 4523: 7.87
• 10108: 230
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 217706EP - 14-26 RAM 2500 2" PERFORMANCE REAR 2.5 VS PB CDEV PAIR
• California Prop 65 Warning: Yes
• Maximum Lift Height: 2
• Rear Spring Rate Type: Progressive Triple Rate

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 19.0000 x 10.0000 inches
• Weight: 80.0000 POUNDS
