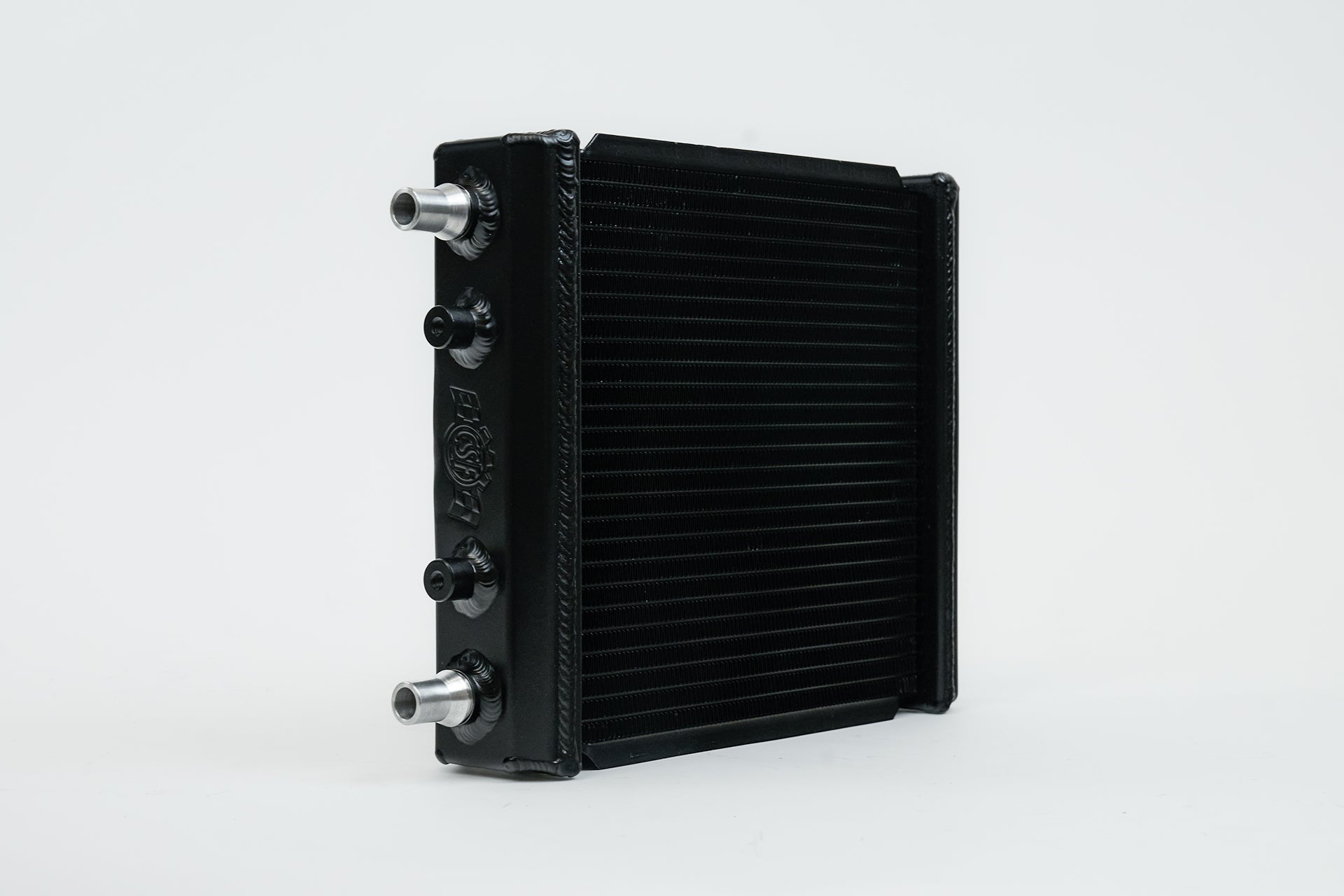

16-21 Chevy Camaro V8 / 2.0T / 16-19 Cadillac CTS-V Auxiliary Radiator

The 6th Gen Chevy Camaro and 3rd Gen Cadillac CTS-V are impressive performance machines. GM did an amazing job in the design and engineering of both vehicles and they've been a big hit among enthusiasts. However, both cars suffer from severe heat soak. While this might not be an issue for some casual daily drivers, it is incredibly frustrating to most enthusiasts. Due to this heat soak issue, the Camaro/CTS-V will go into limp mode at the most inopportune times. For example, while you're spiritedly driving on a fun road or while you're at the track. CSF designed High-Performance Auxiliary Radiators to help remedy this issue. CSF designed the coolers to be a true "Drop-in Fit" for easy installation. Each cooler uses all the original OEM hardware, shrouds, and connections. The High-Performance Auxiliary Radiators work in conjunction with the rest of the cooling system to reduce temperatures. They not only help keep temperatures in optimal ranges, but prolonging the heat soak threshold. Compared to the OEM coolers, the CSF units are a significant step up. By upgrading to a 2-row 42mm core cooling efficiency and capacity are drastically increased. The high efficiency core using CSF's Exclusive B-Tube Technology maximizes airflow and heat dissipation. While 100% All-Aluminum construction to ensure the best performance and durability. In addition, the black powder coat finish provides extra protection and offers a stealthy look behind the grilles of your Camaro or CTS-V.

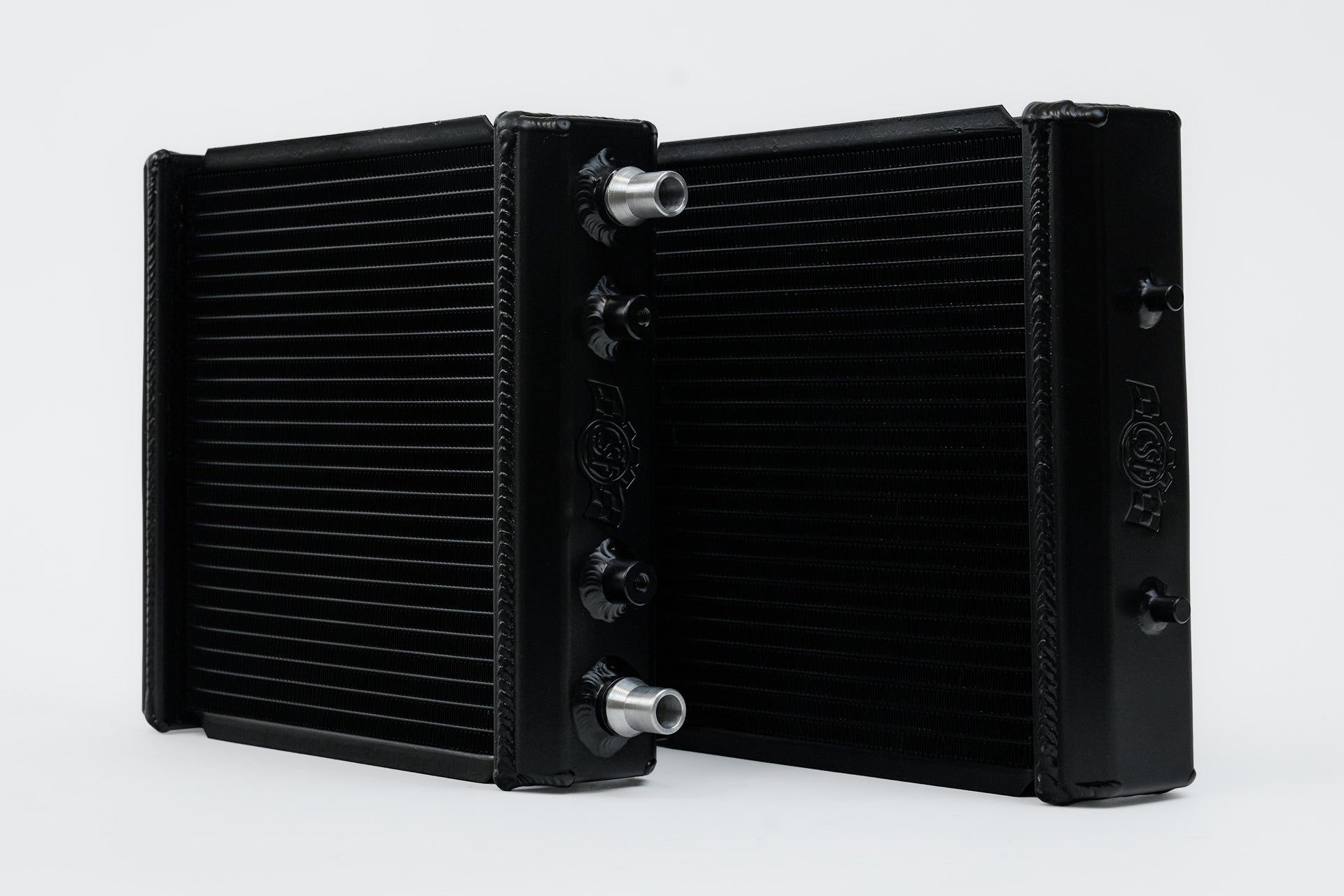

• Sold Individually - all applications require 2 auxiliary radiators
• Matte Black Powder Coat Finish
• 2 Year Limited Warranty
• 2-Row 42mm High-Performance Core Featuring CSF's B-Tube Technology
• Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• 100% All-Aluminum TIG-Welded Construction

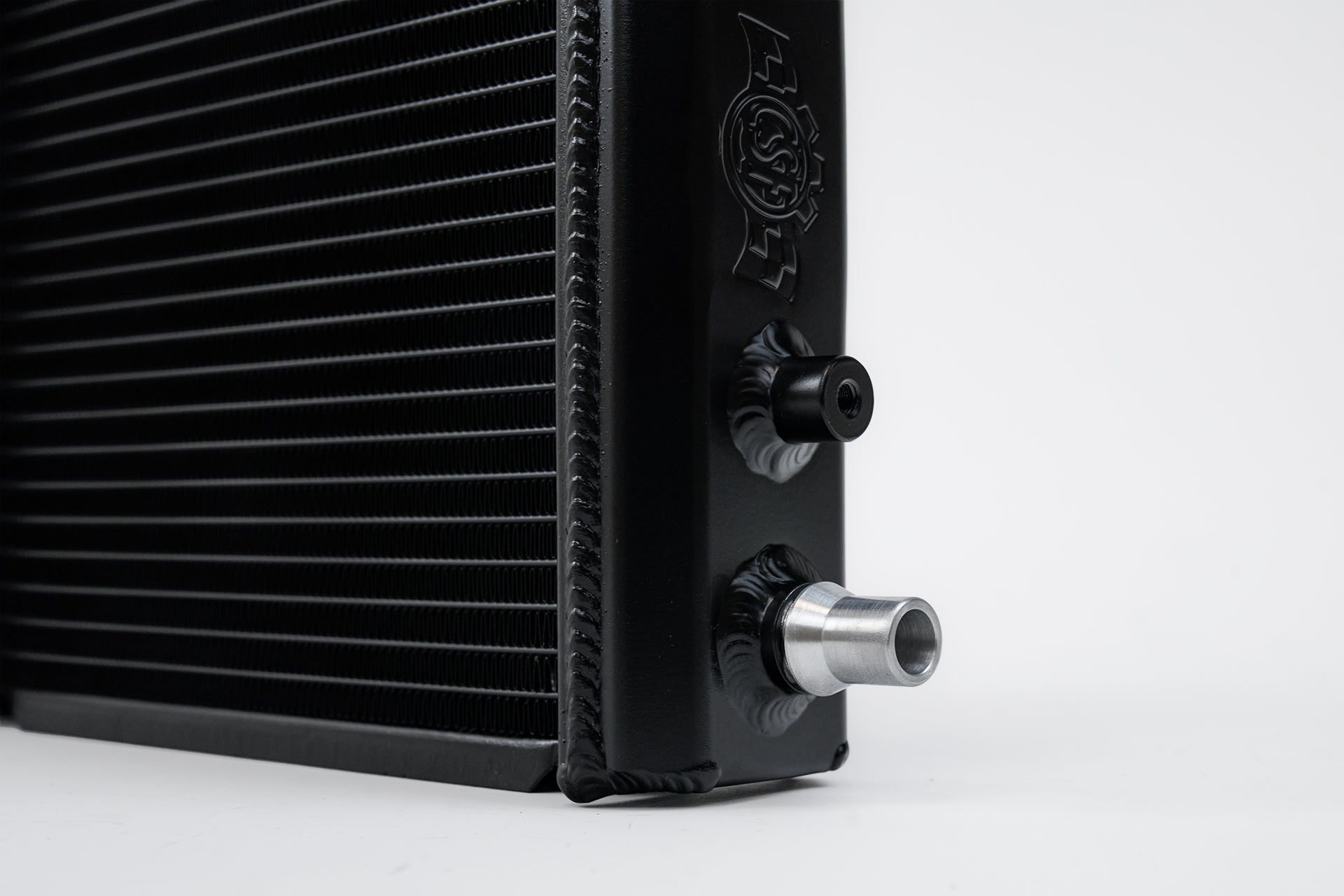

• OEM Style "Quick Connect" Inlet/Outlet
• Multi-Fit - Fits Both Left & Right Side
• True "Drop-in Fit" Requires No Modifications to Install
• Individually Leak and Pressure Tested
• High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353082072
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 9 in.
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 42mm
• Core Width: 8.625 in.
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Black
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Quick Connect
• Inlet Diameter: 0.625 in.
• Inlet Location: Top
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Quick Connect
• Outlet Diameter: 0.625 in.
• Outlet Location: Bottom
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: ID
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 15 x 13 x 5 inches
• Weight: 5 POUNDS
