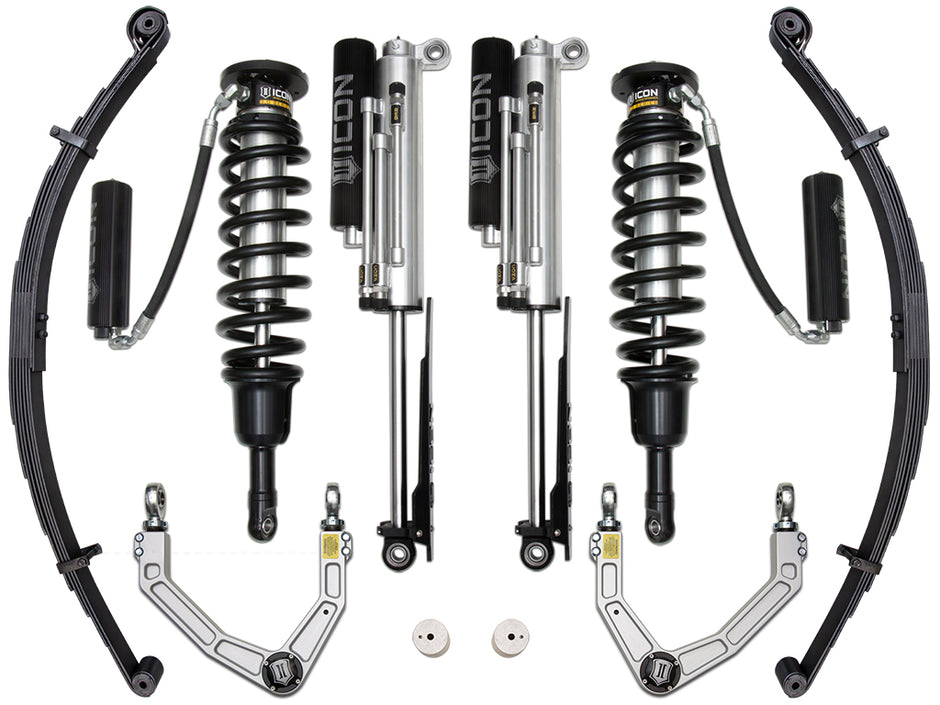

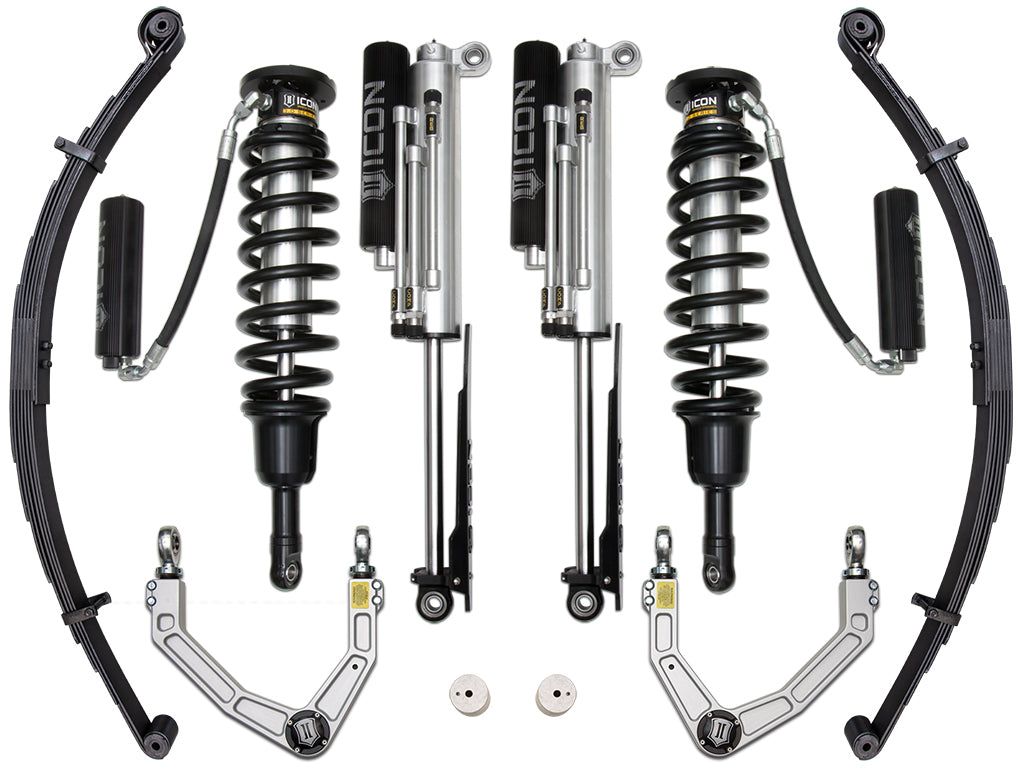

17-20 FORD RAPTOR STAGE 3 SUSPENSION SYSTEM
Increments of 1
Minimum of 1
Maximum of
0Low stock
0
Sale price
$11,223.70
-0%
Regular price
$11,223.70
Regular price
$11,223.70
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
To compliment ICON's rear 3.0 Series bypass shocks, ICON engineers decided to scrap the OE rear leaf springs and develop a replacement that addressed a couple issues found in the R&D process. The result is a user-adjustable, multi-rate leaf pack that offers a major performance gain for almost every Raptor setup imaginable. To increase the ride quality of the truck and gain additional droop travel, the spring rate was designed to be slightly lighter than factory, which was found to be on the stiff side for smaller, choppier terrain. While most Raptor owners will embrace the improved ride quality this provides, there are those who have outfitted their trucks with a significant amount of weight and require more load carrying capability. Understanding this, ICON engineers designed the leaf pack with an additional leaf (included with kit) that can be exchanged or added to the pack, yielding an additional 20% or 40% spring rate that will work well for heavier vehicles. The resulting spring pack produces a ride that is much smoother in all terrain, significantly reduces axle wrap, while also adding durability and strength.
- 3.0 SERIES COILOVER SHOCK KIT
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Heavy duty CNC machined 1” shock shafts
- FK Rod End COM12 spherical bearings ensure maximum strength and durability
- CAD plated shock body with hard anodized piston and top cap
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
- BILLET ALUMINUM UPPER CONTROL ARM KIT
- CNC machined 6061 billet aluminum construction for light weight and exceptional strength
- Built-in caster correction improves front end geometry
- Patented Delta Joint (U.S. Patent No. 10,731,700) for maximum durability and noise-free operation
- Adjustable coilovers yield 1-3” of front lift height
- Camber and caster adjustability allows for precise wheel alignment
- ICON double adjuster sleeves for easy on-vehicle adjustment
- Vehicle specific taper pin provides OE-like fitment
- PTFE Lined 7/8” FK Rod Ends increase rigidity and improve response
- Built in o-ring sealed dust cover cap
- 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
- 3-tube bypass design and "Bump Zone" technology provides multiple unique zones of damping and rebound control
- 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions

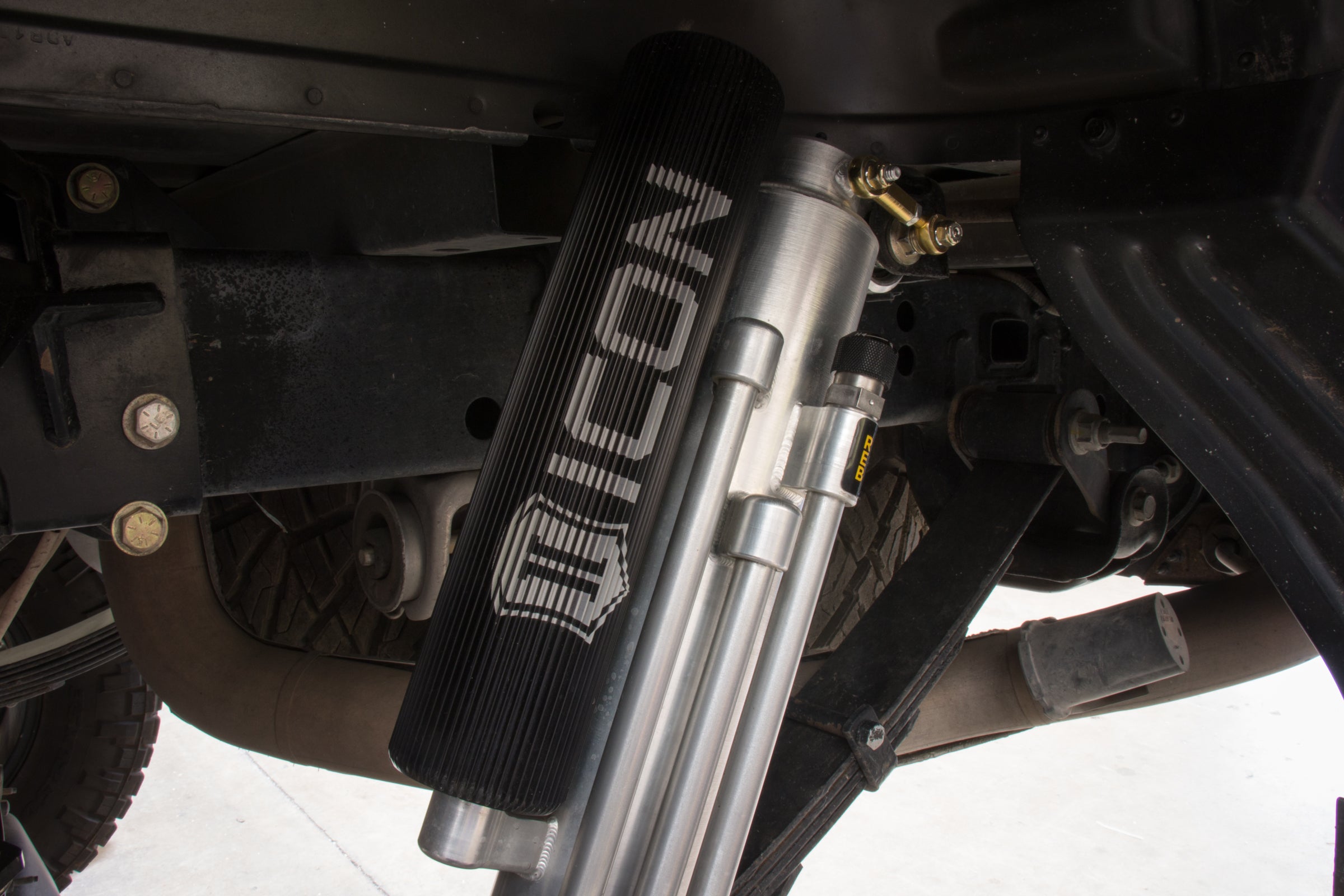

- 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Easy-to-adjust detented knobs offer quick adjustability without the use of tools
- Specially engineered damped valve stops for quiet and precise operation without the loud “clicking” noise common with other brands
- Urethane shin guards help to protect the shock shaft & rod end from premature wear
- MULTI-RATE LEAF SPRING KIT
- 3 user-adjustable spring rates for unique vehicle setups
- Triple military wrap front eyelet and rear half wrap for increased durability
- Rebound leaf reduces severe axle wrap
- Leaf separators and tip inserts reduce noise and friction while increasing ride comfort
- Direct bolt-in to OEM spring location makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Superior low speed control reduces body roll and increases on-road stability
- Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
- ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
- 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
- Barreled coil spring design maximizes travel and provides more efficient packaging
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103420424
- 30: Yes
- 2064: Steel
- 2371: Yes
- 3096: Black
- 3097: Yes
- 3390: Performance
- 4427: Black
- 4428: Steel
- 5520: 3
- 5778: 3.75
- 5782: Square
- 5783: Square
- 6111: 8
- 7325: 2
- 9271: Linear
- 10107: 500
- 11410: 3
- 11412: Steel
- 11413: Black
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Active or Passive Suspension: Passive
- Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
- Adjustable Compression: Yes
- Adjustable Control Arm: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: Rear Only
- California Prop 65 Warning: Yes
- Damping Adjustment Type: Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 3
- OEM Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Piggyback
- Rear Shock Body Diameter: 3
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 18.0000 x 48.0000 x 18.0000 inches
- Weight: 390.0000 POUNDS
