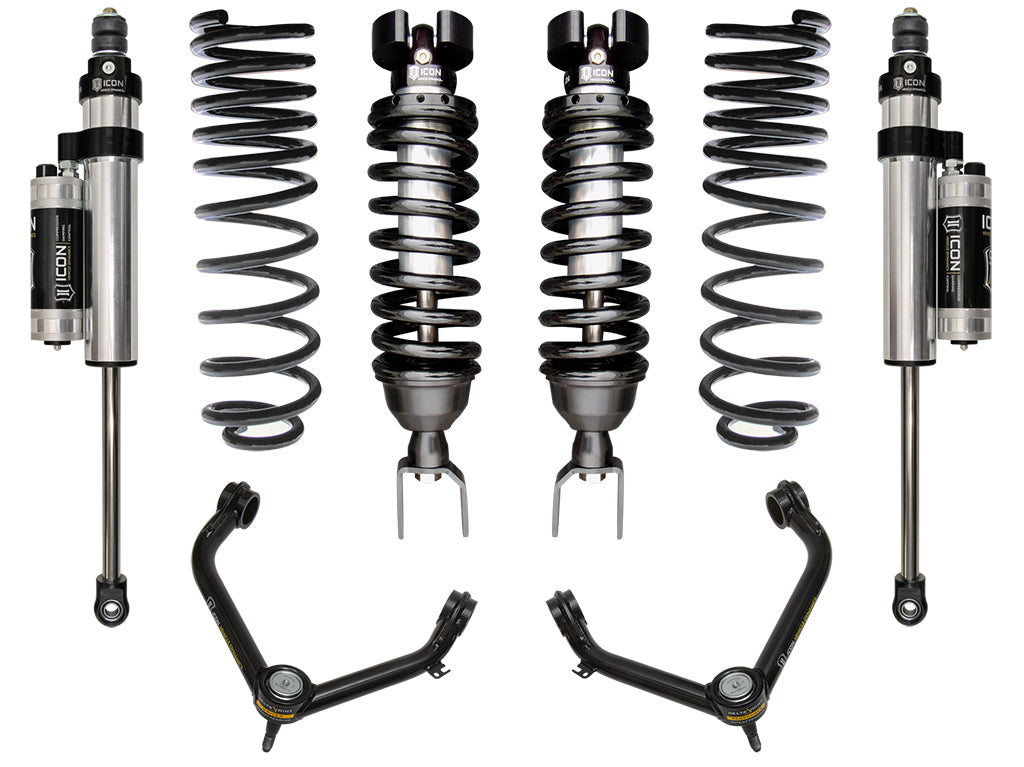

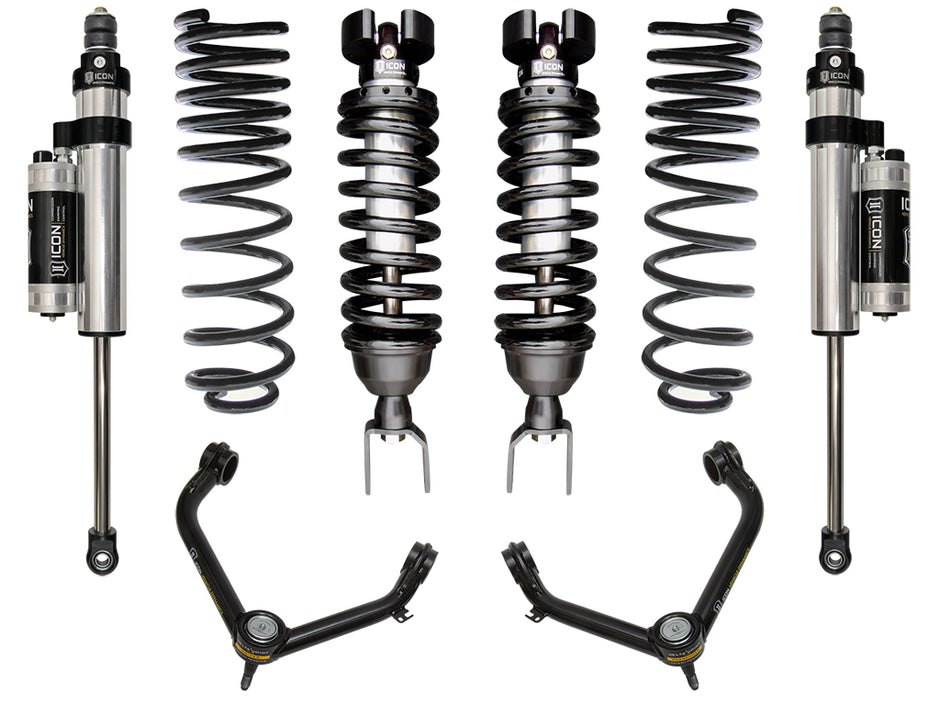

19-UP RAM 1500 2/4WD 0-1.5" STAGE 5 SUSPENSION SYSTEM W TUBULAR UCA

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
• Corrosion resistant CAD plated coilvoer shock bodies with 7/8? shafts
• Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders and 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• ICON upper control arms improve suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• 1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
• Fits 2WD & 4WD applications
• 6061 Aircraft grade aluminum CNC machined components
• Shocks are fully rebuildable and revalvable
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103415437
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 1.5
• 7325: 2
• 7326: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• California Prop 65 Warning: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 12.0000 x 6.0000 inches
• Weight: 130.0000 POUNDS
