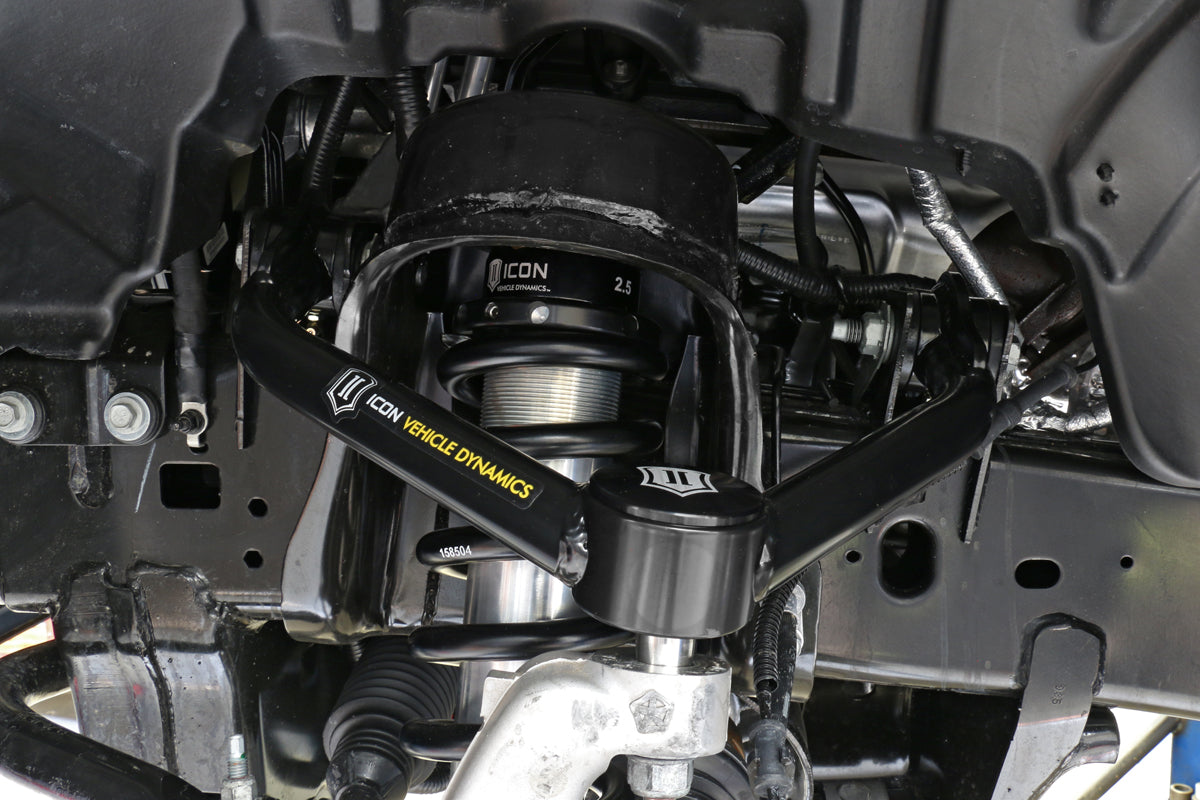

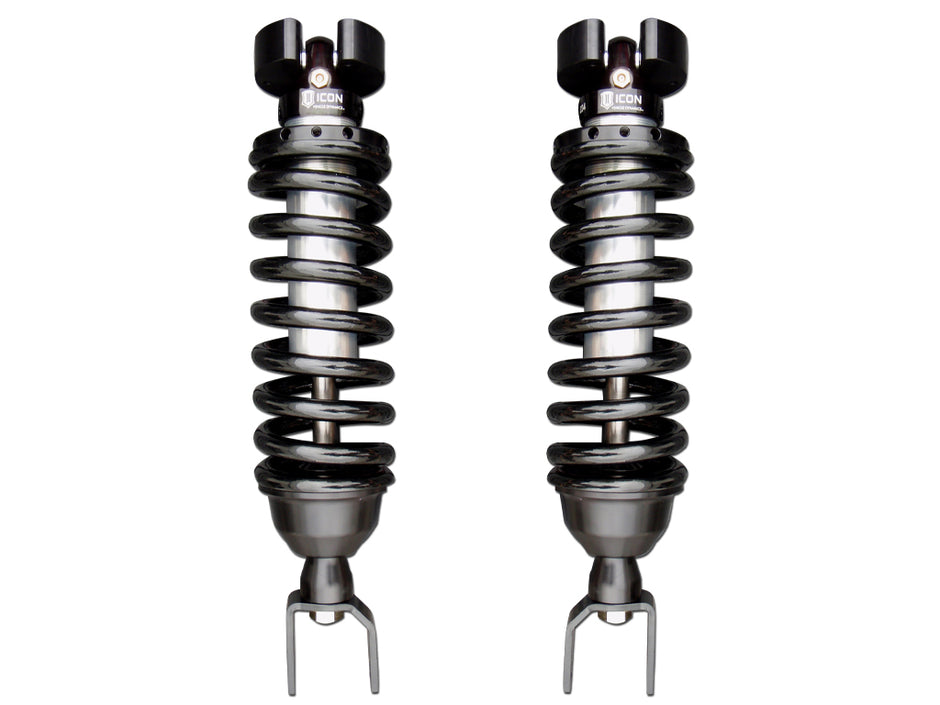

ICON 2019-2026 Ram 1500/2009-2018 Dodge/Ram 1500 4WD Front V.S. 2.5 Series Coilover Kit Internal Reservoir

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

• Adjustable coilovers yield .75-2.5” of front lift height on '09-'18 models or 0-1.5" of lift on '19-26 models
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated shock body with 7/8" shaft
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Bolt-in design makes for an easy install into OEM shock location

Vehicle Specific

• ICON 19-26 RAM 1500/09-18 DODGE RAM 1500 4WD 2.5 VS IR COILOVER KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103400495
• 306: Yes
• 2064: Steel
• 2329: Steel
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9783: Yes
• 10107: 650
• 10527: No
• 10528: Yes
• 10530: Passive
• 10535: 2.5
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Adjustable Damping: NO
• Body Diameter: 2.5
• California Prop 65 Warning: Yes
• Coil Over Springs Included: Yes
• Compressed Length: 17.17
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Type: Oil
• Extended Length: 22.51
• Gas Charged: yes
• Lower Mount Type: Clevis
• Material: Aluminum
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: (2009-UP Models) ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Remote Reservoir: NO
• Reservoir Style: Internal
• Self-Leveling: No
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Shaft Diameter: 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Clevis Holes
• Spring Rate Type: Linear
• Travel Length: 5.34
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 13.0000 x 7.0000 inches
• Weight: 42.0000 POUNDS
