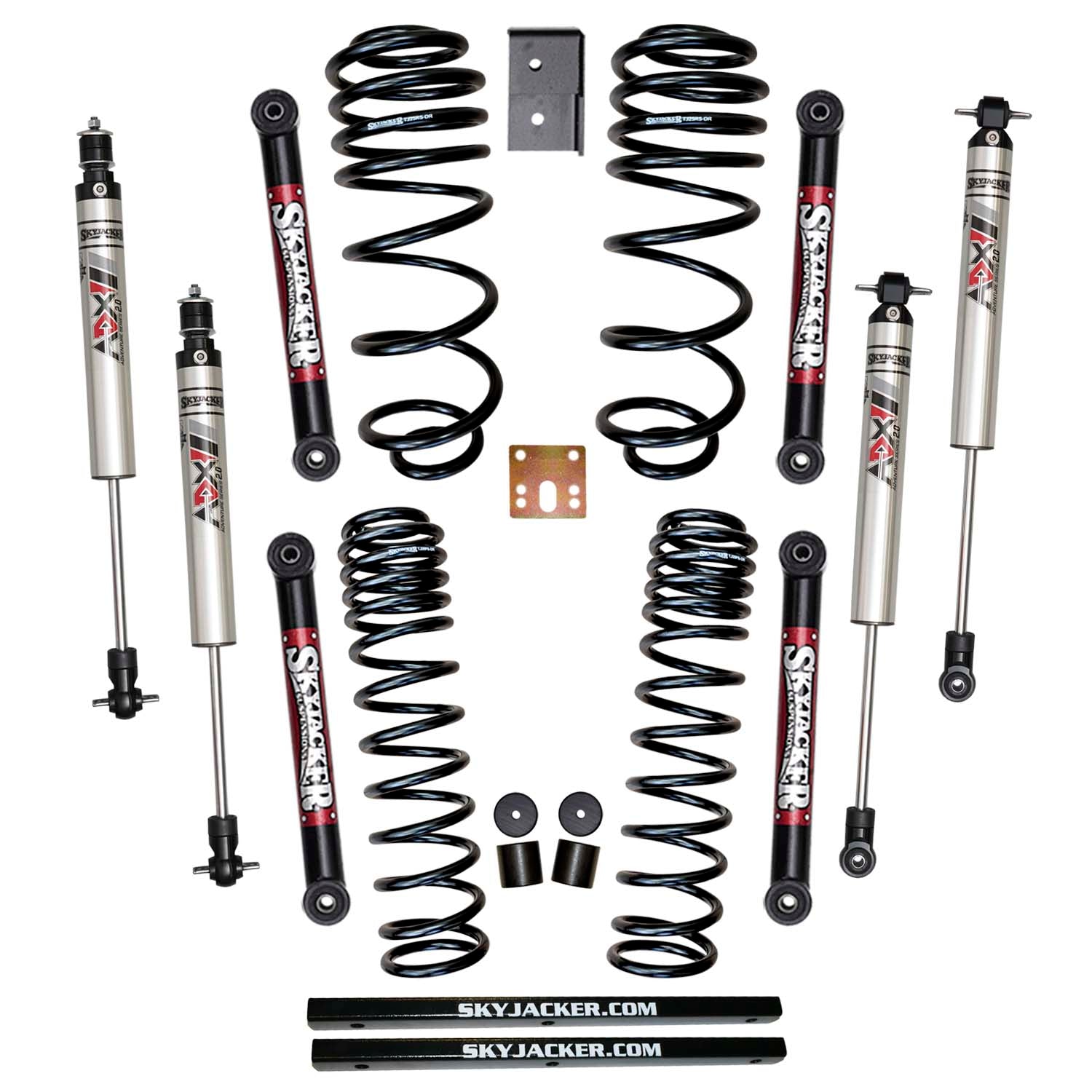

2.5 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

On the Wrangler TJ, coil springs and shocks are primary determining factors in ride quality and suspension performance. Skyjacker 2-Stage Variable Rate Springs deliver a smooth controlled comfortable ride. First Flex Rate stage delivers a comfortable ride with the ability to flex/expand during full articulation as the suspension drops (full droop). This keeps the coil springs seated in the upper coil mount/bucket and the tires in contact with the terrain. Second Ride Rate stage only engages after compression past Flex Rate. Shocks are a key link in-between the chassis and the moving parts of your suspension. Their key role is to optimize your suspension by keeping your tires in contact with the terrain. Skyjacker's ADX M2.0 Adventure Series Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system. Longer Replacement Front and Rear Lower Control Link Arms correct caster angle. Formed from 2-in. OD x 0.250 wall DOM tubing, both pairs of fixed length arms with pressed-in OEM style steel encased rubber bushings at the frame and the axle mounts. A tubular Transfer Case Lowering Kit helps avoid drive shaft vibration by correcting proper driveline angle while retaining as much ground clearance as possible. Transfer Case Linkage Relocation Bracket included. Front and Rear Bump Stop Spacers prevent over-compression. Rear Track Bar Lower Axle Mount Bracket corrects track bar angle to create better handling and a less side-to-side sway.

• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• Straightforward Installation - Simple Sensible Instructions.
• Track Bar Correction Centers Axle Under Vehicle Properly.
• Transfer Case Lowering Kit Corrects Rear Driveshaft Angle.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• Bump Stop Spacers Keep Suspension Travel Safely In Check.
• Complete With All High-Quality Grade Mounting Hardware.
• Flex Stage / Ride Stage Dual Rate Long Travel Coil Springs.
• Front / Rear LCA Fixed Links Correct Caster Angles.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• Improved On-Road Drivability With Off-Road Enhanced Handling.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696301419
• Maximum Lift: 2.5
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
