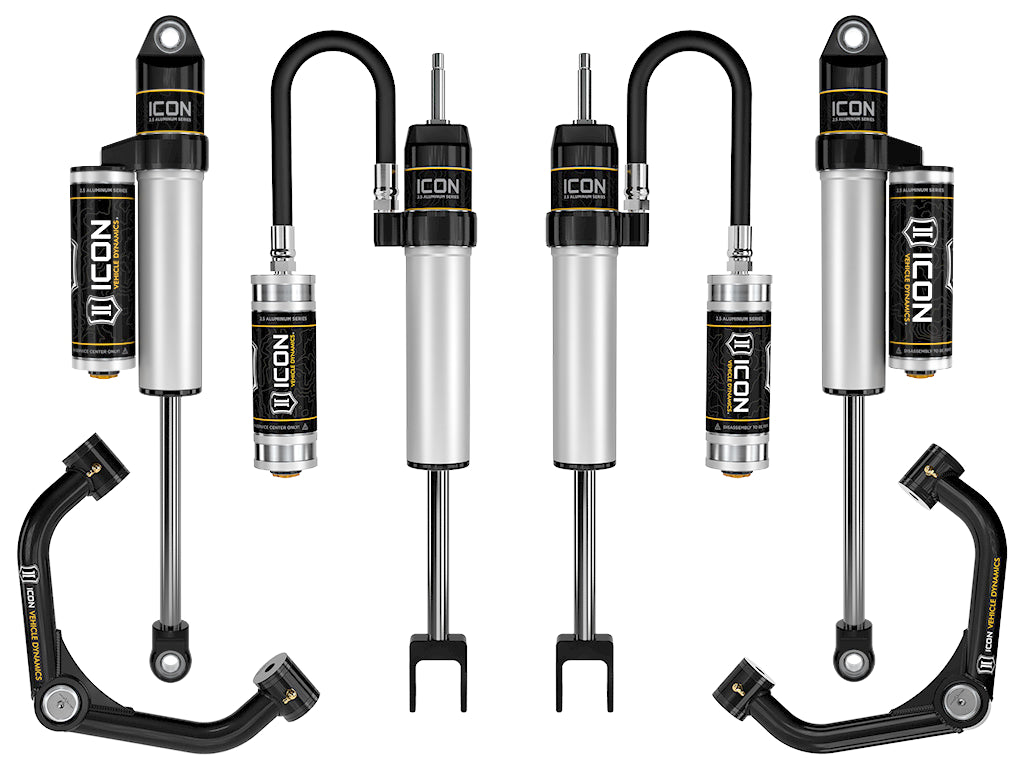

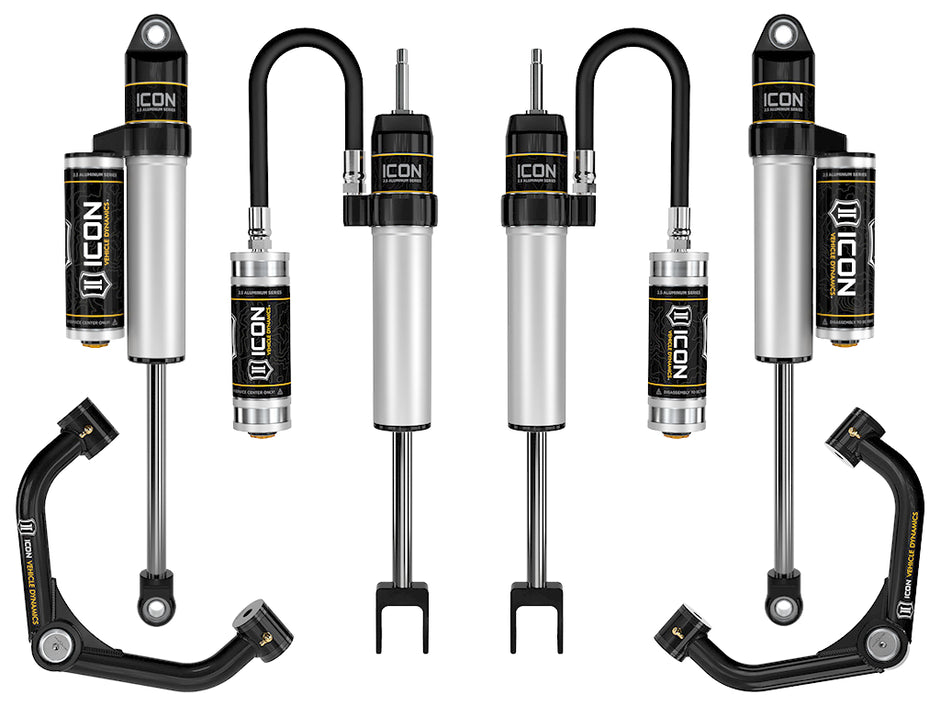

Continue shopping20-UP GM 2500HD/3500 0-2" STAGE 2 SUSPENSION SYSTEM (TUBULAR)
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$3,364.35
-0%
Regular price
$3,364.35
Regular price
$3,364.35
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

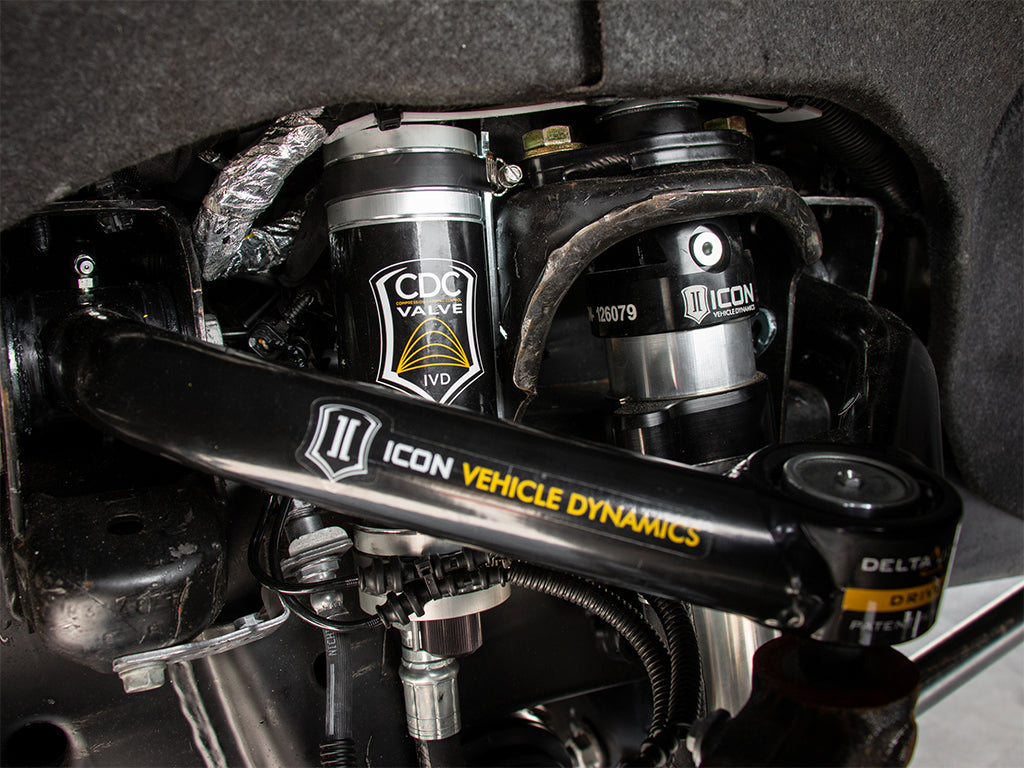

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- 0-2” Adjustable lift height over stock
- Vehicle specific tuned 2.5 Aluminum Series remote reservoir front and rear shocks for superior shock damping and control
- Improved ride quality over stock with no change in towing capacity
- Wheel travel increase of 2" over stock
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant anodized aluminum shock bodies
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103419398
- 30: Yes
- 2371: Yes
- 3097: Yes
- 3390: Performance
- 5520: 2
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
- California Prop 65 Warning: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.5" Backspace / 12mm Offset
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 77.0000 POUNDS
