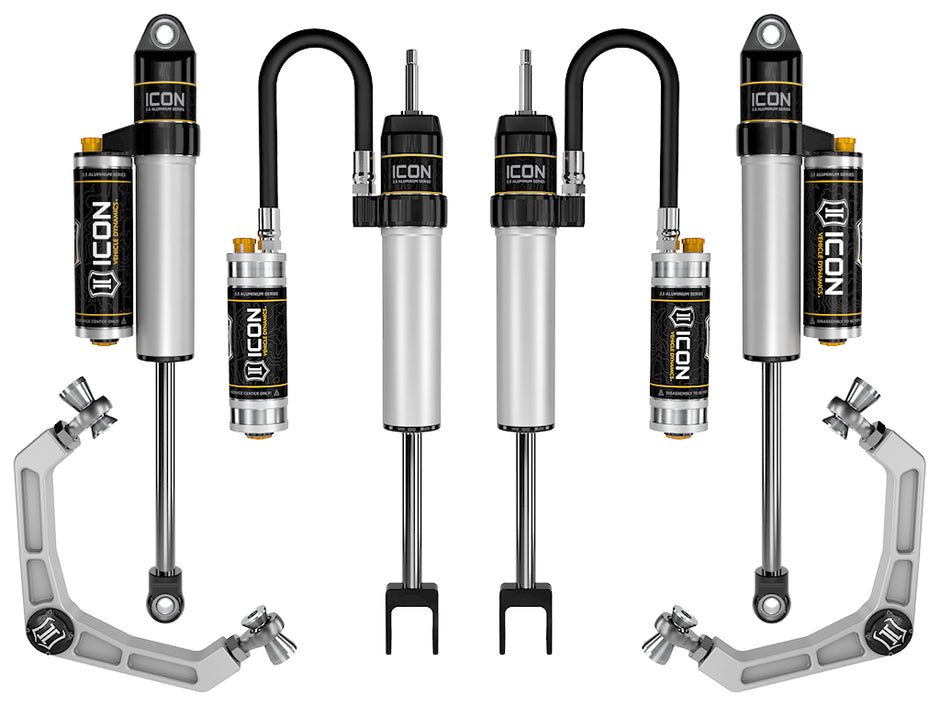

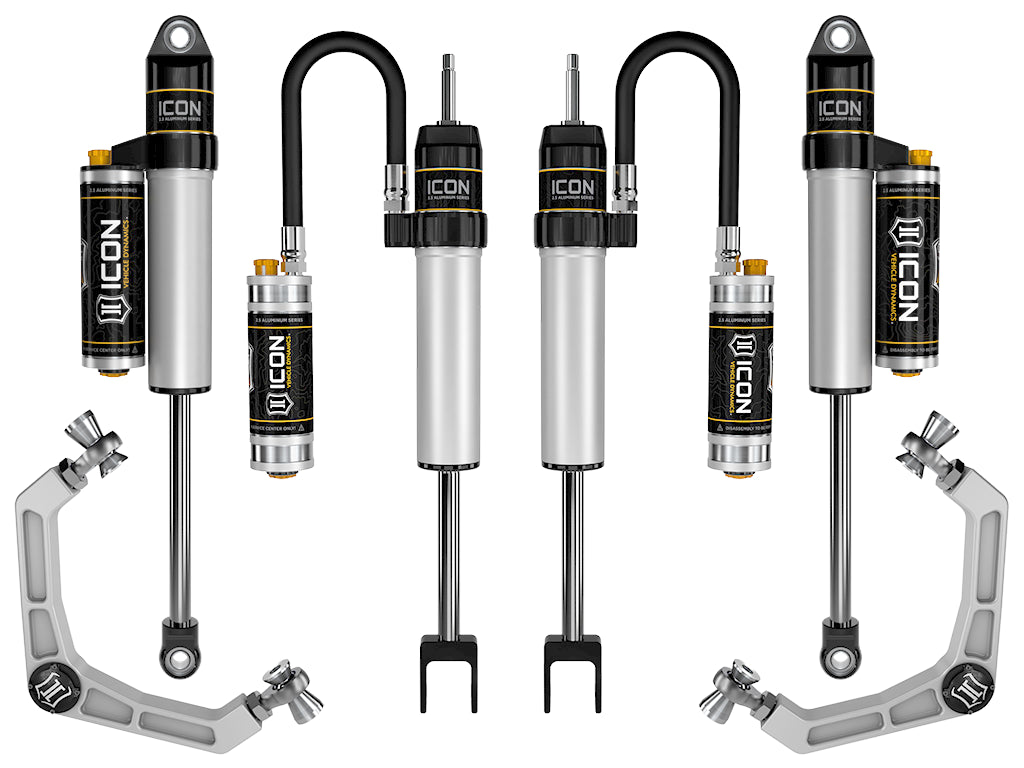

ICON 2020-2026 GM 2500/3500 HD 0-2" Lift Stage 3 Suspension System Billet

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• 0-2” Adjustable lift height over stock
• Vehicle specific tuned 2.5 Aluminum Series remote reservoir front and rear shocks with adjustable Compression Damping Control Valve (CDCV)
• Improved ride quality over stock with no change in towing capacity
• Billet aluminum Delta Joint UCAs allow for additional caster/camber adjustment
• Wheel travel increase of 2" over stock
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant anodized aluminum shock bodies

Vehicle Specific

• ICON 20-26 GM 2500HD/3500 0-2" STAGE 3 SUSPENSION SYSTEM BILLET

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103419404
• 30: Yes
• 2371: Yes
• 3097: Yes
• 3390: Performance
• 5520: 2
• 11410: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Adjustable Compression: Yes
• Adjustable Control Arm: Yes
• Adjustable Damping: Yes
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Damping Adjustment Type: Manual
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5
• Minimum Lift Front: 0
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Piggyback
• Rear Shock Body Diameter: 2.5
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.5" Backspace / 12mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 74.0000 POUNDS
