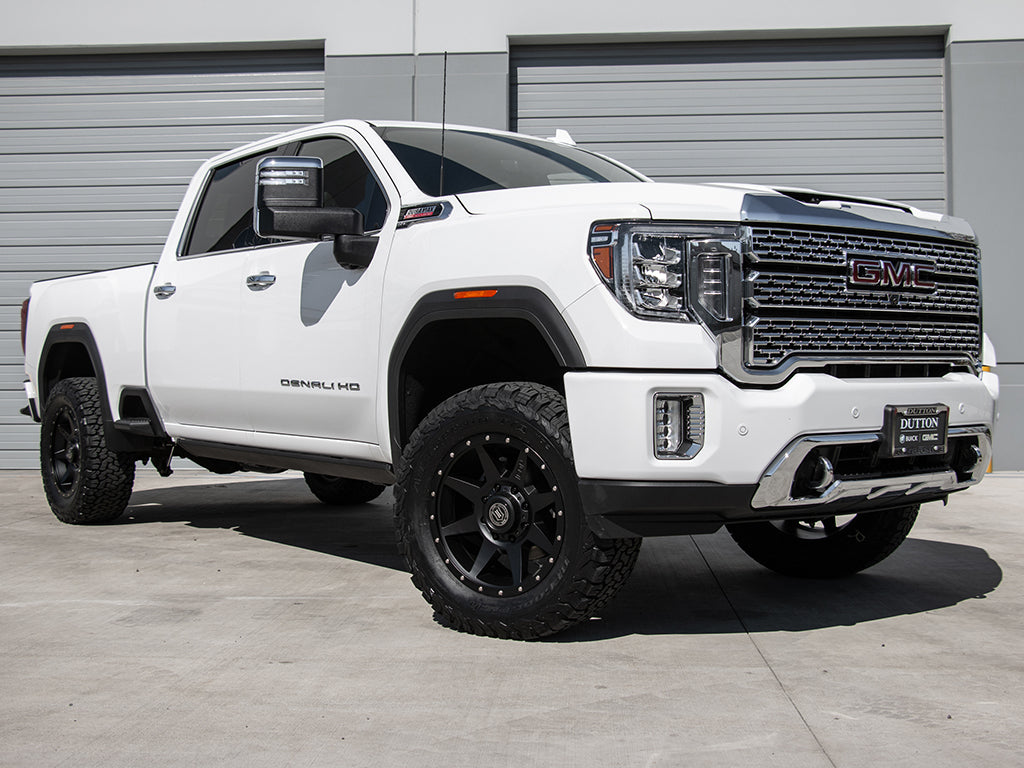

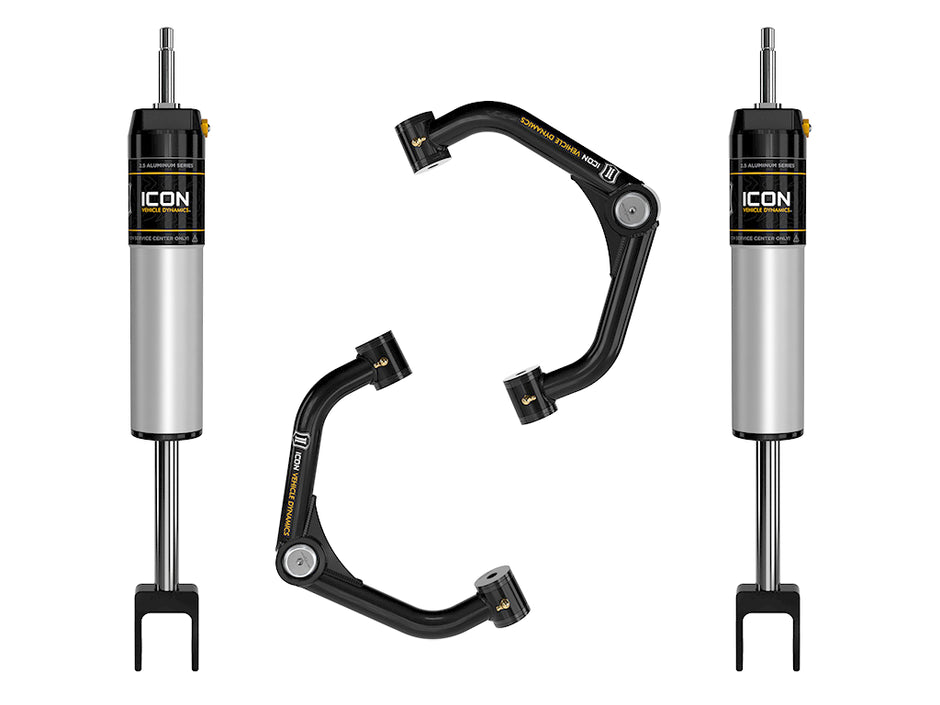

20-UP GM HD 0-2" IR SHOCK SYS W/ TUBE UCA

To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.

• Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• CNC Machined Bushing Housings and Sleeves
• Built-In Caster Correction

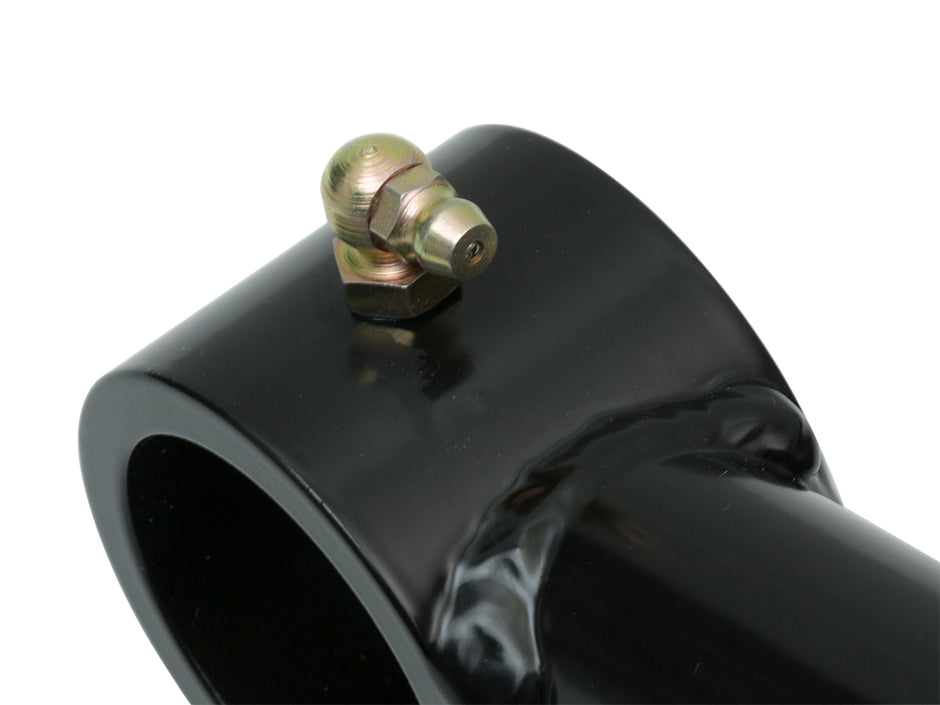

• Serviceable Dual Stage Bushings
• Black Semi-Gloss Powder Coat Finish
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Nitrogen charged monotube design with internal reservoir
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 7/8" diameter induction hardened, chrome plated shock shaft
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable
• 1026 DOM Steel Construction
• CNC Bent Tubing

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103410630
• 30: Yes
• 40: No
• 73: Polyurethane
• 2330: No
• 2339: yes
• 2354: Performance
• 2371: Yes
• 2382: Press In
• 2383: Threaded
• 2384: Yes
• 2386: Tubular
• 2389: DOM Steel
• 3390: Performance
• 4888: Black
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Adjustable Control Arm: No
• Bushing Color: Black
• California Prop 65 Warning: Yes
• Finish: Powdercoated
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.5” Backspace / 12mm Offset
• Service Parts: 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 42.0000 POUNDS
