2003-2018 Cummins 12MM Gorilla Girdle W/ ARP XL Main Studs

2003-2018 Cummins Gorilla Girdle W/ ARP XL Main Studs Before you start, READ AND UNDERSTAND THE INSTRUCTIONS. (12mm ARP 2000, 125 ft lbs) ((14mm ARP, 150 ft lbs)) NOTE: On certain 6.7L Cummins engines that come factory with a windage tray instead of a factory girdle you will be required to get the early style longer oil pickup tube bolts as well as an early style oil pickup tube. We are currently working on a fix for this to prevent any further install issues. Cummins oil pickup tube part number: 3949692 (qty 1) Cummins oil pickup tube bolt part number: 3902460 (qty 2)

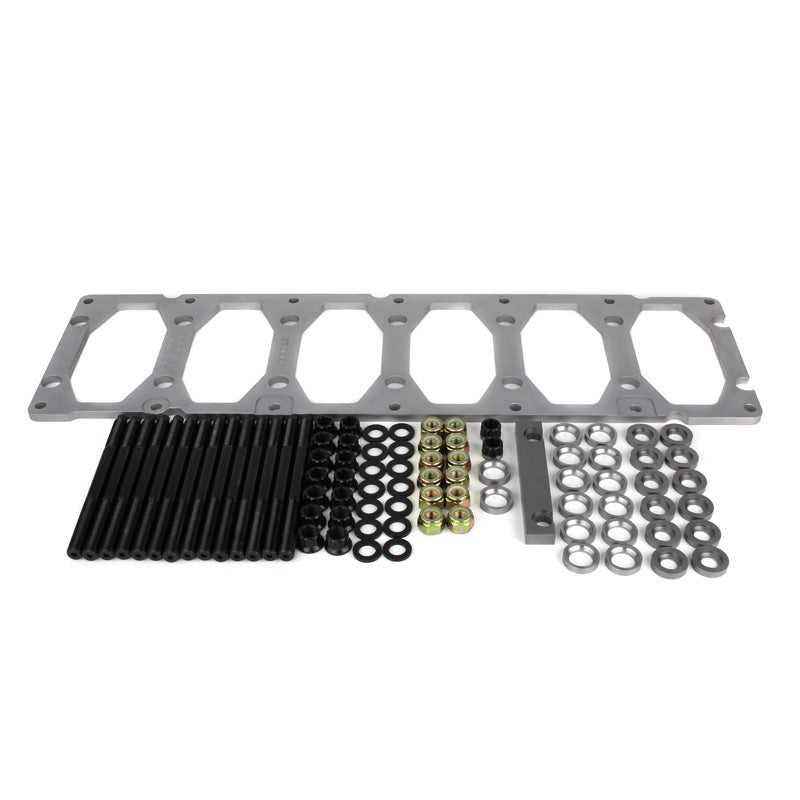

• 1 Gorilla Girdle, 14 top spacers, (large hole)
• 12 bottom spacers (small hole)
• 1 rear main spacer bar
• 2 rear main stud nuts (12 point)
• 12 main stud nuts (Nylock).
• Available in 12mm or 14mm
• 14MM Kit will require a stamped oil pan

Attributes:

• Brand Name: Industrial Injection
• GTIN: 00840256915389

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 35 x 3 x 6 inches
• Weight: 25 POUNDS
