2014-2018 GM 1500 4wd 4" Suspension Lift Kit Alum/Stamped 2" Rear Block - 2.5

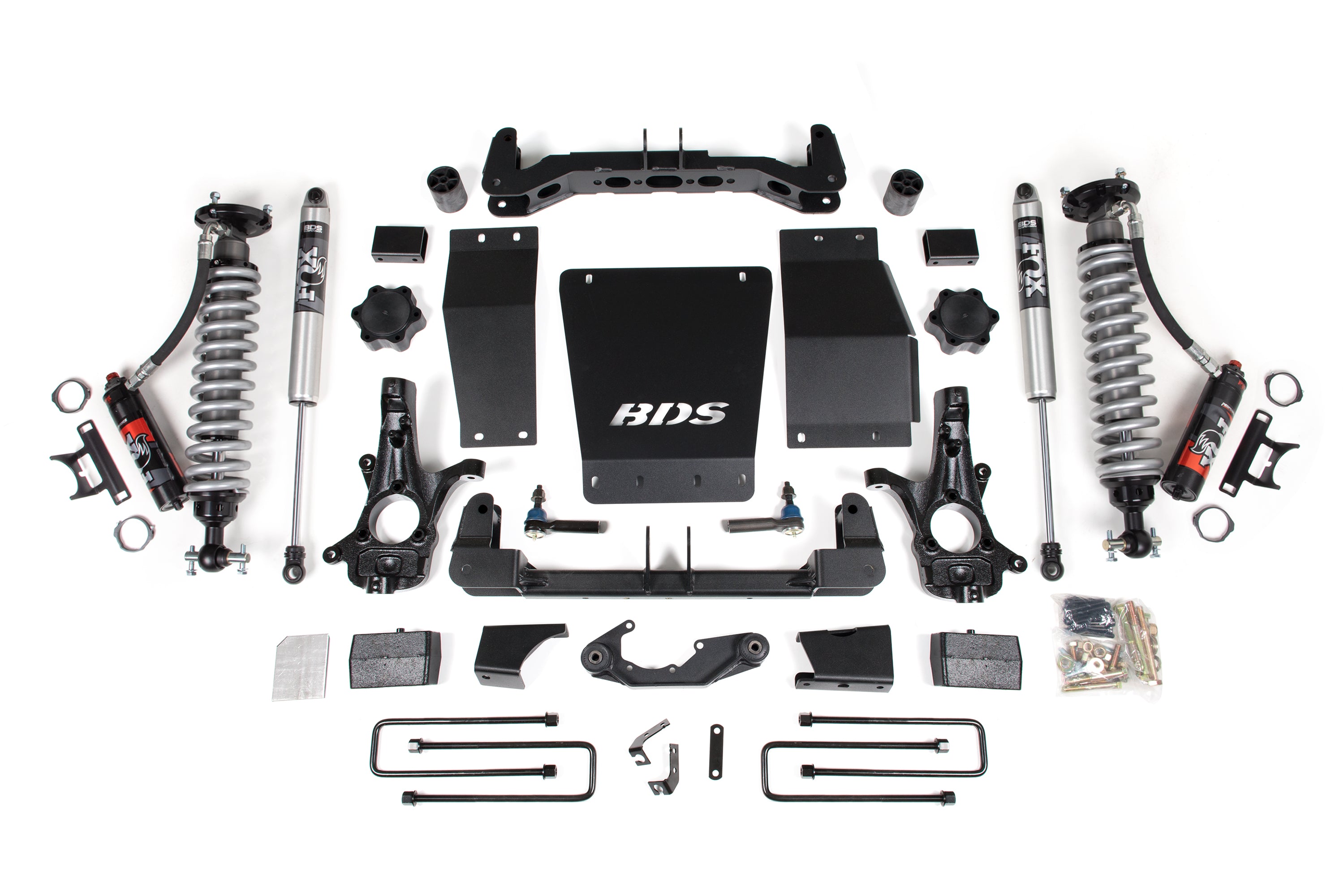

<p>The BDS 4-inch lift kit is an amazing upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 that will leave others in envy. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.</p><p>This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. </p><p> In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks. <h3><strong>High Clearance Crossmembers</strong></h3> BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. <h3><strong>Heavy Duty Steering Knuckles</strong></h3> BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC comp

• • Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
  • The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or

  Attributes:

  • Brand Name: BDS Suspension
  • GTIN: 00840416433937

  Extended Information:

  • Country of Origin:
  • Life Cycle Status: Available To Order

  Packing Information:

  • Quantity of Each:
  • Package UOM:
  • Weight: 0 POUNDS
