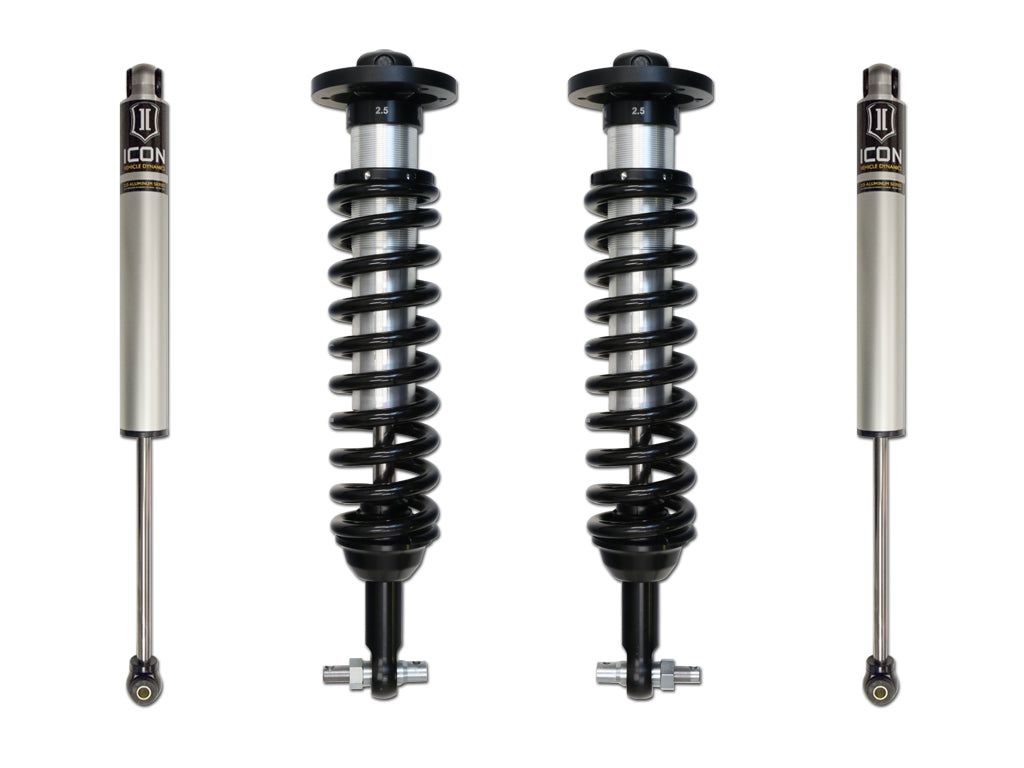

ICON 2014 Ford F-150 2WD 0-2.63" Lift Stage 1 Suspension System

ICON Vehicle Dynamics 2014 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.63” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2014 F150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• 100% bolt-on system - no drilling, cutting, or welding necessary for install
• Unique valving developed for the 2014 F150
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers provide 0-2.63" of lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 aluminum body IFP rear shock with 5/8" polished shaft

Vehicle Specific

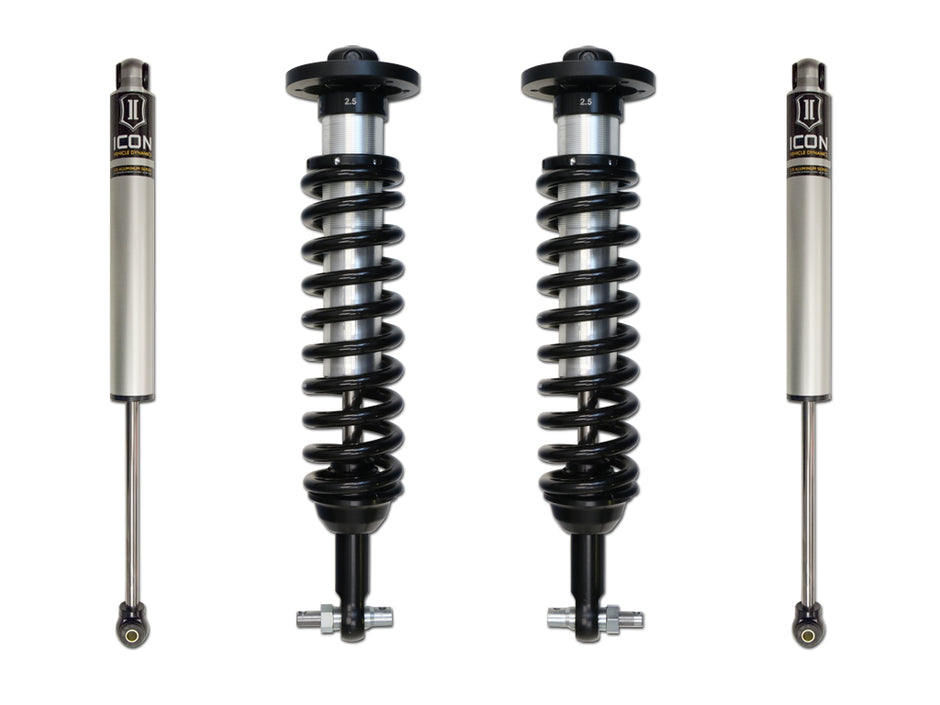

• ICON 2014 FORD F150 2WD 0-2.63" STAGE 1 SUSPENSION SYSTEM

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103419923
• 30: Yes
• 2064: Steel
• 2371: NO
• 3096: Black
• 3097: Yes
• 3390: Performance
• 4427: Black
• 4428: Steel
• 5520: 2.6
• 5778: 3
• 5782: Closed
• 5783: Closed
• 7325: 2
• 9271: Linear
• 10107: 600
• 11410: 2.63
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• California Prop 65 Warning: Yes
• Coil Quantity Front: 2
• Front Reservoir Style: Internal
• Front Shock Body Diameter: 2.5
• Maximum Lift Front: 2.63
• Minimum Lift Front: 0
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Internal
• Rear Shock Body Diameter: 2
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 13.0000 x 7.0000 inches
• Weight: 64.0000 POUNDS
