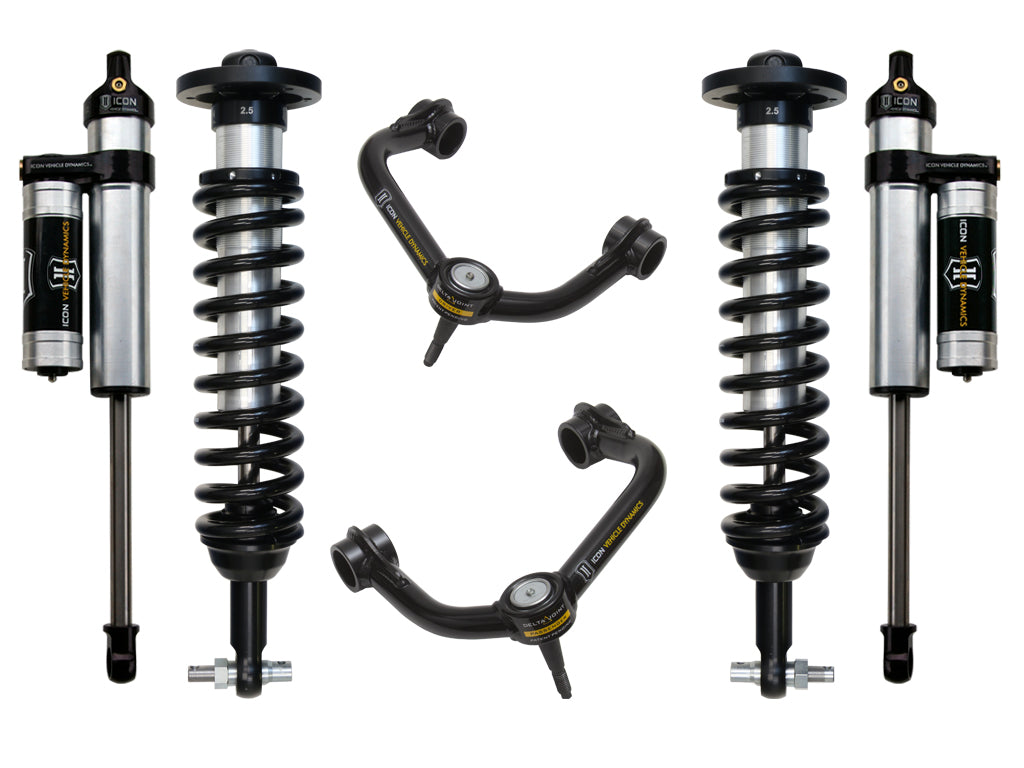

2014 FORD F150 4WD 0-2.63" STAGE 3 SUSPENSION SYSTEM W TUBULAR UCA

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Bolt-on system - No cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers provide 0-2.63" of lift height
• Tubular upper control arms for added strength, durability, and improved alignment geometry
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• High strength alloy CNC machined lower bar pin
• FK Rod End bearings for extended longevity and minimal deflection

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103419879
• 30: Yes
• 2064: Steel
• 2371: NO
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 2.63
• 7325: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• California Prop 65 Warning: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 101.0000 POUNDS
