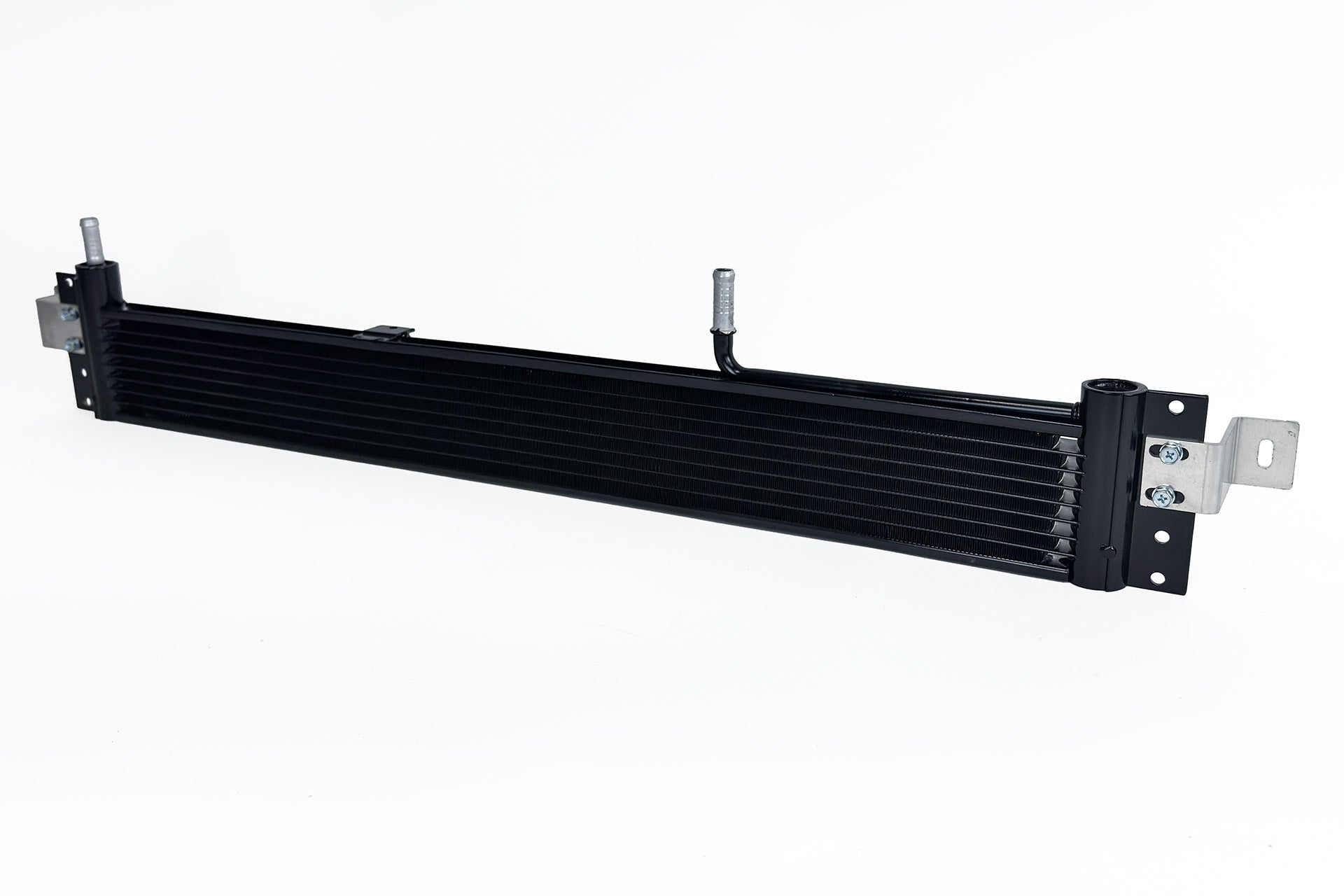

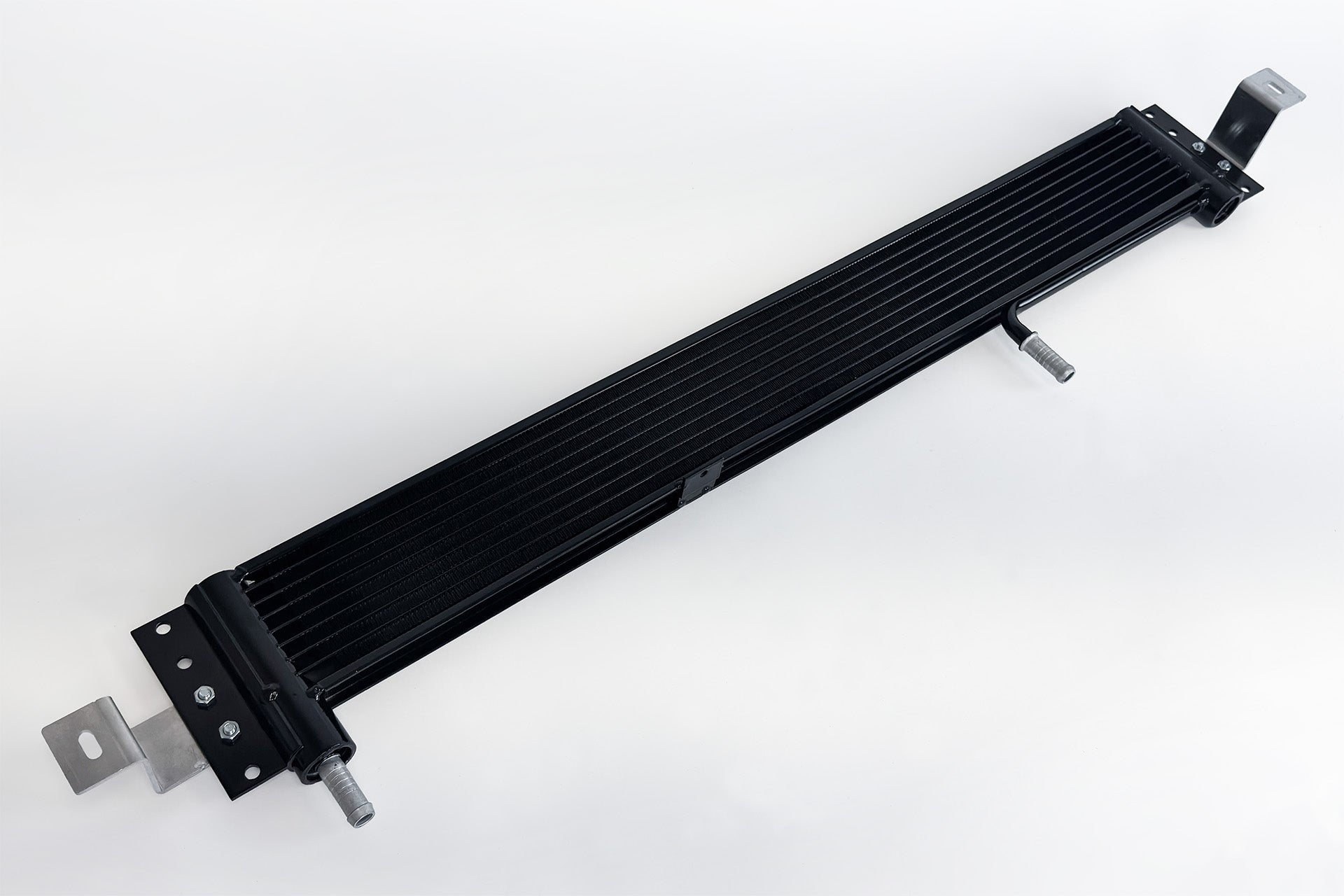

2015-2025 Ford F-150 & Raptor High-Performance Transmission Oil Cooler

The 13th and 14th Generation F-150s received what many would consider undersized transmission oil coolers. Some models like the Raptor even have a second stack style cooler to improve the cooling performance. Sadly, this setup still comes up short for many owners. Upgrading to the CSF Cooler gives you: 40% larger than the factory cooler, Dramatically improved heat dissipation compared to OEM units, and 8 rows of 8mm tall multi-louvered fins for exceptional cooling performance. The CSF cooler outperforms even the dual cooler configuration in Raptor and high performance models

• Made with CSF's AC Condenser Technology Using a 1-Row Super-High Pressure 26mm 10-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
• 8 Rows of 8mm Tall Multi-Louvered Fins
• Welded All-Aluminum Construction
• OEM Style Inlet/Outlet Connections

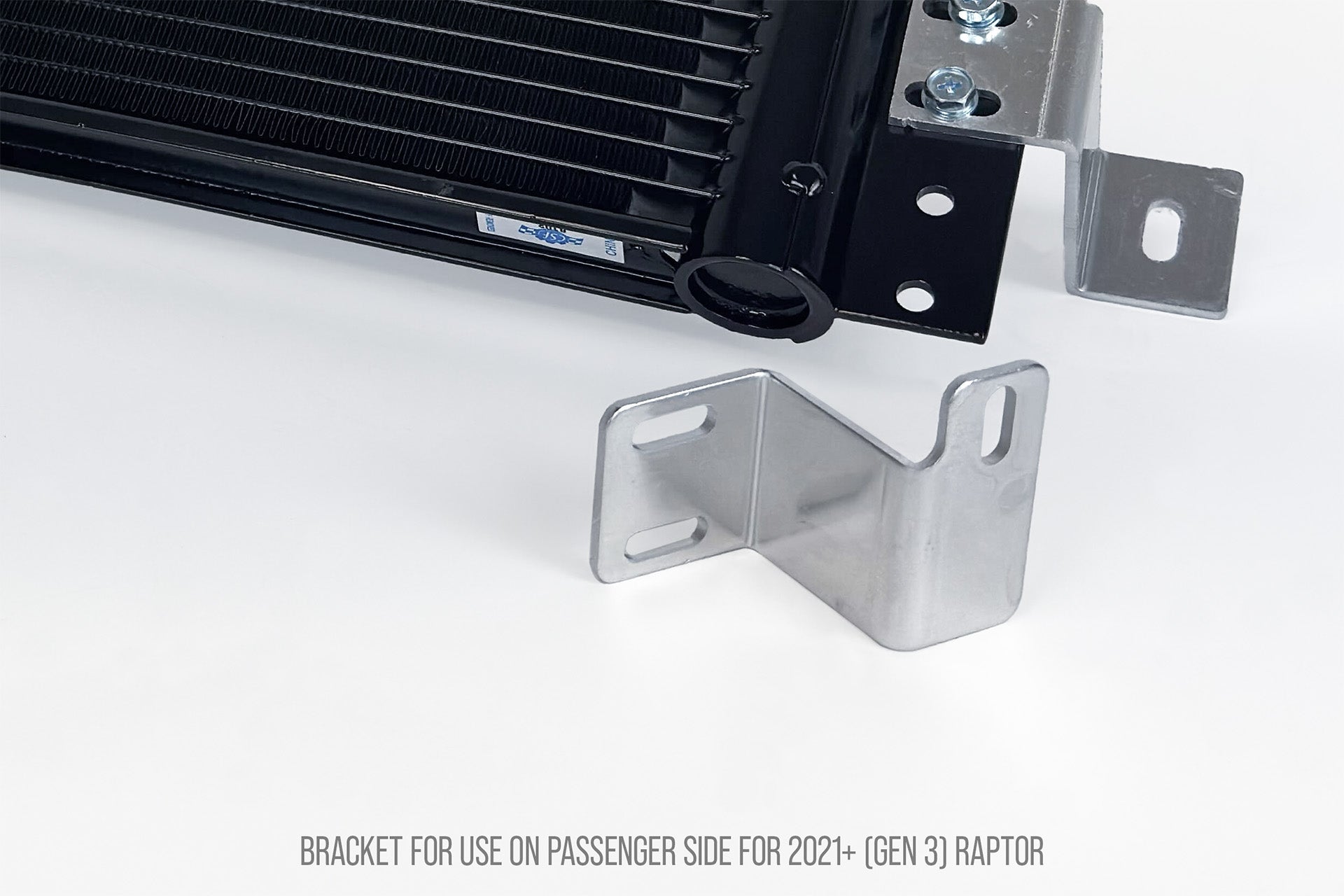

• Laser Cut Mounting Brackets
• 40% Larger than factory cooler
• Drop-in Fit Requires No Modifications to Install
• Black Finish for OEM+ Look
• 2-Year Limited Warranty

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353081020
• ADD-ON: 8095
• Core Height: 3.7 in.
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 26mm
• Core Tube Width: 26mm
• Core Width: 29.2 in.
• Electric Fan: No
• Finish: Black
• Finish/Color: Black
• Grade Type: Performance
• Housing Color: Black
• Inlet Attachment Type: Quick Connect
• Installation Type: Drop-In Fit Installation
• Line Included: No
• Material: Aluminum
• Mounting Hardware Included: No
• Outlet Attachment Type: Quick Connect
• Strap Included: No
• Thickness: 32mm

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 42 x 6 x 10 inches
• Weight: 5 POUNDS
