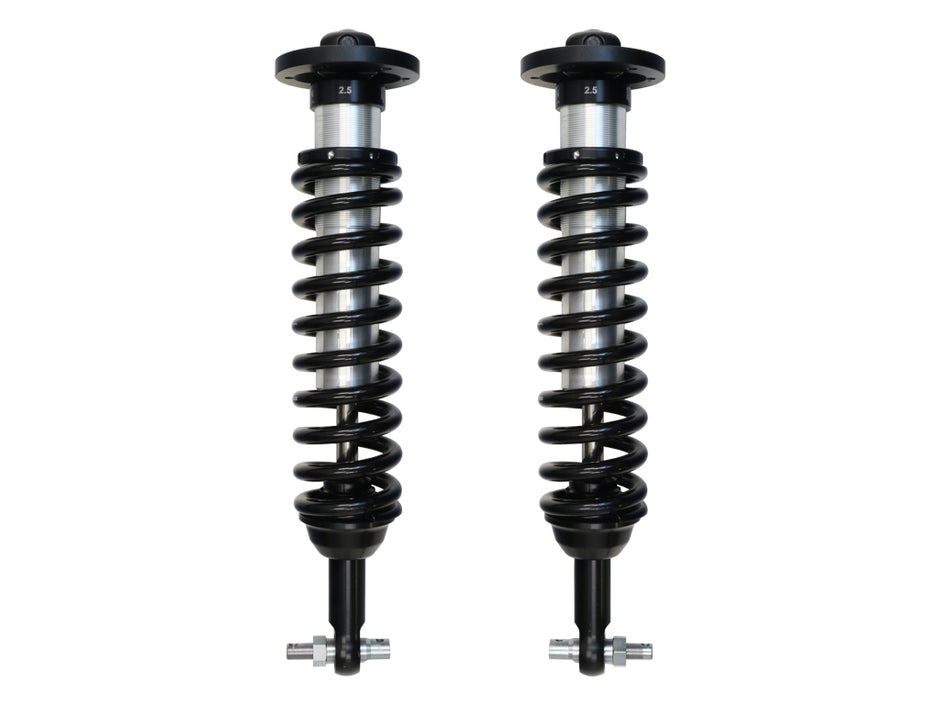

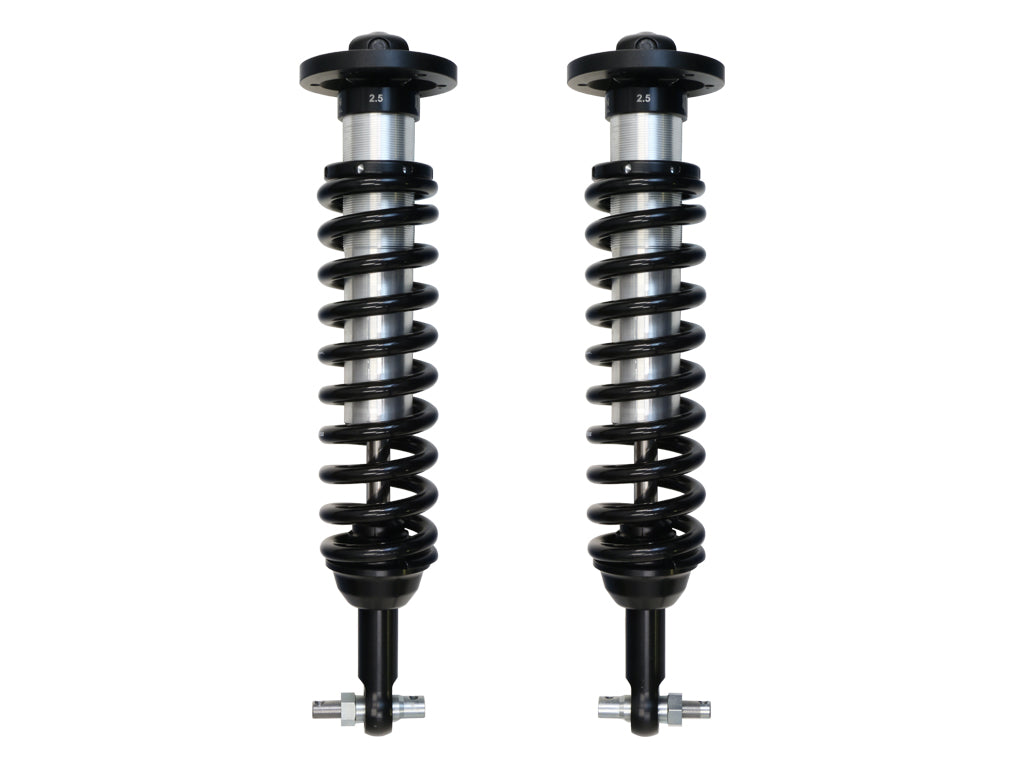

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2015-2020 Ford F-150 2WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 0-3” lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
- Increased wheel travel and ride quality over stock
- 100% Bolt-on - no drilling,cutting or welding necessary for installation
- Unique valving developed for the lighter weight of the 2015+ F-150
- Vehicle specific tuned for superior shock damping and control
- Adjustable 0-3" lift height
- ICON engineered Eibach Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103406923
-
306: Yes
-
2064: Steel
-
2329: Steel
-
3085: Single Tube
-
3096: Black
-
3390: Performance
-
7233: No
-
8703: No
-
9783: Yes
-
10107: 600
-
10527: No
-
10528: Yes
-
10530: Passive
-
10535: 3
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
-
Adjustable Damping: NO
-
Body Diameter: 2.5
-
California Prop 65 Warning: Yes
-
Coil Over Springs Included: Yes
-
Compressed Length: 17.22
-
Cylinder Color: Silver
-
Cylinder Finish: Cadmium Plated
-
Damping Type: Oil
-
Extended Length: 22.58
-
Gas Charged: yes
-
Lower Mount Type: BAR PIN
-
Material: Aluminum
-
Maximum Lift: 3
-
Minimum Lift: 0
-
OEM Wheels & Tires Fitment: Yes
-
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
-
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
-
Remote Reservoir: NO
-
Reservoir Style: Internal
-
Self-Leveling: No
-
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
-
Shaft Diameter: 0.875
-
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
-
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
-
Spring Rate Type: Linear
-
Travel Length: 5.37
-
Upper Mount Type: Mounting Plate
-
Valving Type: Digressive
Extended Information:
-
Country of Origin: United States
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 26.0000 x 13.0000 x 7.0000 inches
-
Weight: 54.0000 POUNDS
