Continue shopping2019-2023 Ford Ranger 3.5" Lift System W/ OE Aluminum Knuckle Only
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$1,239.85
-0%
Regular price
$1,239.85
Regular price
$1,239.85
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
<p>Improve the performance and style of your 2019-2023 Ford Ranger truck by installing this 3.5-inch lift kit from BDS. Specially designed for the new Ranger, this 3.5" leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.</p>
<p>To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer. To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. </p>

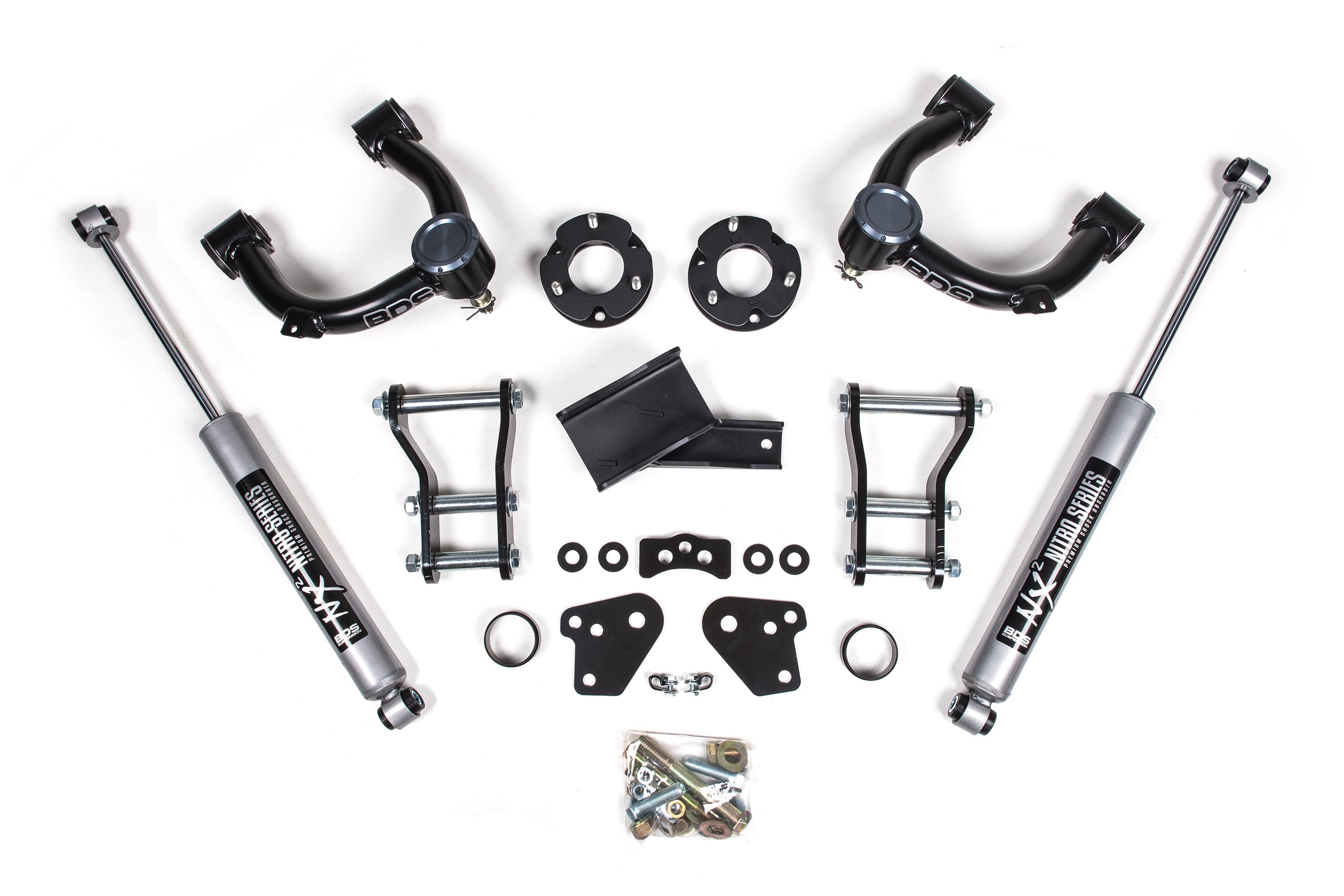

<p>Up front, the lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets and tubular upper control arms. In the rear, this kit includes heavy duty lift shackles and custom-tuned NX2 Nitro or FOX Performance series shocks. </p>
<h2>HD Upper Control Arms (UCAs)</h2>
<p>Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.</p>
-
- Easy, 100% Bolt-on installation
- Maintains factory like ride quality
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum perf
Attributes:
- Brand Name: BDS Suspension
- GTIN: 00840416403268
Extended Information:
- Country of Origin: US
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each:
- Package UOM:
- Weight: 0 POUNDS
