Continue shopping2019-2024 Ram 3500 4" Radius Arm Gas - 3" Rear Block W/ Air Bag - NX2 Shocks
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$2,222.98
-0%
Regular price
$2,222.98
Regular price
$2,222.98
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description

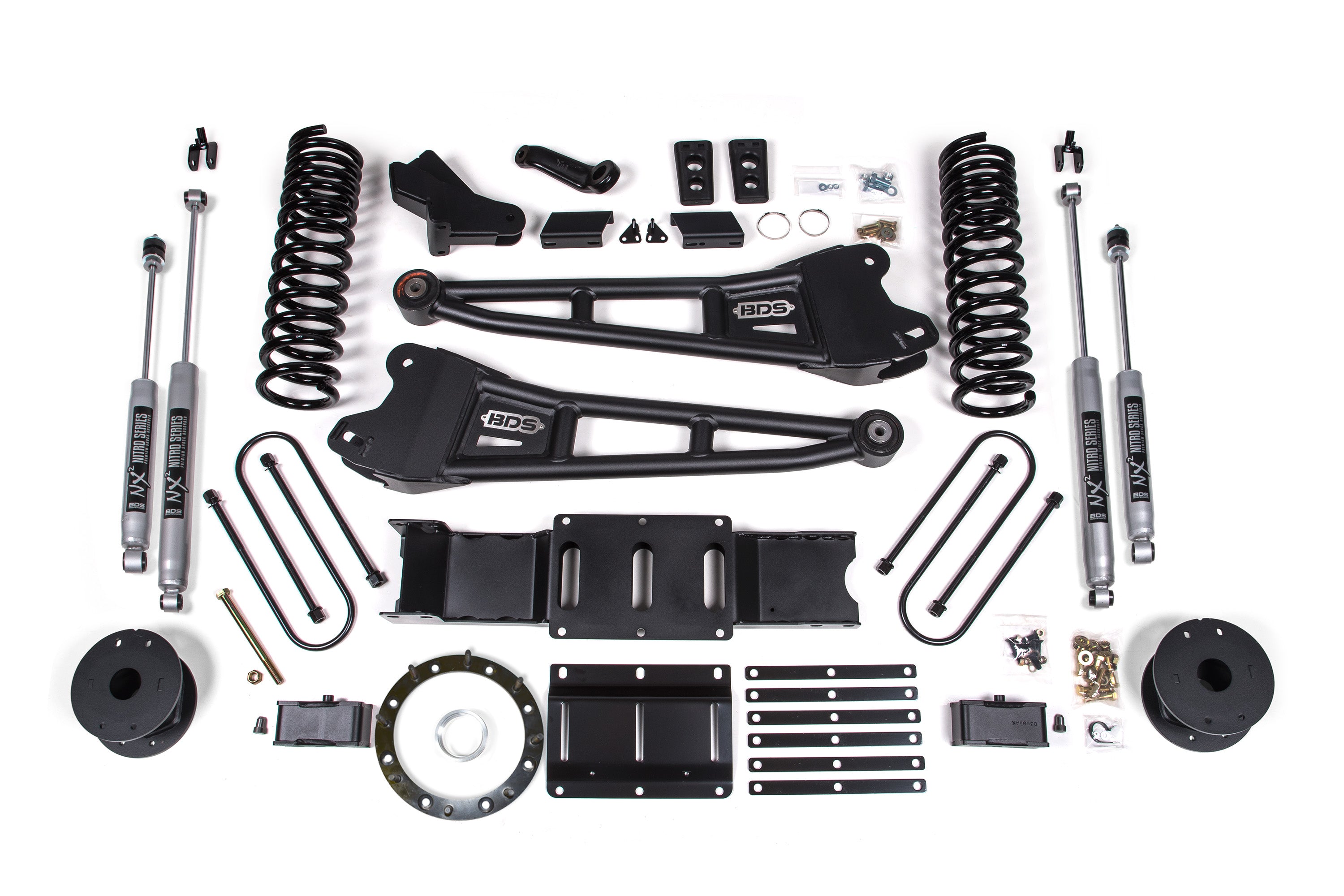

<p>Take your factory rear air bag equipped RAM 3500 gas powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.</p>
<p>Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.</p>
<p>At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.</p>
<h2>HD Radius Arms</h2>
<p>In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.</p>
<h2>Pro-Ride Coil Springs</h2>
<p>A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.</p>
<h2>Steering Correction</h2>
<p>To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.</p>
-
- Heavy duty tubular radius arms improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
Attributes:
- Brand Name: BDS Suspension
- GTIN: 00840416407884
Extended Information:
- Country of Origin:
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each:
- Package UOM:
- Weight: 0 POUNDS
