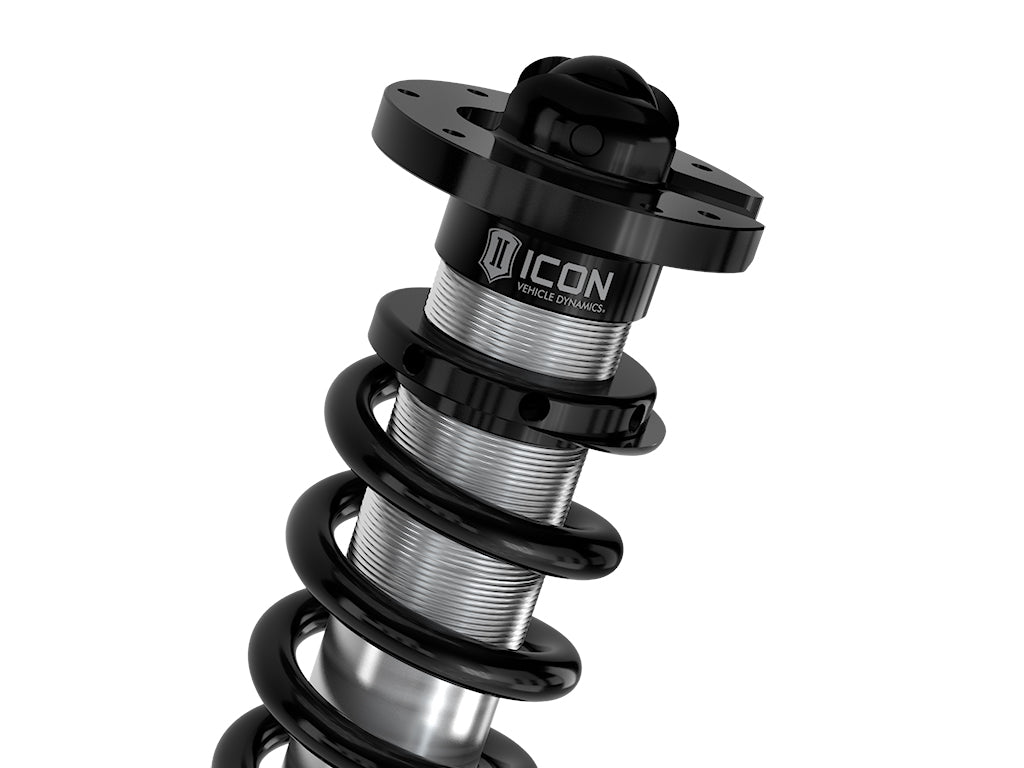

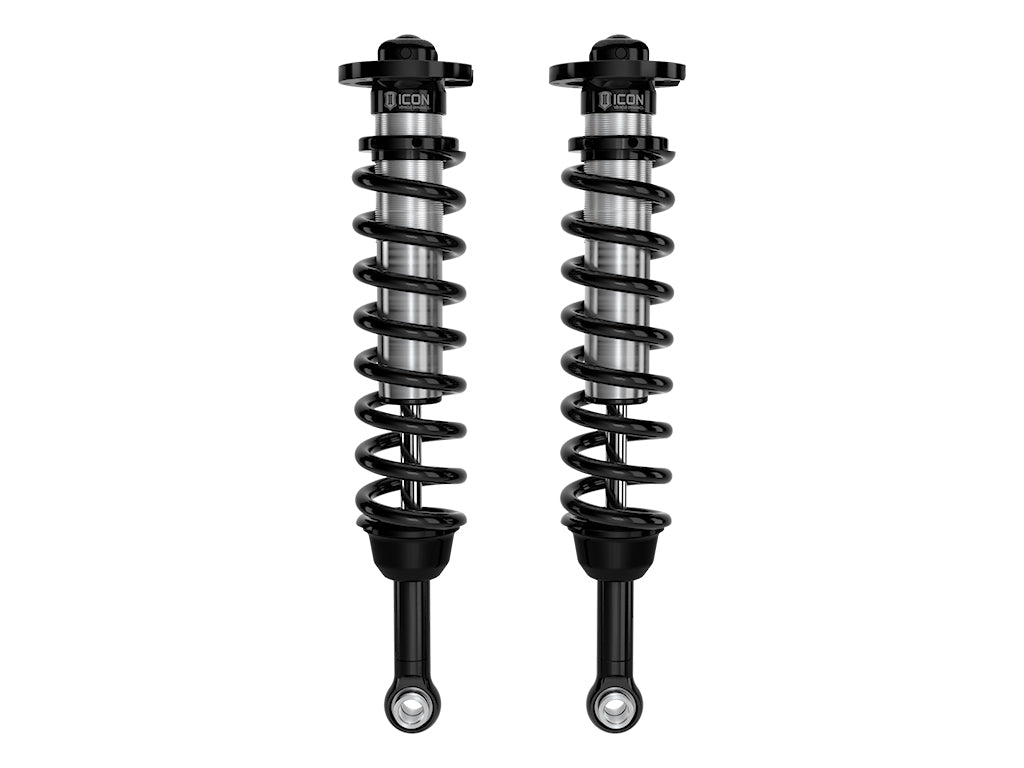

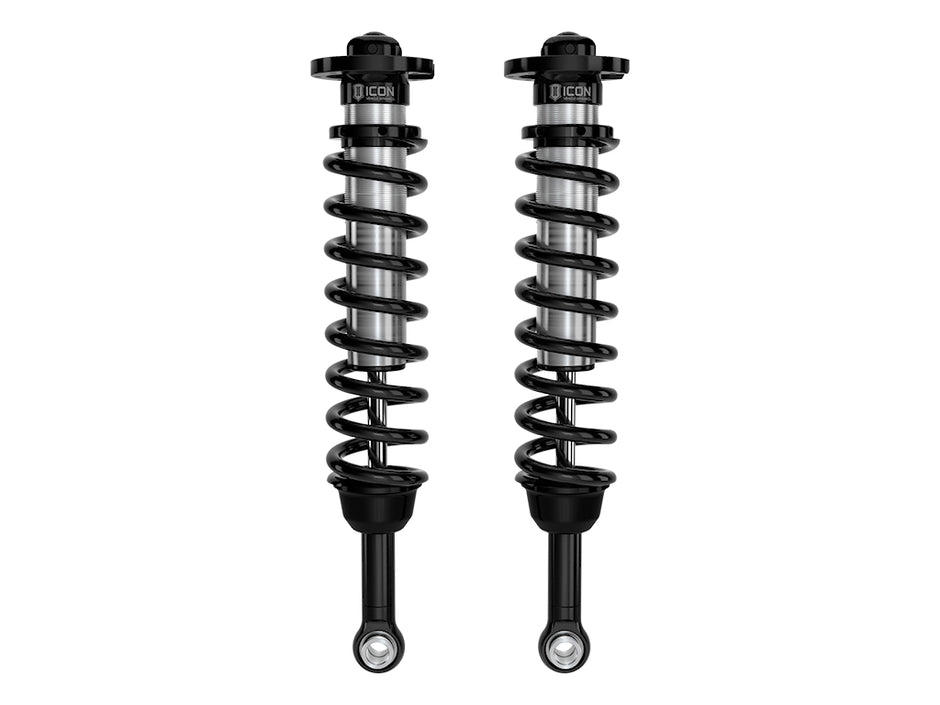

Continue shopping2022-2023 Toyota Land Cruiser 300 Series 2.5 VS Internal Reservoir Coilover Kit Front
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$1,663.95
-0%
Regular price
$1,663.95
Regular price
$1,663.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Land Cruiser 300 Series. These adjustable coilovers allow up to 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 300 Series.
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable ride height offers 1-3" of front lift over stock
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- ICON 22-23 LC 300 2.5 VS IR COILOVER KIT
Attributes:
- Brand Name: ICON Vehicle Dynamics
- GTIN: 00840103423524
- 306: Yes
- 2064: Steel
- 2329: Steel
- 3085: Single Tube
- 3096: Black
- 3390: Performance
- 7233: No
- 8703: No
- 9476: No
- 9783: No
- 10107: 550
- 10527: No
- 10528: Yes
- 10530: Passive
- 10535: 3
- AAP_UDA_12: EA
- AAP_UDA_22: 1
- AAP_UDA_4: 55
- Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
- Adjustable Damping: No
- Body Diameter: 2.5
- California Prop 65 Warning: Yes
- Coil Over Springs Included: Yes
- Compressed Length: 19
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Damping Type: Oil
- Extended Length: 25.46
- Gas Charged: Yes
- Lower Mount Type: Eyelet
- Material: Aluminum
- Maximum Lift: 3
- Minimum Lift: 1
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Reservoir Style: Internal
- Self-Leveling: No
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Center of Eyelet
- Shock Absorber Rod End Measuring Point: Top of Mounting Plate
- Spring Rate Type: Linear
- Travel Length: 6.46
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 31.0000 x 13.0000 x 7.0000 inches
- Weight: 56.0000 POUNDS
