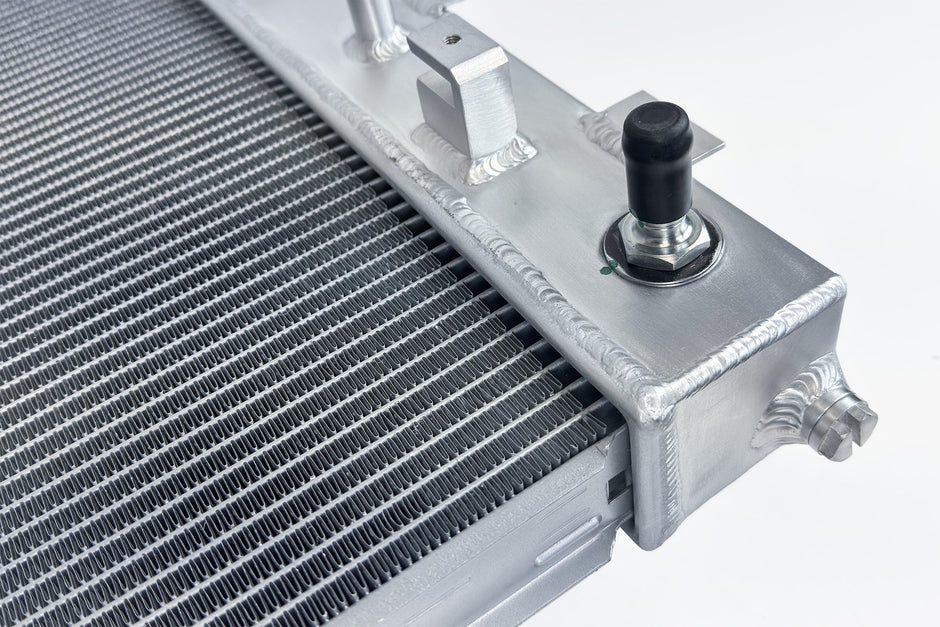

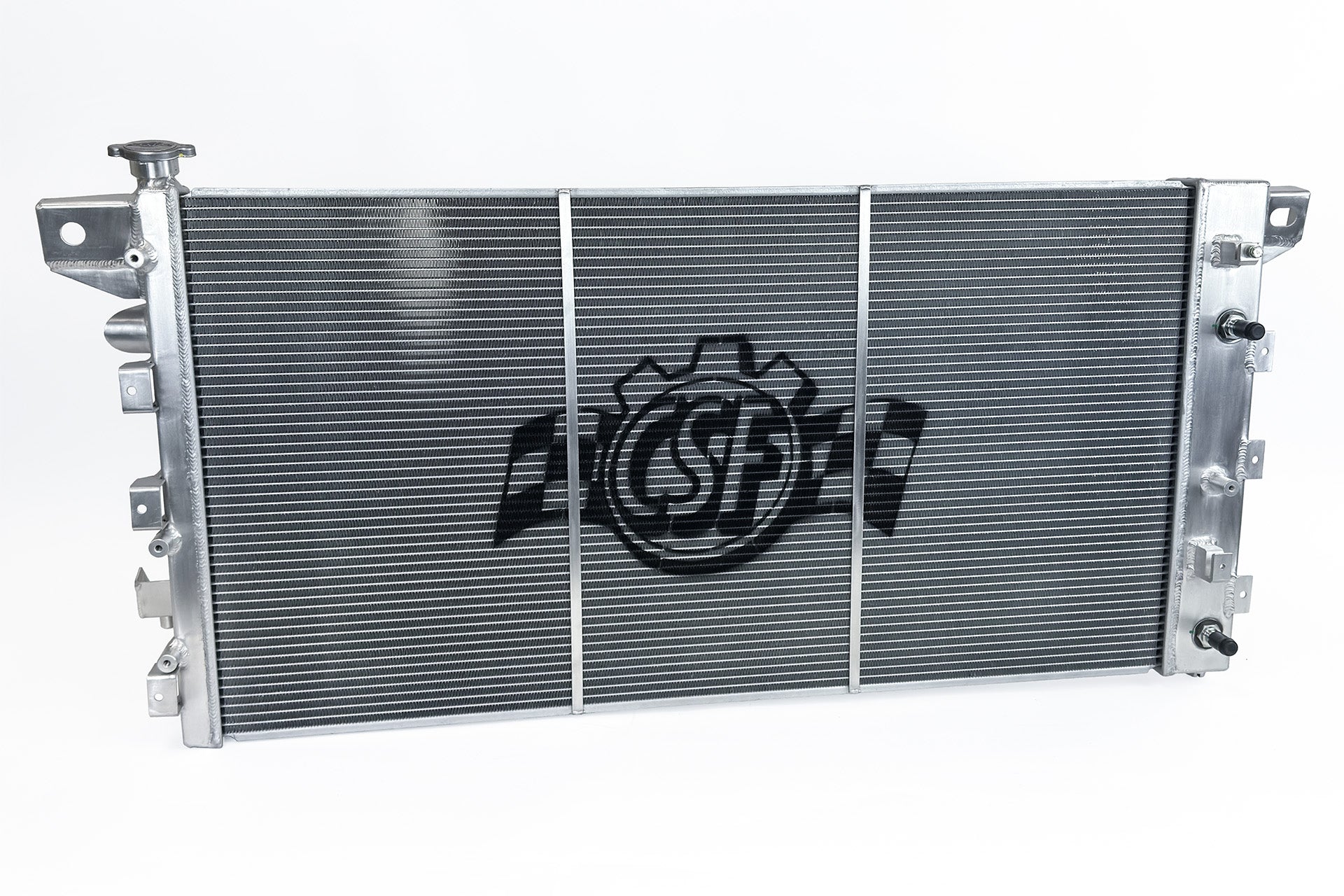

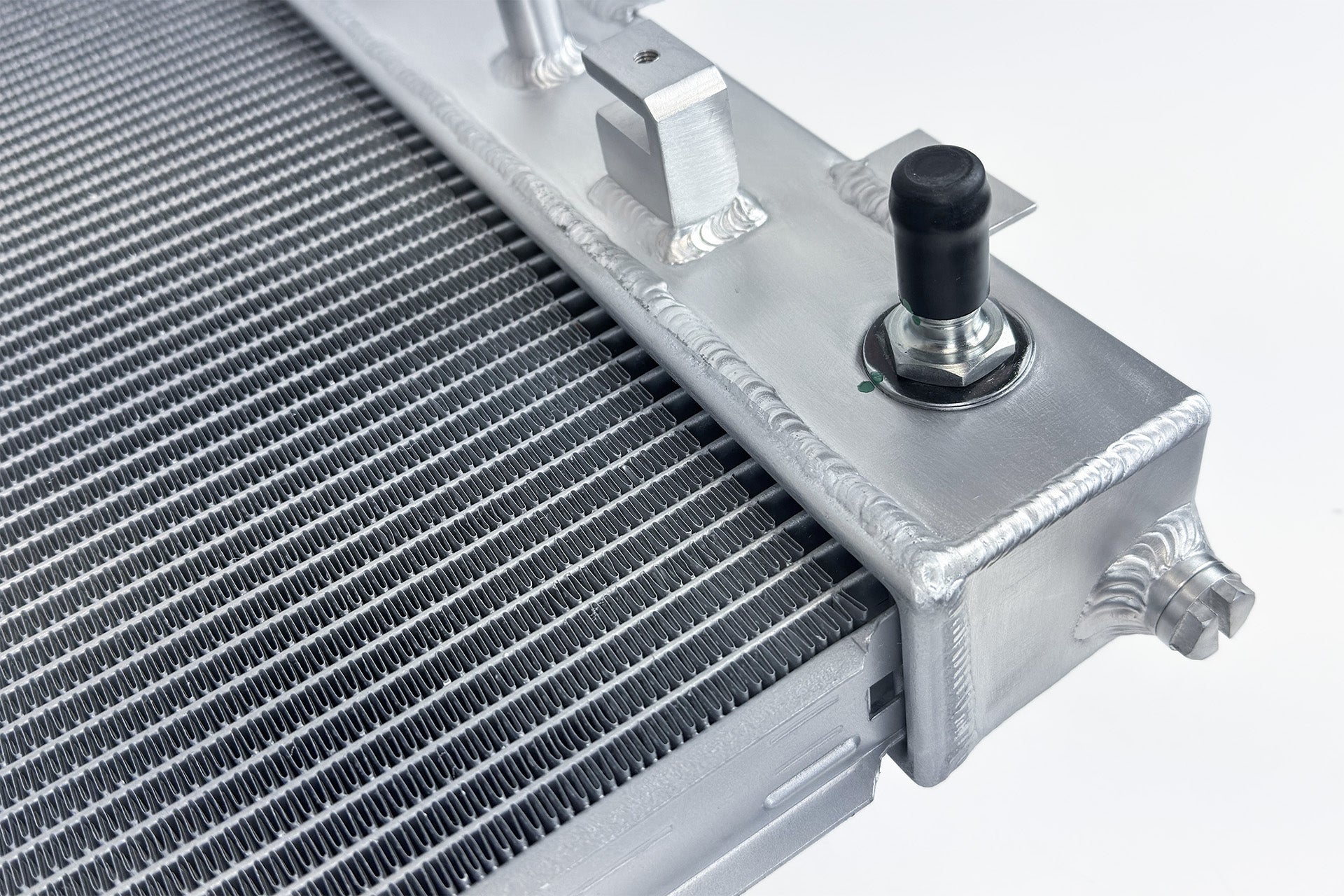

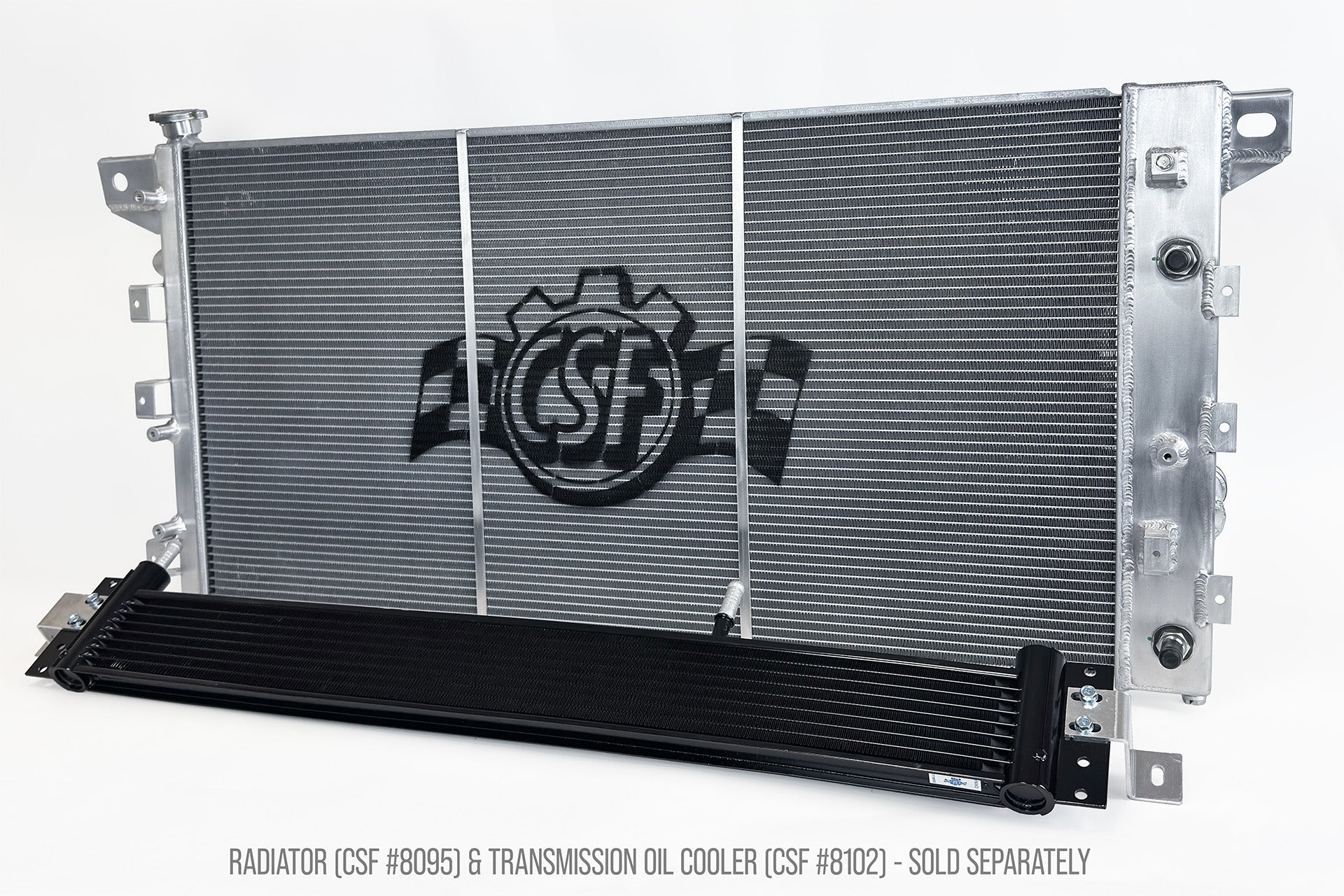

2nd Gen Raptor & 13/14th Gen F-150 Heavy-Duty All-Aluminum Radiator

While some owners never pushed their rigs hard enough to notice, those who did quickly found the factory system lacking. In addition, these trucks are getting to the age where radiators need to be replaced as a maintenance item. If you are going to be doing the labor, you might as well install the best possible radiator. Upgrading to the CSF Radiator offers: 60% larger core volume than the factory radiator. 100% TIG welded Aluminum construction (compared to plastic end tanks crimped). Core straps for strength and added rigidity for extreme reliability in demanding conditions. Ideal for turbo upgrades, high power/boost builds, towing, and off-roading.

• 2-Row - 42mm Ultra-High-Performance Core
• 2-Year Limited Warranty
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Pins and Brackets
• OEM Style Inlet/Outlet
• Core straps for strength and added rigidity
• 100% All Aluminum TIG-Welded Construction
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353080955
• ADD-ON: 8102
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 882.5mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 42mm
• Core Width: 449mm
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Satin
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 38mm
• Inlet Location: Top Right
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Quick Connect
• Outlet Diameter: 38mm
• Outlet Location: Bottom Left
• Radiator Cap Included: Yes
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: ID
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 46 x 24 x 10 inches
• Weight: 29 POUNDS
