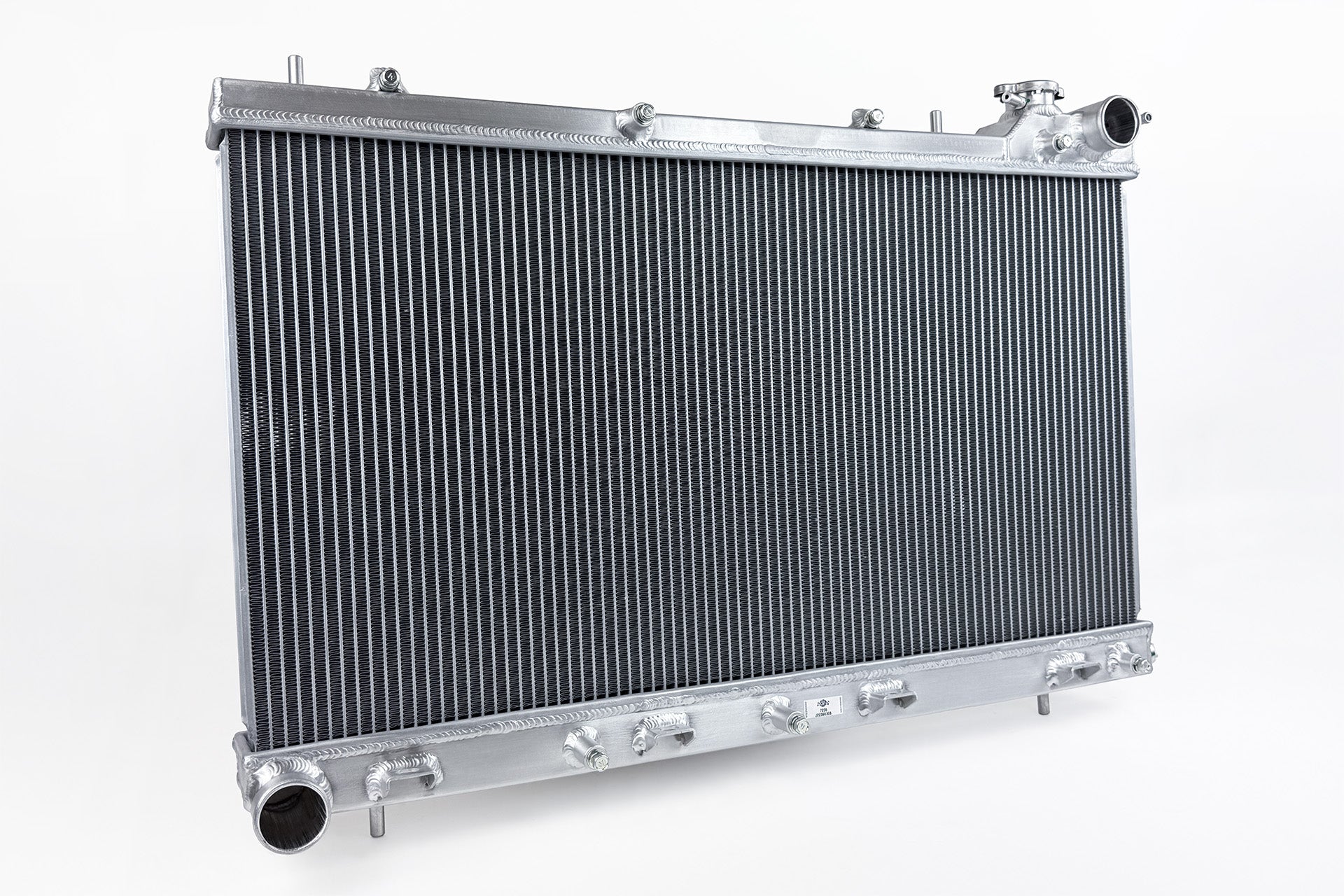

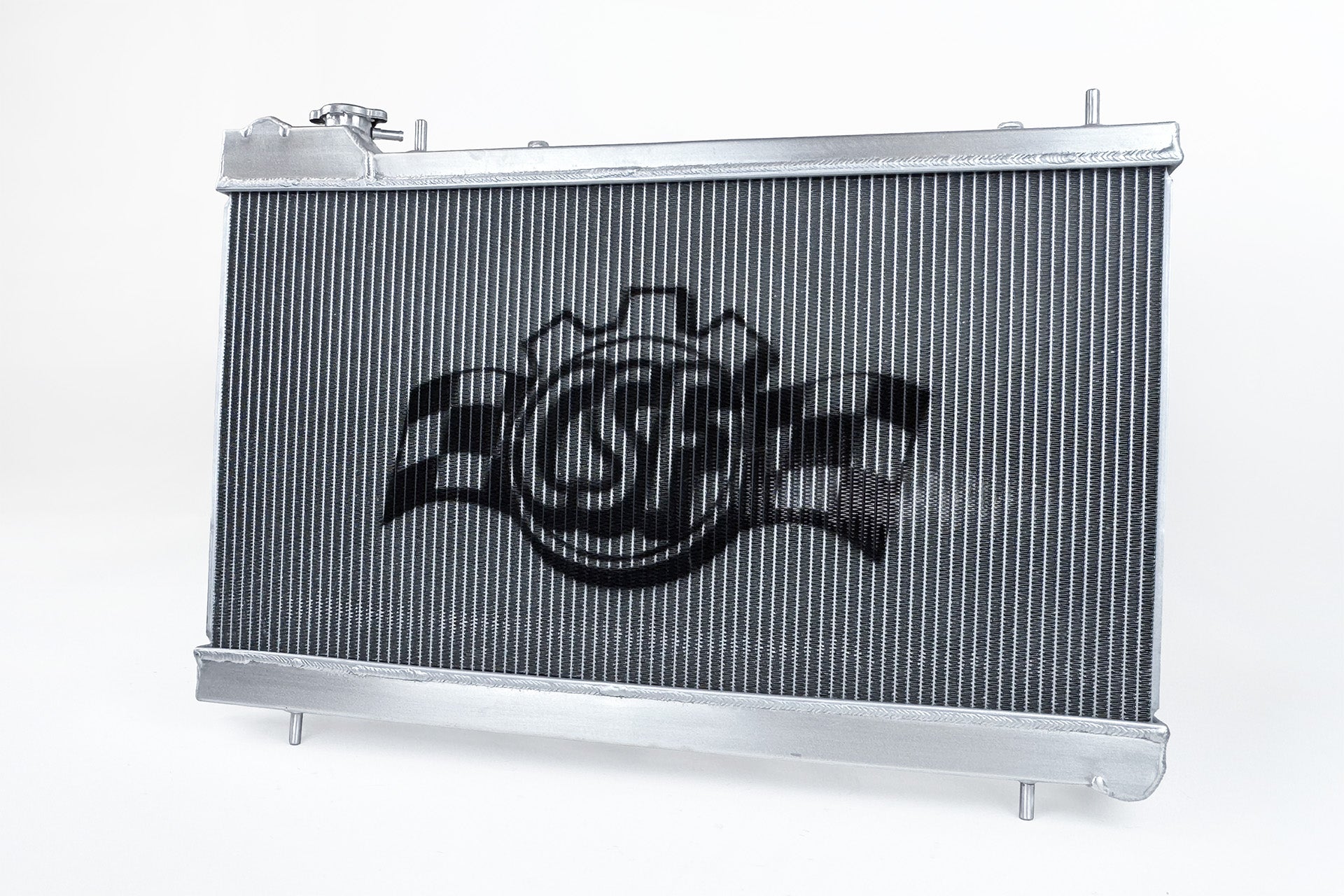

The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.
- 2-Row - 42mm Ultra-High-Performance Core
- 2-Year Limited Warranty
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction
- Hand Brushed Satin Finish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
- Individually Leak and Pressure Tested
Attributes:
-
Brand Name: CSF Cooling - Racing & High Performance Division
-
GTIN: 00710353072356
-
ADD-ON: 7235B
-
Coolant Hose Inlet Connection Type: OE Type Connection
-
Coolant Hose Outlet Connection Type: OE Type Connection
-
Core Height: 362mm
-
Core Material: Aluminum
-
Core Row Quantity: 2
-
Core Thickness: 42mm
-
Core Width: 686.5mm
-
Down Flow Or Cross Flow Type: Down Flow
-
Finish/Color: Satin
-
Frame Included: No
-
Grade Type: Performance
-
Inlet Connector Type: Slip On
-
Inlet Diameter: 40mm
-
Inlet Location: Top Right
-
Installation Type: Drop-In Fit Installation
-
Internal Engine Oil Cooler: No
-
Internal Transmission Oil Cooler: No
-
Mounting Hardware Included: No
-
Mounting Type: Mounts with OE Hardware
-
Outlet Connector Type: Slip On
-
Outlet Diameter: 40mm
-
Outlet Location: Bottom Left
-
Radiator Cap Included: Yes
-
Tank Material: Aluminum
-
Thermostat Included: No
Extended Information:
-
Country of Origin: Indonesia
-
Emissions : 4
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 31 x 22 x 6 inches
-
Weight: 17 POUNDS
