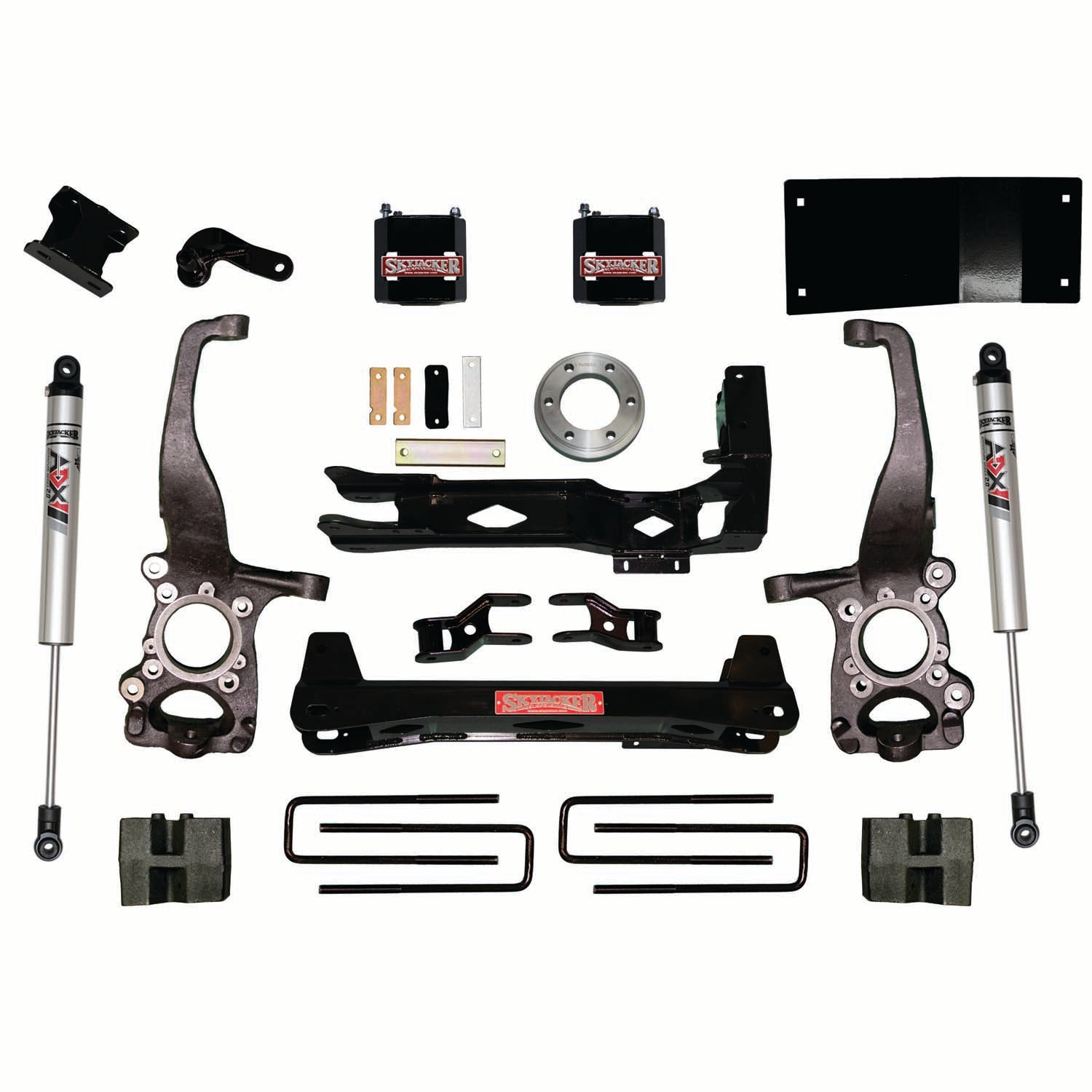

4.5 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

Mixing work and play driving, you need taller tires for ground clearance. Raising the suspension clearance of your F-150, gives you room to run larger, more aggressive tires. With Skyjacker's all-in lift kit, you get unparalleled performance with uncompromised strength and maximum clearance. Skyjacker's unique rear crossmember incorporates the driver side sway bar drop bracket for strength and stability. Coupled with a passenger side sway bar drop bracket, the OEM sway bar operates at optimum angles. The pair of sturdy front and rear crossmembers provides a solid mounting point for the OEM lower control arms. A differential skid plate tie the two crossmembers together to create a rigid sub-frame and added protection for vital steering and driveline components. Three separate differential relocation brackets reposition and correct front CV axles and driveshaft angles. Retain your front Ford OEM tuned performance struts by utilizing top mounted strut spacers. Precise engineered 1-piece strut spacers have a specific ?Pitch and Index' offset to preserve CV extension and to prevent CV axle overextension within the OEM tolerances. Exacting engineered CNC machined ductile iron replacement steering knuckles preserve the OEM track width and maintain proper steering geometry through the travel cycle. Aligns to OEM specifications and works properly with Electric Stability Control (ESC) system. This all-inclusive kit has front and rear brake line relocation brackets, a CNC machined 6061-T6 aluminum front driveshaft spacer, rear driveshaft carrier bearing lowering bracket, cast ductile iron rear blocks with longer U-bolts and lock nuts. Rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever.

• 1-Piece Top Strut Spacers Have A Specific Pitch / Index Offset.
• Diff Brackets And Driveshaft Spacer Correct Driveshaft Angle.
• Knuckles Keep Same Steering Geometry And Turning Radius.
• Three Separate Diff Brackets Reposition / Correct CV Angles.
• ADX M2.0 Aluminum Monotube Provides Better Heat Dissipation.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• ADX M2.0 Teflon Banded Piston's True Reaction Adds Stability.
• Ample Room For 34's With Proper Wheel Offset / Spacing.
• CNC Machined Ductile Iron Knuckles Preserve OEM Track Width.
• Crossmembers With Skid Plate Equals A Rigid Sub-Frame.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696298825
• Maximum Lift: 4.5
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 6 x 6 inches
• Weight: 11.42 POUNDS
