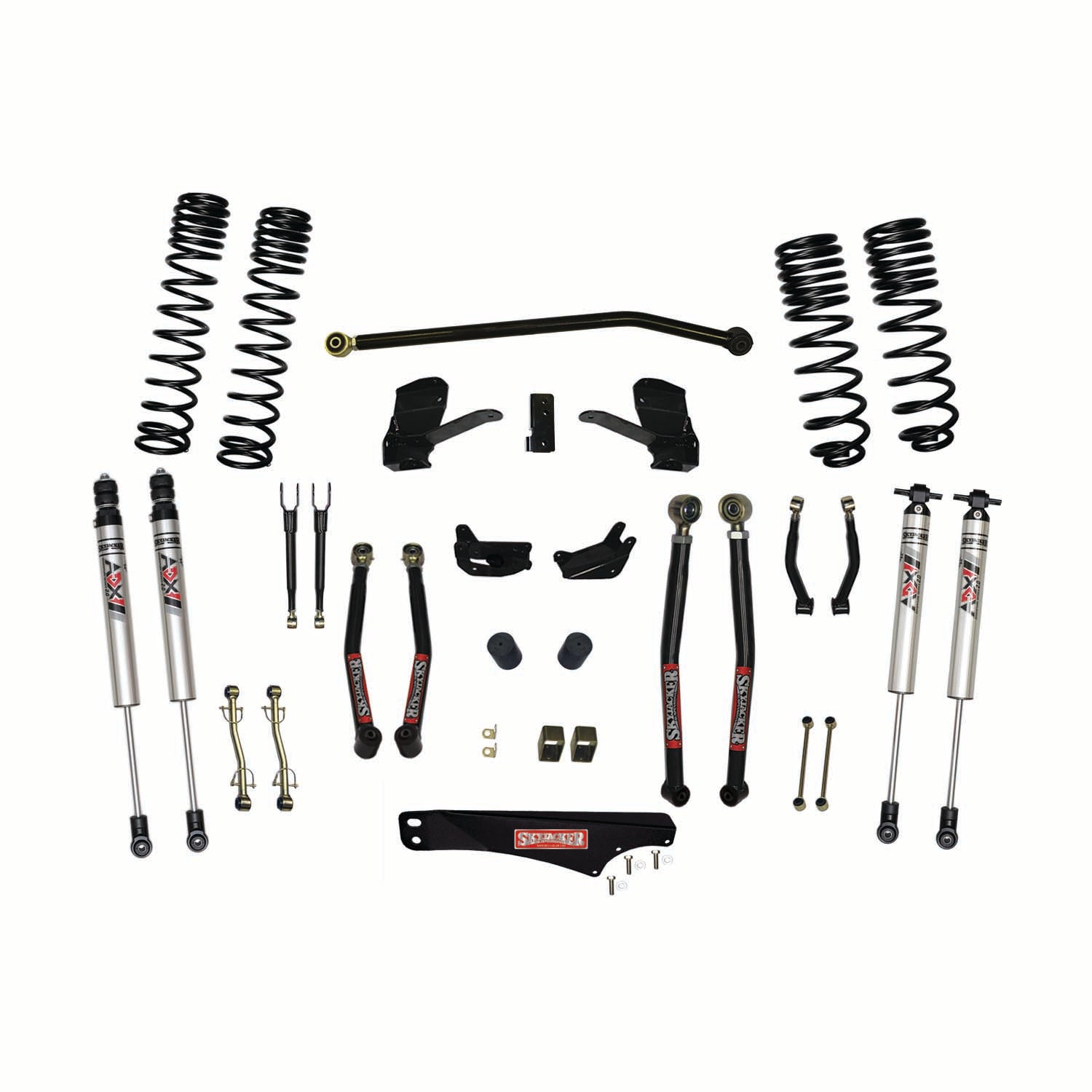

4 In. Long Arm Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

First Flex Rate stage delivers a comfortable ride with the ability to flex/expand during full articulation as the suspension drops (full droop). This keeps the coil springs seated in the upper coil mount/bucket and the tires in contact with the terrain. Second Ride Rate stage only engages after compression past Flex Rate. Front and Rear Lower Control Arm Relocation Brackets make room for Long Arm Value Flex Lower Links. Value Flex Longer Lower Links adjustability allows proper caster settings to improve handling. Formed from 2-in. OD x 0.250 wall DOM tubing with pressed-in OEM style steel encased rubber bushings at the frame and the axle mount has Rock Jock's 1-1/4-in. forged Johnny Joints. These Johnny Joints provide over 30 degrees of unrestricted Flex movement in any direction. Front and Rear Adjustable Upper Control Arms keep in phase with lower links. Replacement Front Adjustable Track Bar includes Skyjacker installed pressed-in HD OEM style rubber bushing and an adjustable 3/4-in. Heavy-Duty Rod End, Jam Nut and Alignment Bushings. Front and Rear Bump Stop Spacers bolt onto the axle bump pads and keep the suspension travel safely in check. Rear Extended Length Sway Bar End Links allow full articulation as the suspension drops (full droop). Rear Track Bar Lower Axle Mount Bracket mounts directly to the rear axle housing to correct the track bar angle. Dana 44 Rear Track Bar Mount Brace strengthens the factory mount that is prone to failure. The track bar bracket and brace create better handling with less side-to-side sway. Shocks are a key link in-between the chassis and the moving parts of your suspension. Their key role is to optimize your suspension by keeping your tires in contact with the terrain. Skyjacker's ADX M2.0 Adventure Series Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system.

• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• More Aggressive Off-Road Stance With Comfort And Stability.
• Track Bar Correction Centers Axle Under Vehicle Properly.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• Aggressive Look. Unparalleled Performance. Impressive Ride.
• Bump Stop Spacers Keep Suspension Travel Safely In Check.
• Consistent Controlled Stability With Smooth Riding Comfort.
• Double Disconnect Sway Bar Links Allow Full Articulation.
• Front / Rear Adjustable UCA Flex In Phase With LCA Links.
• Front / Rear LCA Flex Links With Rock Jock's Johnny Joints.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696301051
• Maximum Lift: 4
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
