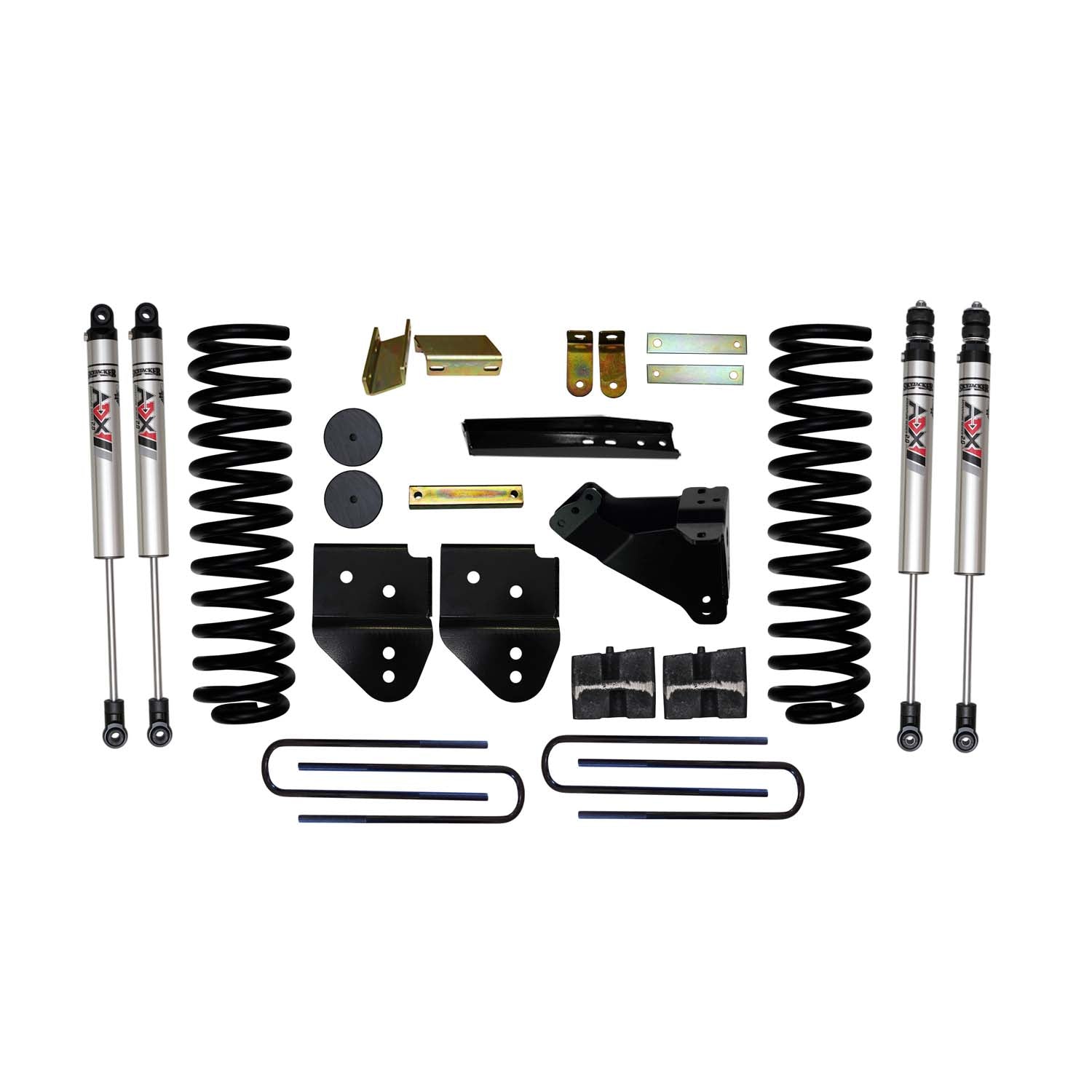

4 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

Mixing work and play, you need taller tires for ground clearance. Raise your ride height and add bigger off-road tires for more ground clearance to conquer larger fields of fun. With Skyjacker's all-in lift kit, you can reap the benefits of On-Road Refinement and Off-Road Readiness. Skyjacker's legendary Softride technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. Skyjacker specifically engineered this Variable Rate Coil Spring for the F-350 Super Duty 4WD Diesel to deliver a smoother ride. Radius arm drop brackets lower the OEM radius arm mounts at the frame to maintain the correct caster specifications for proper alignment. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. A 2-in. rear block and U-bolt kit delivers a more level stance. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever. Together this complete kit maintains the factory geometry angles, alignment specifications and structural strength. Straightforward installation with step-by-step guide. Reap the benefits: On-Road Refinement and Off-Road Readiness.

• 35's Improve Your Off-Road Stance And Gain Ground Clearance.
• Skyjacker Softride Technology Enhanced Spring Performance.
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered.
• Yields More Lift In Front For A More Level Stance.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• Bump Stop Spacers Keep Suspension Travel Safely In Check.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• On And Off-Road Performance With An Effortless Smooth Ride.
• Proper Caster Maintains Factory Handling And Ride Quality.
• Radius Arm Mount Drop Brackets Properly Corrects Caster.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696298610
• Lift Type: Front - Coil Springs
• Maximum Lift: 4
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 6 x 6 inches
• Weight: 25.38 POUNDS
