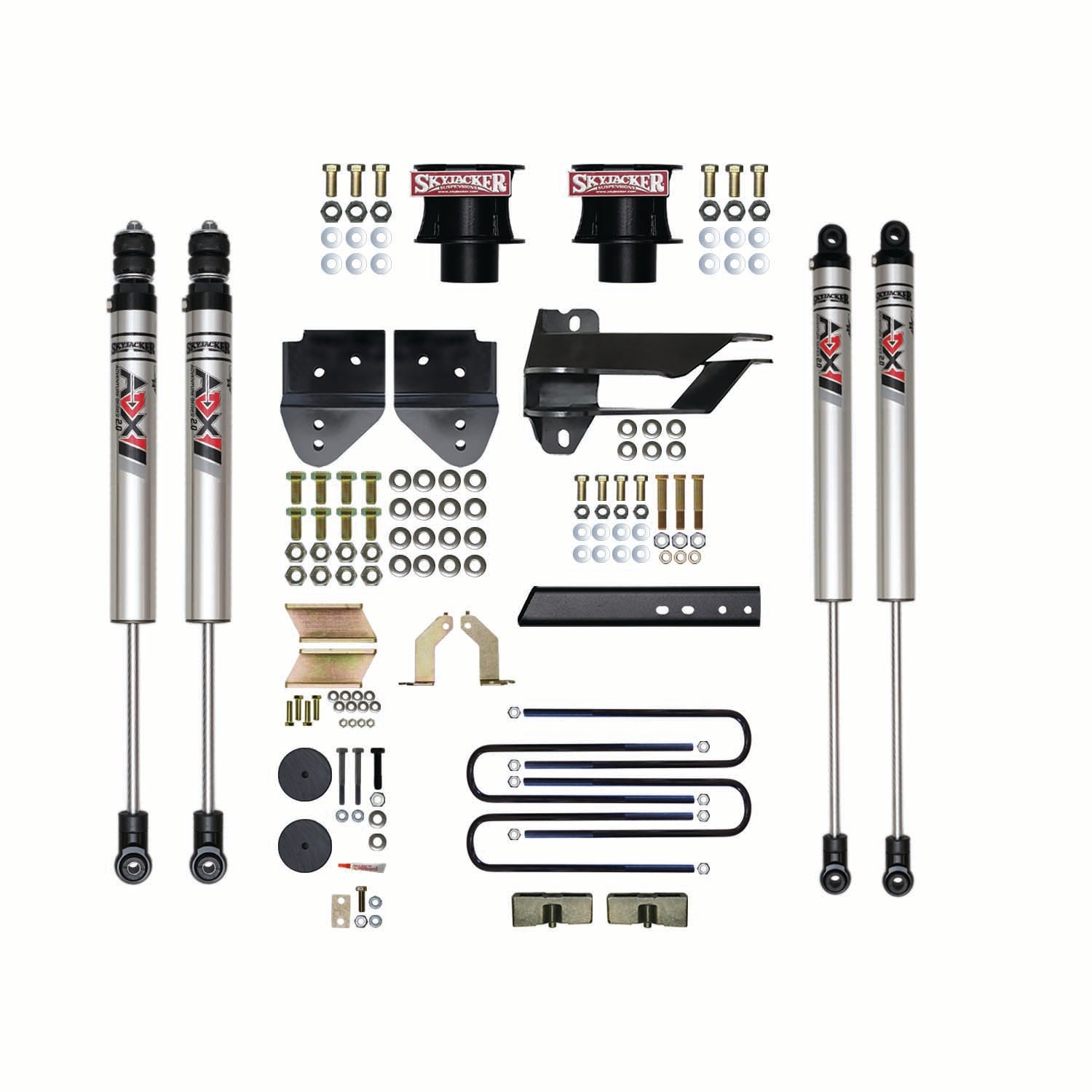

4 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

Raise your Super Duty's suspension clearance with essential room to run 35-in. tires. Those larger tires will gain you ground clearance for a bold ready-for-action stance. Get a great lift height with a smooth reliable ride. Retain your front Ford OEM coil springs by utilizing 1-piece top mount coil spacer. One-piece coil spring spacers bolt into the factory coil spring upper spring tower at the frame. The strong tab-and-slot interlocked design of the 1-piece top mount strut spacers delivers a strong, long lasting product. Precise CNC laser cut and precision formed in CNC press break, there is expert workmanship in every component of the kit. These are powder coated to provide an extremely durable protective barrier to prevent corrosion. Radius arm drop brackets lower the OEM radius arms at the frame to maintain the correct caster specifications for proper alignment. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection A 2-in. rear block and U-bolt kit delivers a more level stance. Together this complete kit maintains the factory geometry angles, alignment specifications and structural strength. Straightforward installation with step-by-step guide. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever.

• 35's Improve Your Off-Road Stance And Gain Ground Clearance.
• Retain OEM Coil Springs with 1-Piece Coil Spacers.
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• Bump Stop Spacers Keep Suspension Travel Safely In Check.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• Proper Caster Maintains Factory Handling And Ride Quality.
• Radius Arm Drop Brackets Properly Corrects Caster.
• Rear Block And U-bolt Kit Delivers a More Level Stance.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696298924
• Lift Type: Front - Coil Springs
• Maximum Lift: 4
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 6 x 6 inches
• Weight: 25.48 POUNDS
