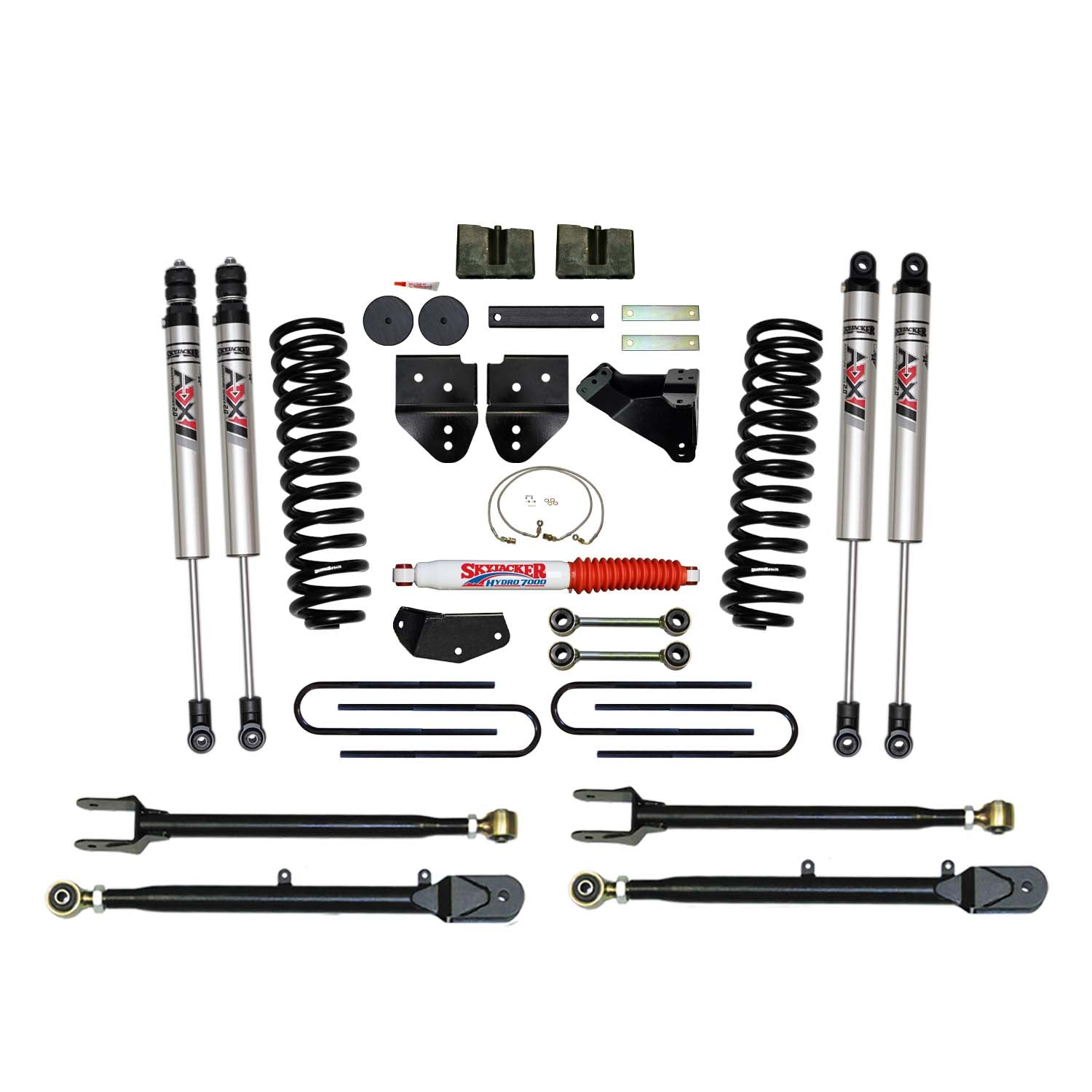

4 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

Skyjacker re-engineered the Super Duty's suspension via an impressive 4-Link Conversion. Replace your OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-in. OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4? forged rod end with steel encased rubber bushing. Drop brackets lower the rear mounts at the frame to maintain the correct caster specifications for proper alignment. Skyjacker's legendary Softride technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. The process starts with 5160H chromium alloy material, an advanced method of shot peening and a presetting process. This takes any fatigue or stress off the spring and eliminates sagging. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. A drop pitman arm corrects steering angle. Front sway bar links realign sway bar. Drop spacers reposition front bump stops. Front brake line brackets and braided stainless steel brake lines correct and reposition the brake lines. A heavy-duty steering stabilizer relocation bracket and Hydro steering stabilizer included. A 3.5-in. rear block and U-bolt kit delivers a more level stance. Carrier bearing lowering kit corrects driveline angles to eliminate driveshaft vibrations. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever.

• 35's Improve Your Off-Road Stance And Gain Ground Clearance.
• Skyjacker Softride Technology Enhanced Spring Performance.
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered.
• Yields More Lift In Front For A More Level Stance.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• Bump Stop Spacers Keep Suspension Travel Safely In Check.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• Increase Travel With Impressive 4-Link Flex Ride Enhancement.
• Proper Caster Maintains Factory Handling And Ride Quality.
• Radius Arm Mount Drop Brackets Properly Corrects Caster.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696300023
• Lift Type: Front - Coil Springs
• Maximum Lift: 4
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 6 x 6 inches
• Weight: 25.38 POUNDS
