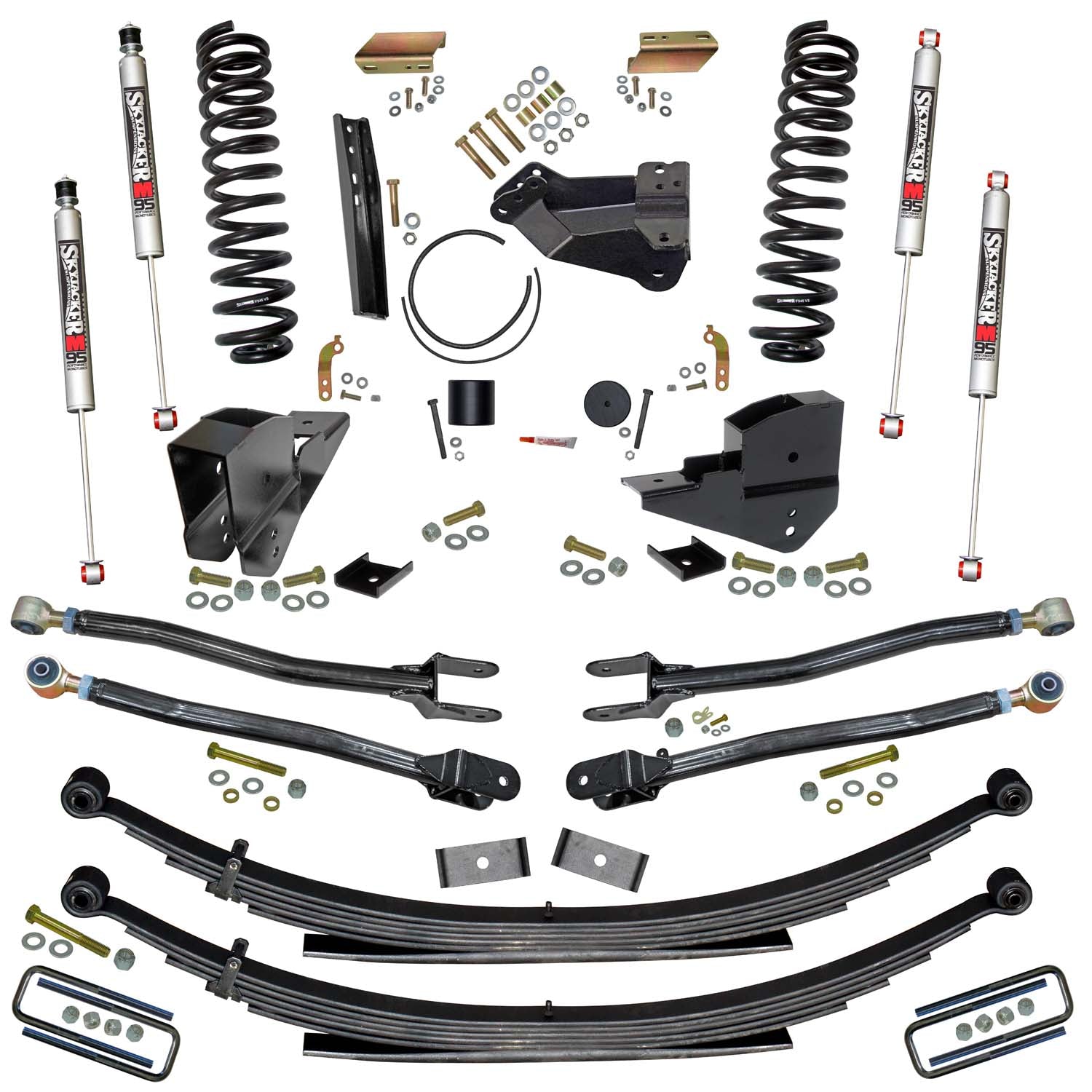

4-Link Conversion And M95 Monotube Shocks.

Skyjacker re-engineered the Super Dutys suspension via an impressive 4-Link Conversion. Replace your OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-inch OD x 0.188 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4 in. forged rod end with Rubber Encased bushing. Skyjacker's legendary Softride(R) technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. Skyjacker specifically engineered this Variable Rate Coil Spring for the F250 4WD Diesel to deliver a smoother ride. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. Skyjacker Softride(R) leaf springs are individually shot-peened with hard steel pellets at very high velocities. Softride(R) springs also have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon(R) wear pads between leafs and bolt style spring clips prevent binding and eliminate friction. Shocks are a key link in-between the chassis and the moving parts of your suspension. Front and Rear damper capacity enhanced with M95 Monotube Shocks. M95 Shocks have specific valving and stroke for this application. The high-pressure nitrogen gas and Internal Floating Piston technology combine to create the quickest responding shock ever.

• 35's Improve Your Off-Road Stance and Gain Ground Clearance.
• Softride® Technology Enhanced Variable Rate Coil Springs.
• Ultra Heavy-Duty Track Bar Bracket Keeps the Axle Centered.
• Yields More Lift in the Front for a More Level Stance.
• Bump Stop Spacers Keep Suspension Travel Safely in Check.
• Increase Travel with Impressive 4-Link Flex Ride Enhancement
• M95 Monotube Has 180 Degrees Directional Mounting.
• M95 Monotube Has Constant Performance to Prevent Lag or Fade.
• M95 Monotube Has Specific Valving / Stroke for this Package.
• M95 Monotube Nitrogen Gas Charged / Single-Tube Construction
• Radius Arm Mount Drop Brackets Properly Corrects Caster.
• Skyjacker Softride® Technology Heightened Leaf Springs.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696289168
• Maximum Lift: 4

Extended Information:

• Country of Origin: United States
• Emissions : 4

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
