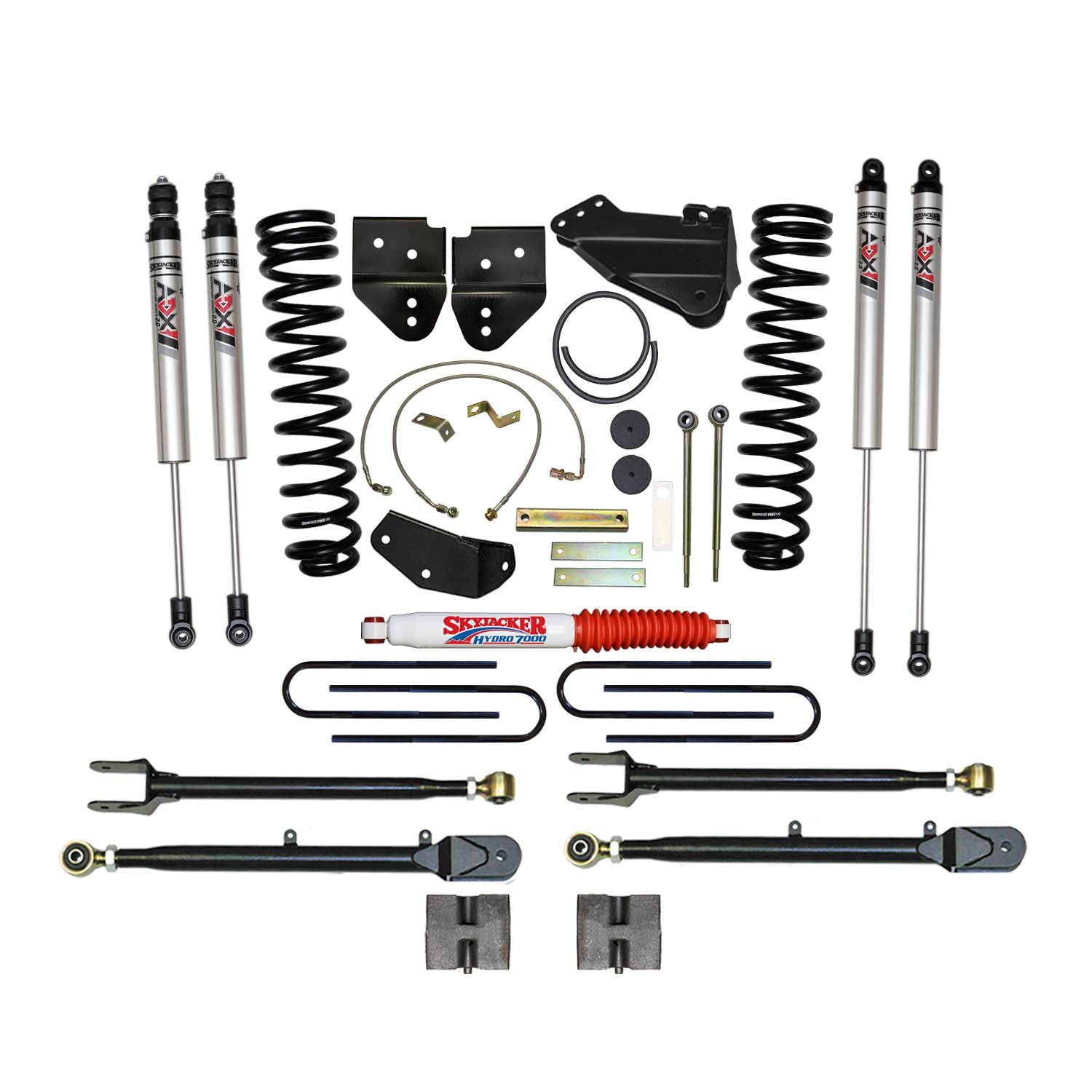

6 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

Specifically engineered for the Super Duty F350 4WD with Gas motors, this cost-effective lift lets you go bigger in a bolder way. Raise it up, add aggressive 36's off-road tires and gain ground clearance to conquer bigger fun in a bold way. Skyjacker's legendary Softride technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. The process starts with 5160H chromium alloy material, an advanced method of shot peening and a presetting process. Compressing the spring completely down to where the coils touch (solid height) is preset. This takes any fatigue or stress off the spring and eliminates sagging. Radius arm drop brackets lower the OEM radius arms mounts at the frame to maintain the correct caster specifications for proper alignment. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. The sway bar links realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line brackets and braided stainless steel brake lines correct and reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. Hydro steering stabilizer included. A 5-in. rear block and U-bolt kit delivers a more level stance. Carrier bearing lowering kit corrects driveline angles to eliminate driveshaft vibrations. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever. Together this complete kit maintains the factory geometry angles, alignment specifications and structural strength.

• 36's Improve Your Off-Road Stance And Gain Ground Clearance.
• Skyjacker Softride Technology Enhanced Spring Performance.
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered.
• Yields More Lift In Front For A More Level Stance.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• Bump Stop Spacers Keep Suspension Travel Safely In Check.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• On And Off-Road Performance With An Effortless Smooth Ride.
• Proper Caster Maintains Factory Handling And Ride Quality.
• Radius Arm Mount Drop Brackets Properly Corrects Caster.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696300146
• Lift Type: Front - Coil Springs
• Maximum Lift: 6
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 6 x 6 inches
• Weight: 25.9 POUNDS
