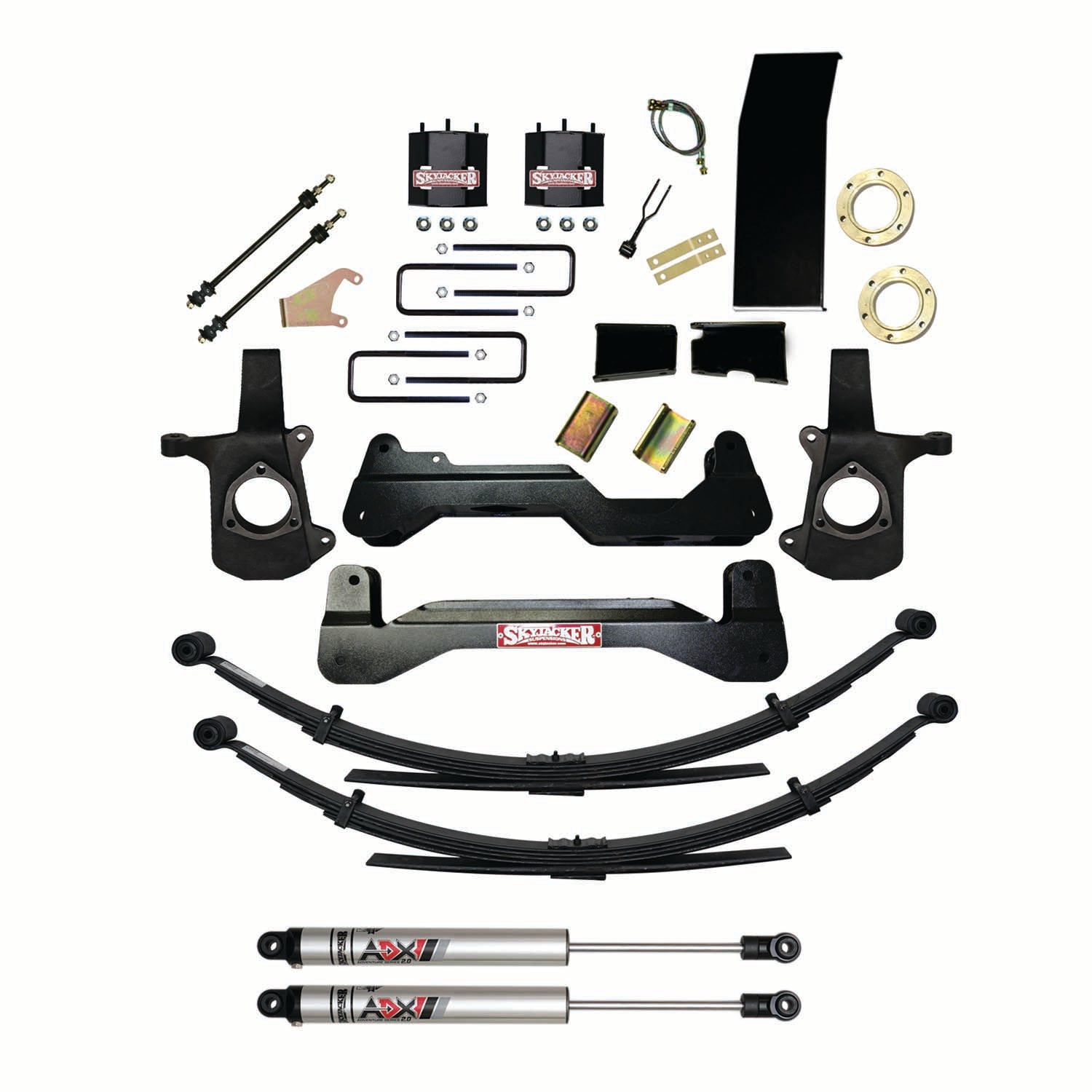

6 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

Give you truck new life with a new lift. Invest in your tried and true GM truck with a proven long lasting suspension lift. Exacting engineered CNC machined ductile iron replacement steering knuckles maintain proper steering geometry through the travel cycle. Precise CNC laser cut and precision formed in CNC press break, sturdy front and rear crossmembers provide a solid mounting point for the OEM lower control arms. A differential skid plate tie the two crossmembers together to create a rigid sub-frame and added protection for vital steering and driveline components. Precise engineered 1-piece strut spacers have a specific ?Pitch and Index' offset to preserve CV extension and to prevent CV axle overextension within the OEM tolerances. CNC machined 6061-T6 Aluminum differential spacers and front CV spacers reposition and correct front CV axles and driveshaft angles. Skyjacker? Softride springs have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon? wear pads between leafs and bolt style spring clips prevent binding and eliminate friction. Softride achieves maximum wheel travel, ride quality with long-lasting life. Rear dampening amazingly enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 offer unmatched shock damping and have specific valving and stroke for this application. ADX M2.0 has an innovative off-road race-inspired full-displaced valving system. Internal Floating Piston (IFP) prevents the gas and oil from mixing or foaming (cavitation). Nitrogen charged with IFP Technology = Quickest Shock Reaction Time Ever. From higher speeds to a slow advance, ADX M2.0 works. Other key components: D.O.T. Certified extended front brake lines, extended rear torque arm link, rear brake line extension brackets and rear extended length OEM sway bar links.

• 1-Piece Top Strut Spacers Have A Specific Pitch / Index Offset.
• Specifically Engineered To Maintain Proper Suspension Geometry.
• Struts Remain Assembled. No Coil Spring Compressor Needed.
• Works With OEM Electronic Stability Control (ESC) System.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• Built-In Camber Correction And Optimized Ball Joint Angles.
• Delivers A Quicker Response To Terrain And Improved Handling.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• Precise CNC Machined Ductile Iron Steering Knuckles.
• Skyjacker Softride Technology Enhanced Spring Performance.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696298191
• Lift Type: Front - Coil Springs
• Maximum Lift: 6
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 6 x 6 inches
• Weight: 11.7 POUNDS
