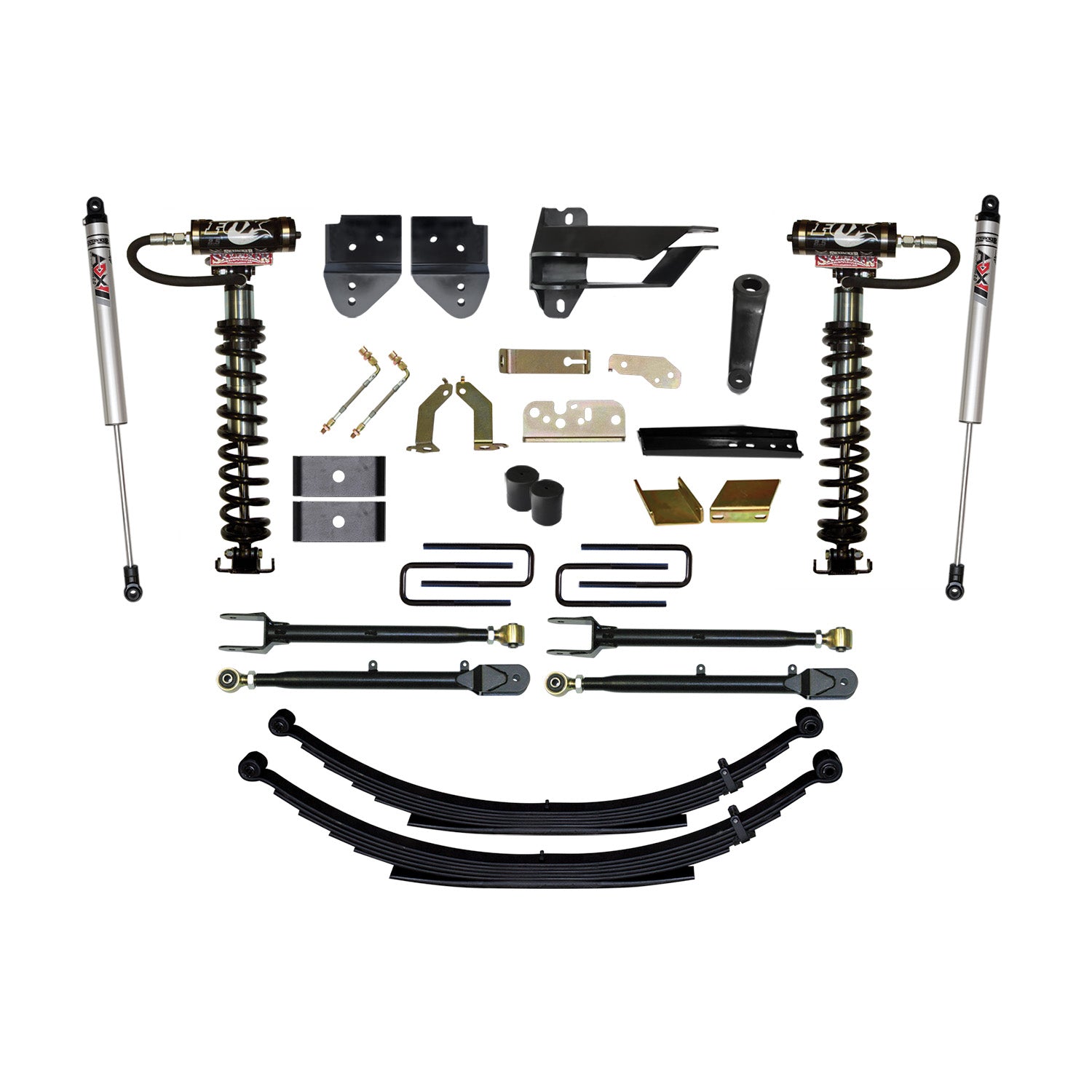

6 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

Skyjacker re-engineered the Super Duty's suspension via an impressive highest-level front 4-Link Conversion with ADX 2.5 Factory Series Coilover Reservoir shocks. Formed from 2-in. OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4 in. forged rod end with RB style rubber bushing. You are replacing the OEM coil spring / shock set-up with a peak of perfection coilover shock assembly with mounting brackets. The upper mount / reservoir mount bracket bolts into the OEM coil spring bucket location. The lower mount into the coil spring seat location. ADX 2.5 Factory Series Coilover Reservoir shocks deliver incredible performance and precise controlled dampening. Specifically engineered and performance tuned for this ride height and vehicle weight with fine tune ride height adjustability. Massive 2.5 in. Smooth bore and honed seamless, 6061-T6 hard-anodized, high flow aluminum piston, 7/8 in. hardened Nitro Steel? Steel carbon shaft, greater fluid capacity with numerous other high end details. Softride Technology leaf springs have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon? wear pads between leafs and bolt style spring clips prevent binding and eliminate friction. Paired with ADX M2.0 Adventure Series Aluminum Monotube Shocks for optimal damping control. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever. Together this complete kit maintains the factory geometry angles, alignment specifications and structural strength. Reap the benefits: On-Road Refinement and Off-Road Readiness.

• ADX 2.5 Coilover Precision Control And Race-Proven Performance.
• Skyjacker Softride Technology Heightened Leaf Springs.
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered.
• Visible Upgrade. Bold Aggressive Look. Impressive Ride.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• Bump Stop Spacers Keep Suspension Travel Safely In Check.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• Increase Travel With Impressive 4-Link Flex Ride Enhancement.
• Quicker Response to Terrain with Outstanding Ride Quality.
• Skyjacker Softride Technology Enhanced Spring Performance.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696299112
• Maximum Lift: 6
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 6 x 6 inches
• Weight: 12.54 POUNDS
