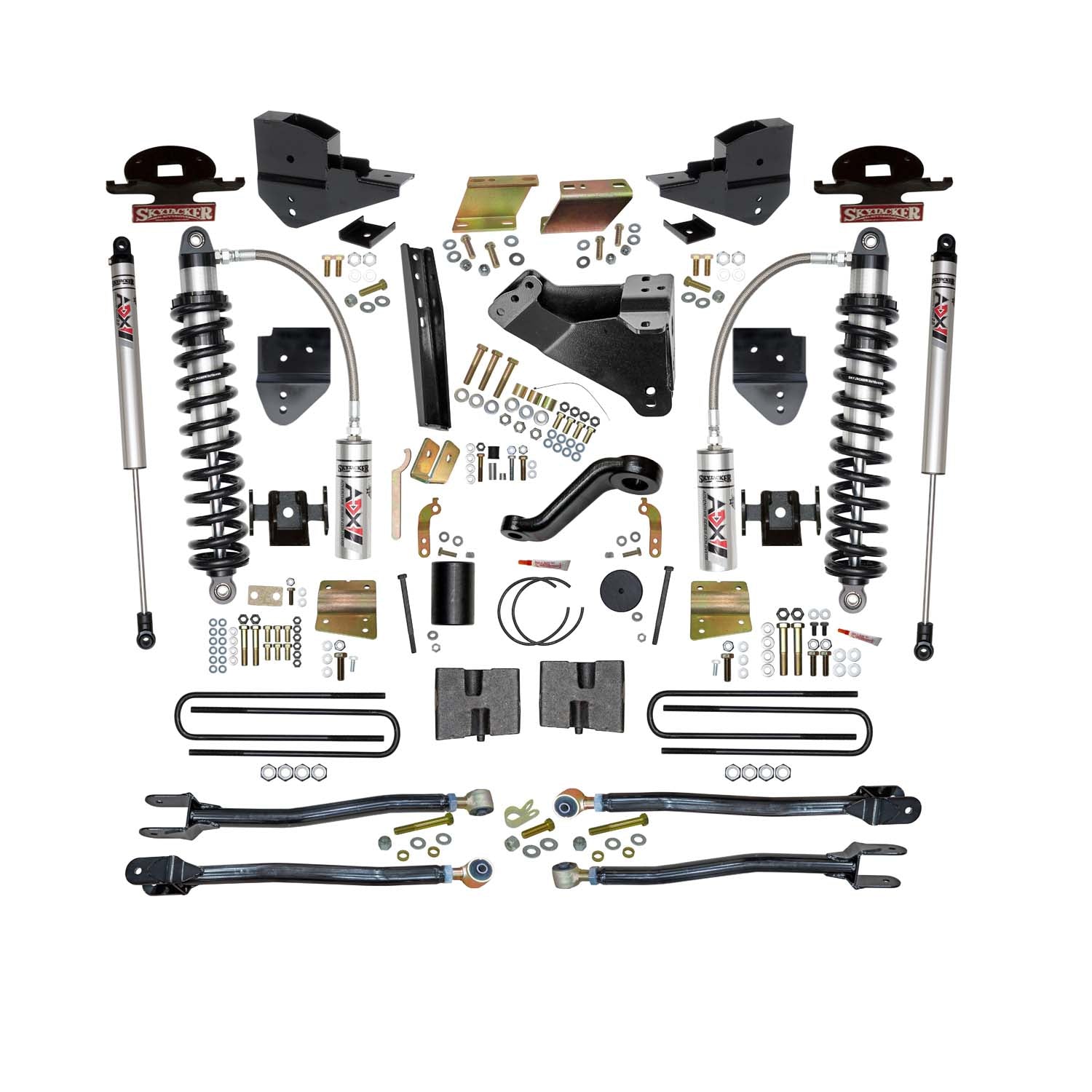

6 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

If you think that your Ford looks equally good clean as it does covered in off-road grime. You need to take your Super Duty to the next level. With Skyjacker's Coilover 6 in. lift kit, you can reap the benefits of On-Road Refinement and Off-Road Readiness. 2.5-in. OD ADX 2.5 Adventure Series Aluminum Coilover Shocks with remote reservoir includes Skyjacker's legendary Softride coil spring technology engineered to deliver a quiet consistent controlled stability and smooth riding comfort. Precise CNC laser cut and precision formed in CNC press brake, all bracketry for coilover shock / reservoir mounts connect to / around OEM mounts. Formed from 2-in. OD x 0.188 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4? forged rod end with Rubber Encased bushing. Radius arm drop brackets lower the OEM radius arms mounts at the frame to maintain the correct caster specifications for proper alignment. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. A 4.5-in. rear block and U-bolt kit delivers a more level stance. Shocks are a key link in-between the chassis and the moving parts of your suspension. ADX M2.0 Adventure Series Aluminum Monotube Shocks has an innovative off-road race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever.

• 37's Improve Your Off-Road Stance And Gain Ground Clearance.
• Increase Travel With Impressive 4-Link Flex Ride Enhancement.
• Internal Floating Piston (IFP).
• Skyjacker Softride Technology Enhanced Spring Performance.
• 6061-T6 Hard Anodized CNC Machined Polished Aluminum Body.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• Aluminum Body Dissipates Heat Up To 30% Faster Than Steel Body.
• Coilover Conversion Achieves Quicker Reaction to Terrain.
• Full Displaced Valve System To Maximize On And Offroad Handling.
• IFP Separates Oil From Gas To Eliminate Cavitation And Fade.
• IFP Technology Provides Quickest Shock Reaction Time Ever.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696299419
• Lift Type: Front - Coil Springs
• Maximum Lift: 6
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 6 x 6 inches
• Weight: 12.54 POUNDS
