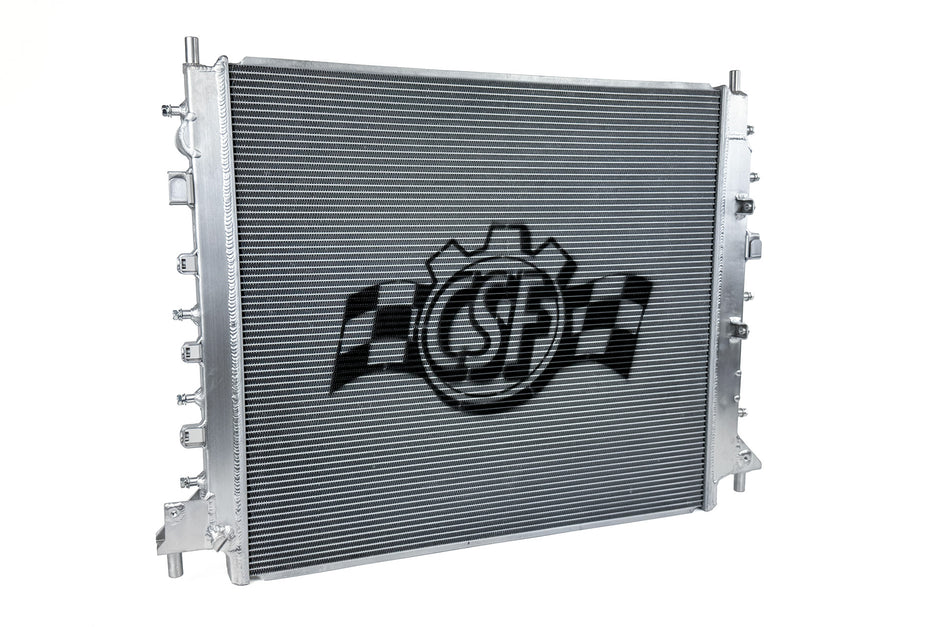

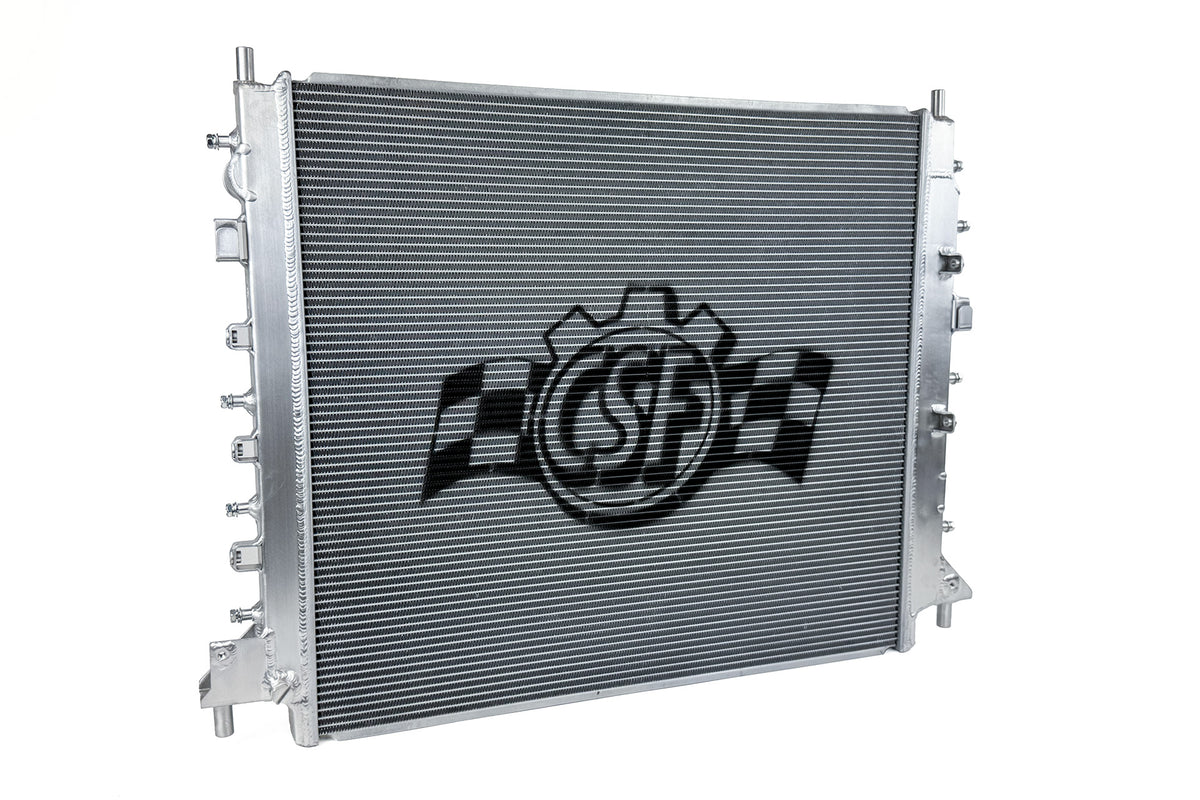

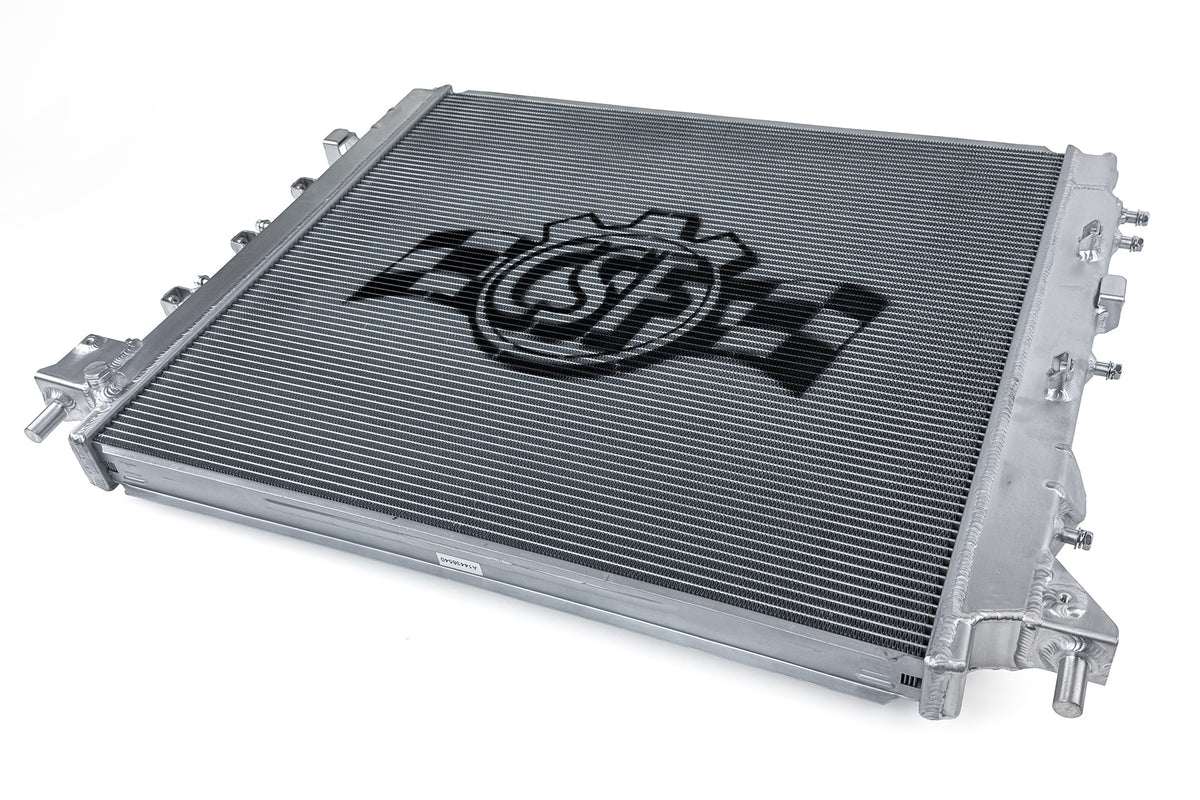

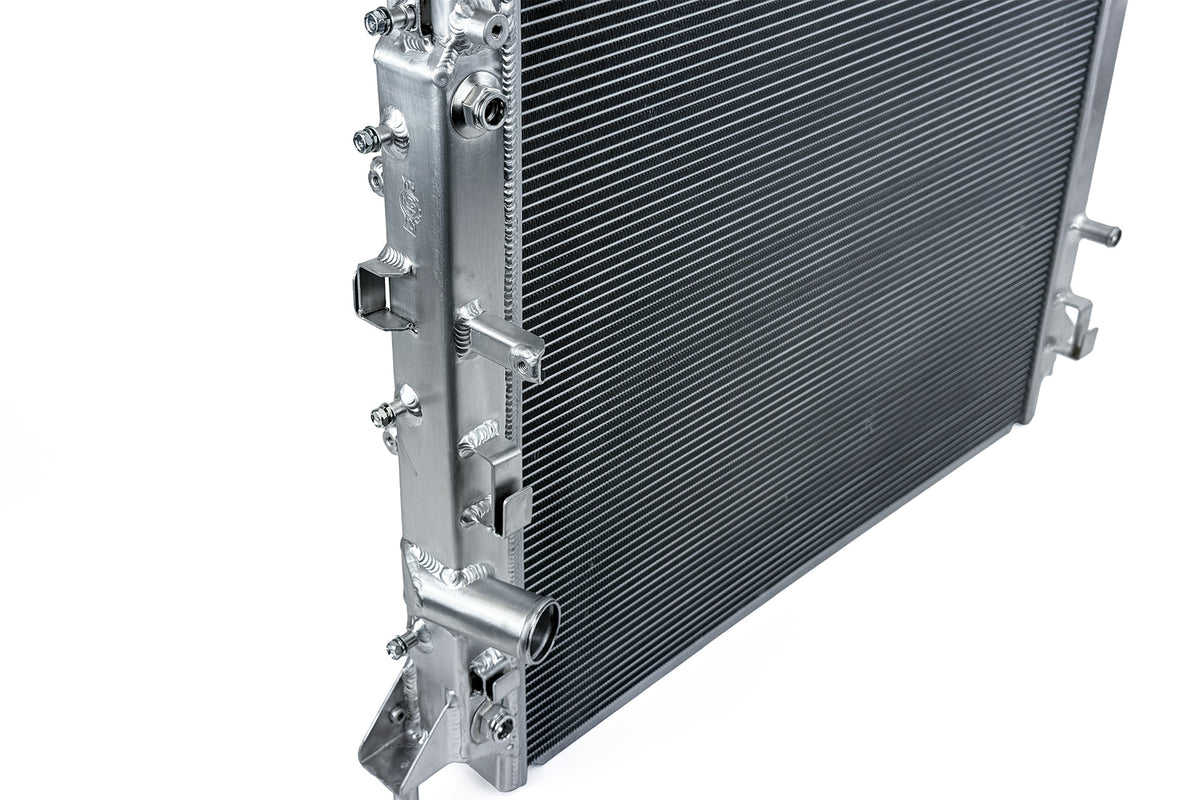

6th Gen Camaro LT1/SS/ZL1 & 3rd Gen CTS-V High-Performance All-Aluminum Radiator

CSF designed these Radiators to easily replace the OEM unit. The Plug-and-Play "Drop-in Fit" installation means all the factory shrouds and brackets will line up and bolt on perfectly. This includes the Engine Oil Cooler on the left-hand side as well as the A/C Condenser on the front.

• 2-Row - 42mm Ultra-High-Performance Core
• 2-Year Limited Warranty
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• Integrated 4-plate transmission oil cooler in the driver side tank
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet Connections
• 100% All Aluminum TIG-Welded Construction
• Satin Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353072493
• ADD-ON: 8207
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 575mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 42mm
• Core Width: 524mm
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Satin
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 35mm
• Inlet Location: Top Right
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: Yes
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 35mm
• Outlet Location: Bottom Left
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: Indonesia
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 32 x 26 x 7 inches
• Weight: 21 POUNDS
