ICON Finned Reservoir Upgrade Kit 7.5" Long

Continuing ICON Vehicle Dynamics' commitment to innovation and performance, the 2.5 Series Finned Reservoir Upgrade Kit delivers both functional and aesthetic enhancements for ICON 2.5 Series and 3.0 Series piggyback and remote reservoir shocks. Featuring a finned reservoir design and included dovetail reservoir mounting rails, this upgrade provides a cleaner, more refined reservoir mounting without need for traditional hose clamps, while also significantly improving cooling performance. With a 115% increase in surface area over standard reservoirs, heat is dissipated more efficiently, allowing shocks to maintain consistent damping performance during prolonged, high-demand off-road use. This added cooling capacity is especially beneficial for ICON CDCV, CDXS, and CDEV shocks, where heat is generated in both the shock body and reservoir. The finned design also increases reservoir rigidity and improves resistance to rock and debris impacts. By incorporating a slightly larger outside diameter, the fins absorb potential trail damage while helping protect the critical inner sealing surface from deformation. Installation is performed during a shock rebuild, and each upgrade kit includes a pair of 7.5” finned reservoirs, dovetail reservoir mounting rails and clamps, and all necessary hardware for installation.

• Upgrades ICON 2.5 Series and 3.0 Series piggyback and remote reservoir shocks
• 2.5” diameter, 7.5” long finned reservoirs with laser etched ICON logos
• 115% increase in reservoir surface area for improved cooling
• Helps maintain consistent damping during extended off-road use
• Ideal for ICON CDCV, CDXS, and CDEV shock absorbers
• Increased reservoir rigidity improves dent resistance

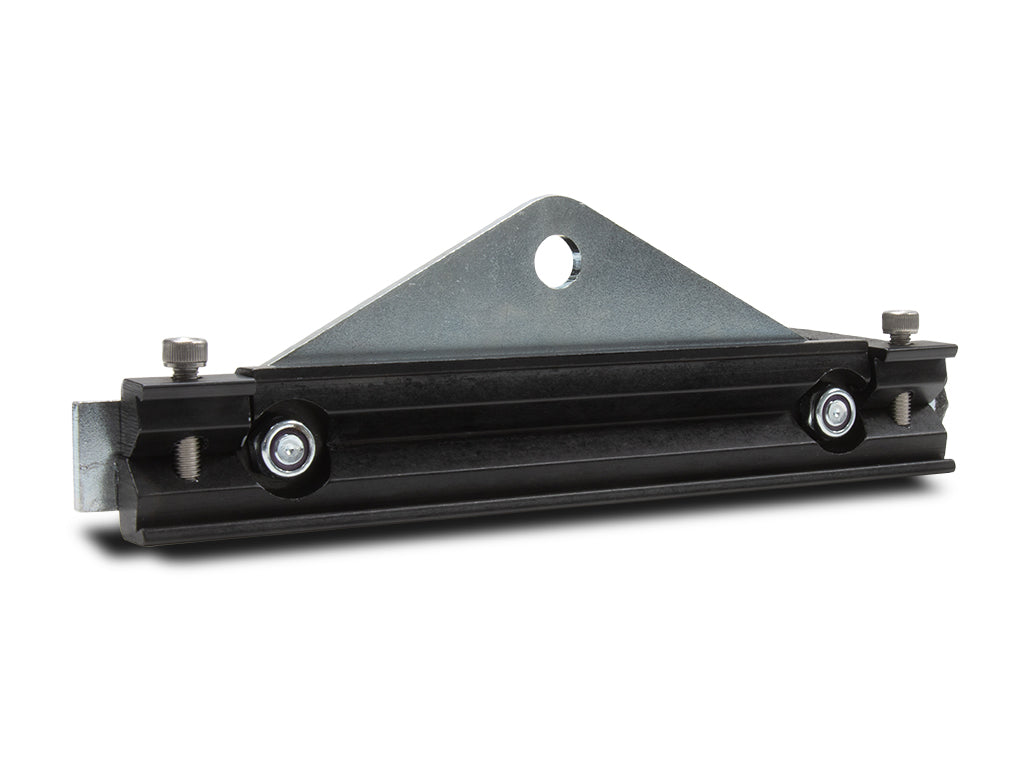

• Includes billet dovetail reservoir mounting rails for a clean, secure installation, and a free-floating appearance

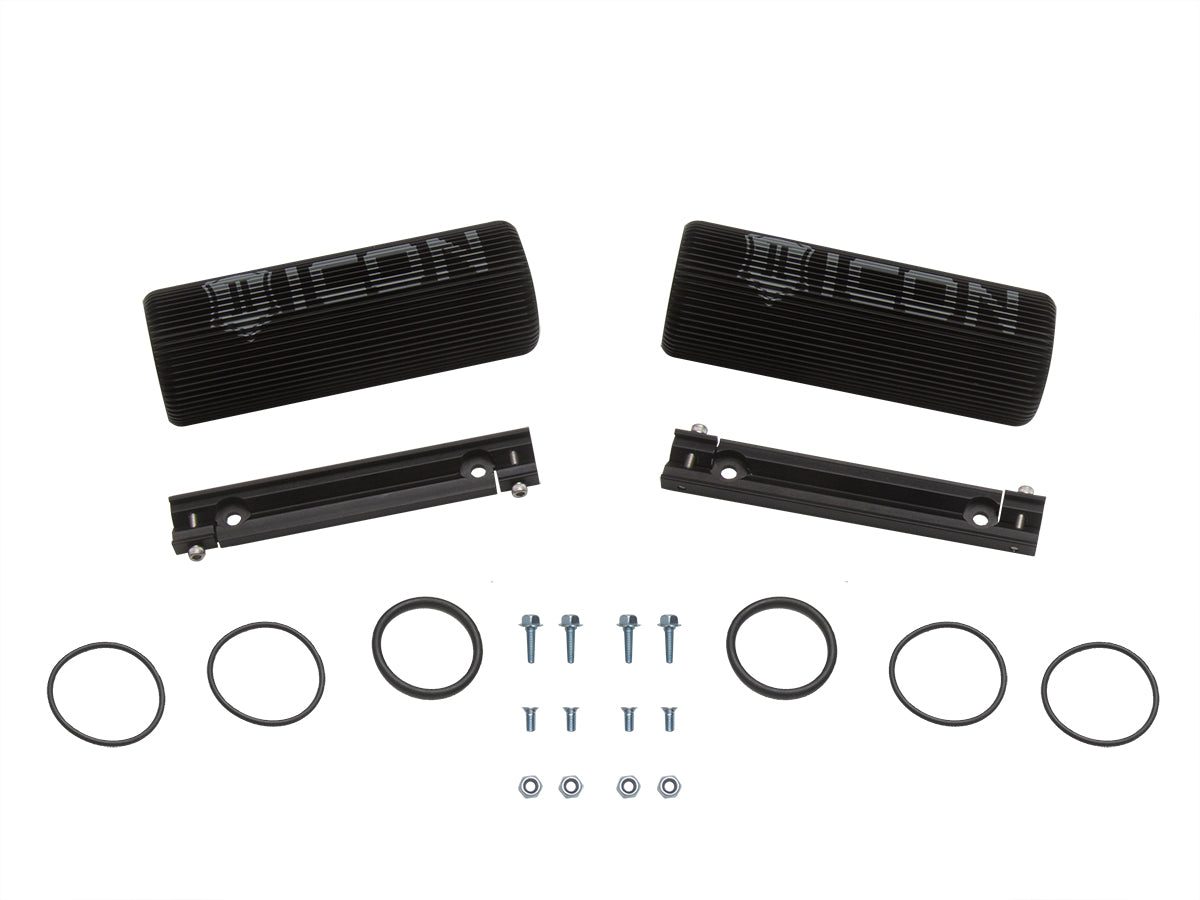

• Complete kit includes two 7.5" finned reservoirs, mounting hardware, and reservoir seals

Vehicle Specific

• ICON 7.5" FINNED RESI UPGRADE KIT

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103400129
• 10: Aluminum
• 66: 7.5
• 3390: Performance
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• California Prop 65 Warning: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 10.0000 x 10.0000 x 4.0000 inches
• Weight: 8.0000 POUNDS
