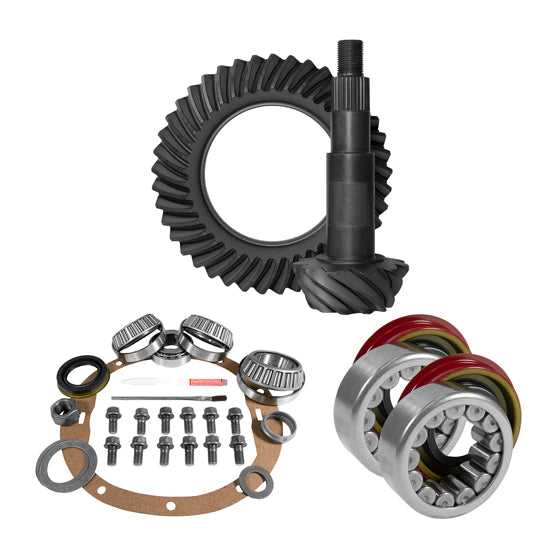

8.5" GM 3.73 Rear Ring & Pinion Install Kit Axle Bearings 1.78" Case Journal

USA Standard Gear Ring Gear & Installation Kits are an easy way to re-gear an axle with one simple part number. The kits package a ring and pinion set with an installation kit. USA Standard Gear employs rigorous in-house quality testing and inspections to ensure its gears pass dimensional, material, and fitment testing. Available in a wide variety of OEM and aftermarket ratios, USA Standard Gear ring and pinion sets are ready to withstand the rigors of everyday commuting, trail running, and all types of spirited driving.

• This particular kit contains a 3.73 Ring & Pinion Gear Set
• For Applications with 10 Bolt Rear Cover and 10 Bolt Ring Gear
• Includes LM102949/ LM102911 Carrier Bearing and Race with 1.781" Inside Diameter and 2.891" Outside Diameter
• Quick Kits feature USA Standard ring and pinion gear set, Master Install kit with high quality Koyo bearings and the necessary small parts required to get vehicles off the lift and back on the road quickly.
• Quick Kits provide a one-stop shopping experience that allows you to easily find the correct parts for common differential repairs at an affordable price.
• The Gear and Install Kit Includes Axle Bearings & Seals
• The Ring Gear Diameter is 8.5"
• USA Standard Quick Kits provide four convenient differential repair packages to save time and money by including everything you need in one simple part number.

Attributes:

• Brand Name: USA Standard Gear
• GTIN: 00883584107187
• 3390: Regular
• AAP Selling Package Quantity: 1
• AAP Selling Package Quantity UOM: EA
• AAP_UDA_4: 85

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 20.0000 x 14.0000 x 12.0000 inches
• Weight: 25.7200 POUNDS
